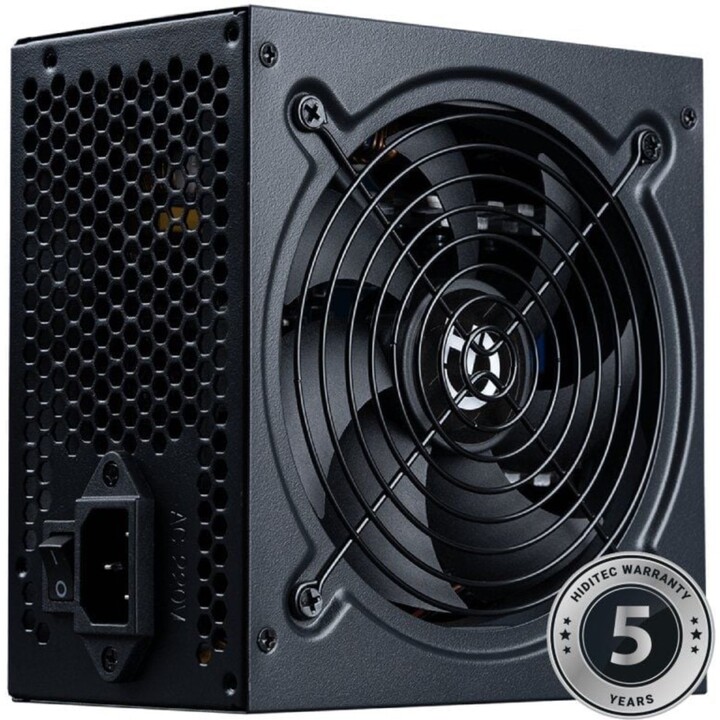

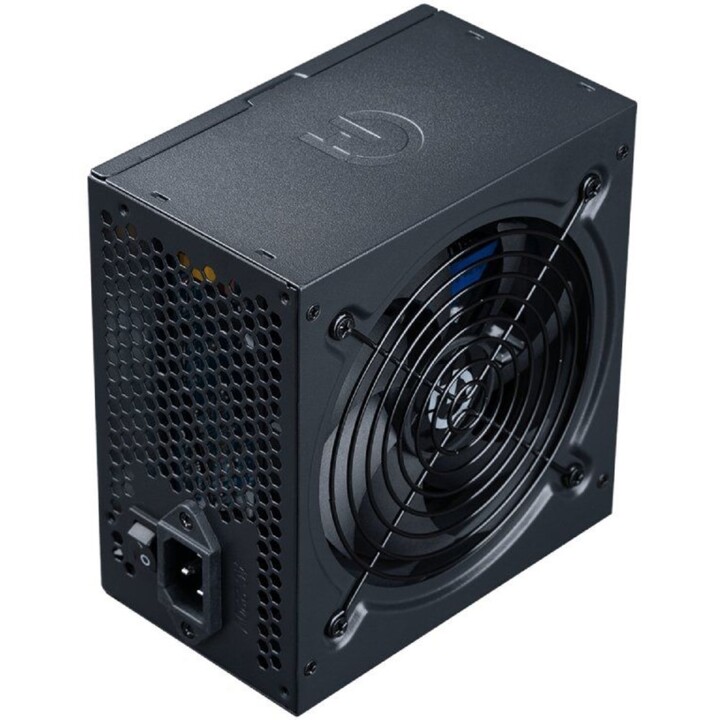

Hiditec RL550/ 550W/ Fan 14cm/ 80 Plus Bronze Power Supply

high output power

The RL series has an 80PLUS BRONZE certificate and top quality components prepared to supply stable and quality energy in high performance equipment.

It incorporates an ultra-quiet 120mm fan to provide greater airflow inside.

80Plus Bronze Certified

RL power supplies have the 80PLUS BRONZE certificate, which guarantees an efficiency greater than 85% as well as lower consumption and greater durability of all components.

Heat emissions will be reduced with more efficient operation, allowing the fan to work at a lower speed and consequently, the noise produced by the source will be practically imperceptible.

It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

high performance capacitors

The RL series is manufactured with high-performance capacitors to offer maximum reliability and durability under the most demanding conditions.

The RL range offers a durability of more than 100,000 operating hours.

Compatible with the range of Intel® Haswell™ processors that set new standards in terms of energy efficiency by reducing their CPU power consumption to only 0.05A, requiring the PSU to maintain a stable voltage at low power.

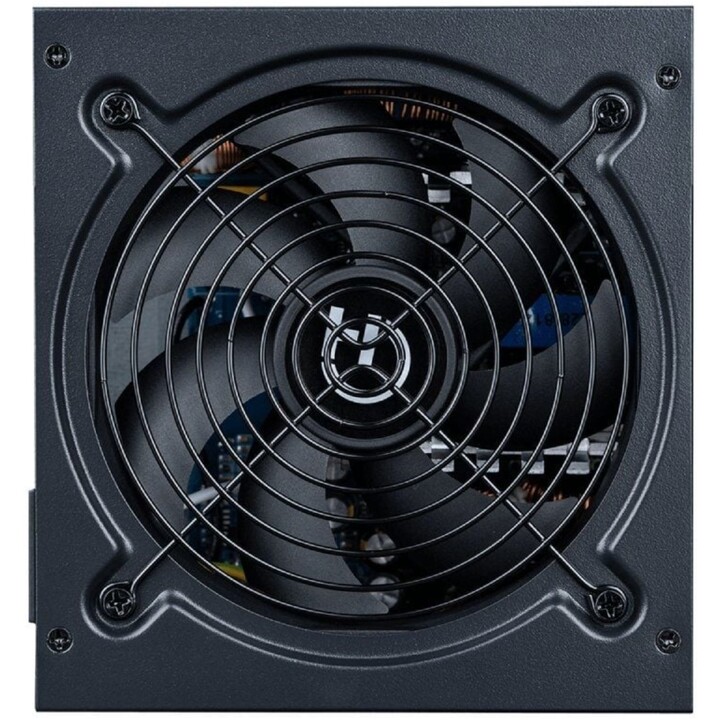

Ultra-quiet 120mm fan

The RL series has an ultra-quiet 120mm fan that will allow a greater flow of air inside.

The 120mm fan provides greater air flow running at lower revolutions, so in addition to making fan noise practically imperceptible, we will achieve greater efficiency and durability of all the components.

Extra long ribbon cables

Extra-long flat cables, which will allow a better adaptation to the installation of any equipment, make a more orderly installation and take up less space, as well as offering excellent safety and durability.

With a new exterior design and completely lacquered in black, the RL power supplies have a more robust finish.

5 Year Warranty

The RL series offers reliability and durability backed by a 5-year warranty, backed by the HIDITEC technical support team.

SPECS

• TYPE
• ATX 12V v2.4 with Active PFC
• POWER
• 550W
• INPUT POWER
• 230Vac-Frequency 50/60 Hz
• PFC
• Active
• OUTPUT POWER
• +3.3V : 20A
• +5V : 20A
• +12V : 45A
• -12V : 0.5A
• +5VSB : 3.0A
• OUTPUT CONNECTIONS
• 1 x 20/24pin MB
• 4 x SATA
• 3 x MOLEX
• 1 x 12V 8pin CPU
• 2 x 6+2pin PCIe
• 1 x FDD
• REFRIGERATION
• Ultra-quiet 120mm fan
• DURABILITY
• >100,000 hours
• PROTECTIONS
• Overloads, surges and drops in voltage.
• It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.
• DIMENSIONS
• 150mm x 85mm x 140mm
• WEIGHT
• 1750 grams
• ADDITIONAL FEATURES
• 80 Plus Bronze Certified
• Active PFC
• flat cables
• CERTIFICATES
• 80 Plus Bronze, CE, RoHs
