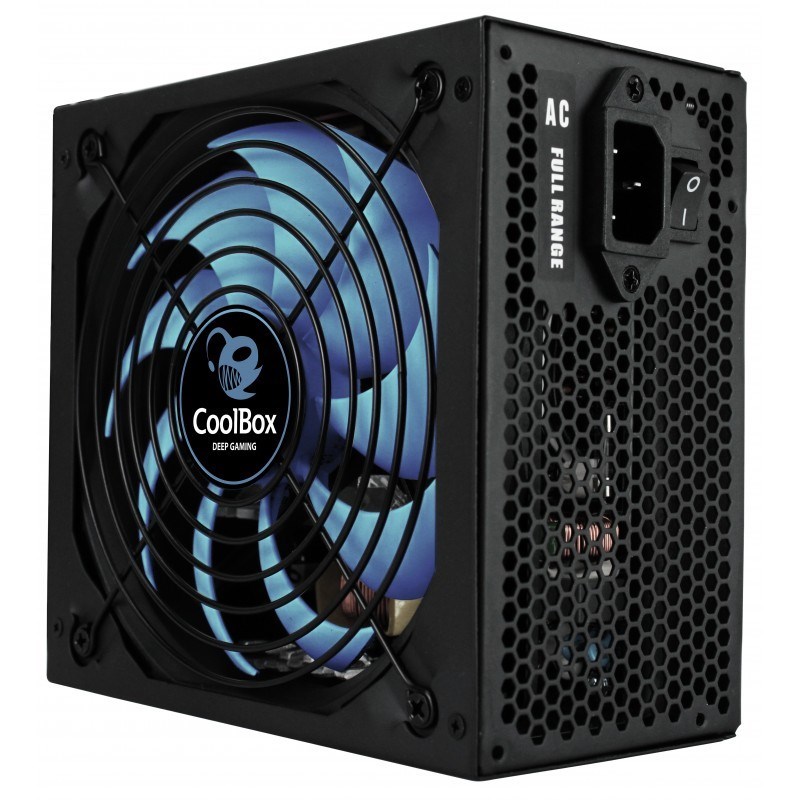

Power Supply 650W Deeppower Br-650 80+ Bronze

Environmental conditions
Operating temperature range —> 0 – 40 °C

Technical details
Cables included —> Alternating current

Weight and measurements
Weight —> 2.1kg

regulatory approvals
80 PLUS Certification —> 80 PLUS Bronze
RoHS compliant —> Yes
Certification —> CE, WEEE

Packaging
Packaging type —> Box

energy control
Total Power —> 650W
AC input voltage —> 100 – 240
AC input frequency —> 50 – 60
Maximum input current (@110V) —> 8 A
Maximum input current (@220V) —> 4 A
Power factor correction type (PFC) —> Active
Combined Power (3.3V) —> 115W
Combined Power (+12V) —> 528W
Combined Power (+5V) —> 115W
Combined Power (-12V) —> 6W
Combined power (+5 VSB) —> 12.5 W
Maximum output current (+3.3V) —> 18 A
Maximum output current (+12 V1) —> 22 A
Maximum output current (+12 V2) —> 22 A
Maximum output current (+5V) —> 18 A
Maximum output current (-12V) —> 0.5A
Maximum output current (+5Vsb) —> 2.5 A
Power Good signal delay margin —> 100 – 500 ms
Hold time —> 17ms
Power protection functions —> Over voltage, Over voltage, Short circuit, Under voltage
Efficiency —> 85%

cooling
Fan diameter —> 14 cm
Cooling Type —> Active
Number of fans —> 1 Fan(s)
Fan Location —> Top

Packaging content
User Manual —> Yes

Ports and Interfaces
Power supply for motherboard —> 20+4 pin ATX
Number of SATA power connectors —> 4
Power connectors (4 pin) peripheral (Molex) —> 4
PCI Express power connectors (6 + 2 pin) —> 1
CPU power connector (4 +4 pins) —> Yes
Floppy Drive Connector —> Yes
floppy power connector —> 1
PCI Express Connector —> Yes

Design
Product Color —> Black

Performance
Use with —> PC/Server
Power Supply (PSU) Form Factor —> ATX
ATX Version —> 2.31
Noise level —> 25dB
Integrated on/off switch —> Yes
Mean time between failures —> 100000 h
