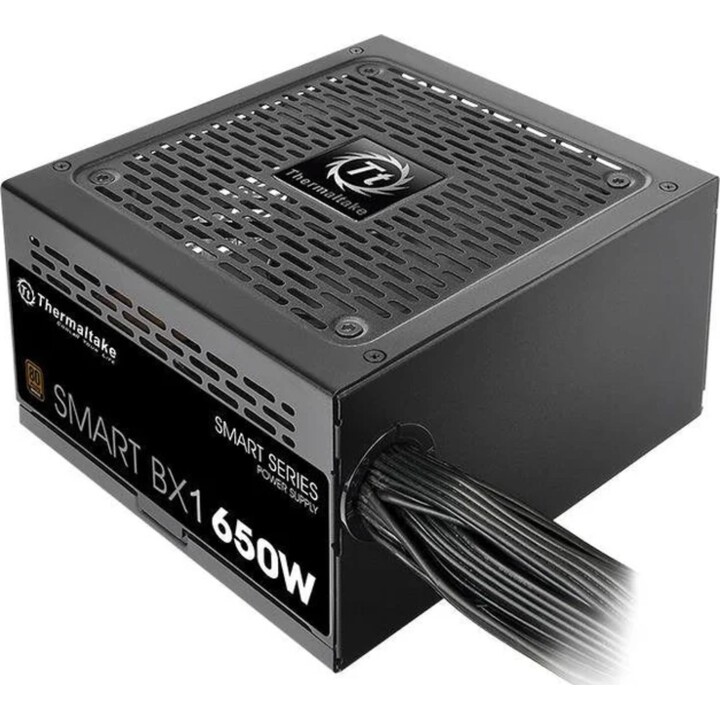

Thermaltake Smart BX1 650W 80 Plus Bronze Power Supply

Description

Thermaltake Smart BX1 Power Supply Unit 650W 24-pin ATX Black

Thermaltake Smart BX1, 650 W, 100 - 240 V, 80 W, 50 - 60 Hz, 12 A, Active

Energy control

• Total power:?650 W
• Maximum power:?80 W
• AC input voltage:±100 - 240 V
• AC input frequency:?50 - 60 Hz
• Input current:±12 A
• Power factor correction type (PFC):Active
• Combined power (3.3 V):±110 W
• Combined power (+12 V):?576 W
• Combined power (+5 V):±110 W
• Combined power (-12V):?6 W
• Combined power (+5 VSB):±12.5 W
• Maximum output current (+3.3V):?23 A
• Maximum output current (+12V):?48 A
• Maximum output current (+5V):±17 A
• Maximum output current (-12V):?0.5 A
• Maximum output current (+5Vsb):?2.5 A

Ports and Interfaces

• Motherboard power supply:?24-pin ATX
• Motherboard power cable length:±60 cm
• Number of SATA power connectors:?6
• SATA power cable length:±150,500 mm
• Peripheral power connectors (4 pin) (Molex):?4
• Peripheral power cable length (Molex):±150,500 mm
• PCI Express Power Connectors (6 + 2 pin):?2
• PCI Express power cable length:?50 cm
• CPU power connector (4 + 4 pins):?Yes
• CPU power cable length:±1 mm
• PCI Express Connector:?Yes
• Wiring type:?Non-modular

Performance

• 80 PLUS Certification:?80 PLUS Bronze
• Use with: PC
• Power supply unit (PSU) form factor:ATX
• ATX version:?2.3
• EPS Version:?2.92
• Mean time between failures:±100,000 h

Design

• Product color:?Black
• Cooling type:Active
• Fan diameter:±12 cm
• Number of fans:±1 Fan(s)
• Integrated on/off switch:?Yes

Environmental conditions

• Operating temperature range:?5 - 40°C
• Storage temperature range:?-40 - 55 °C
• Relative humidity range for operation:?20 - 85%
• Relative humidity range during storage:±10 - 95%

Package contents

• Cables included:°CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Weight and dimensions

• Width:±150 mm
• Depth:±140 mm
• Height:?86 mm

?
