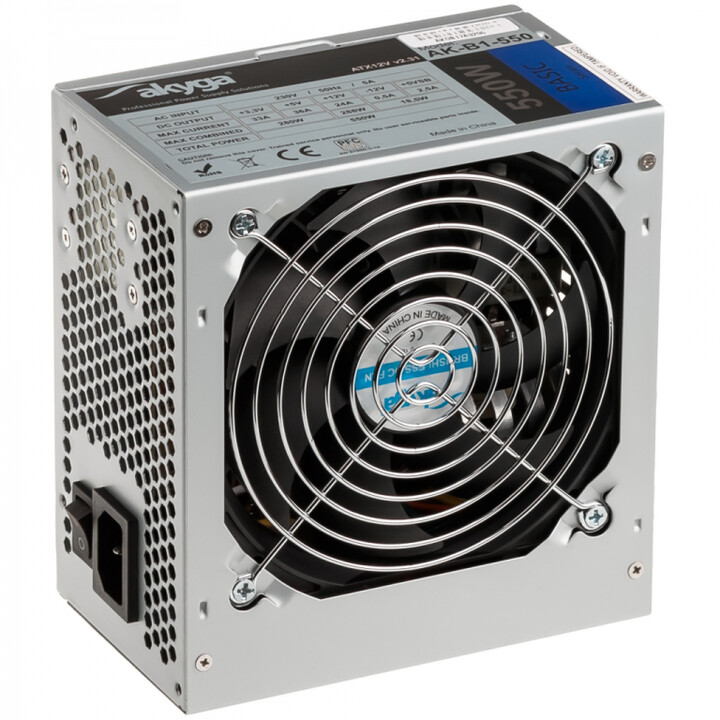

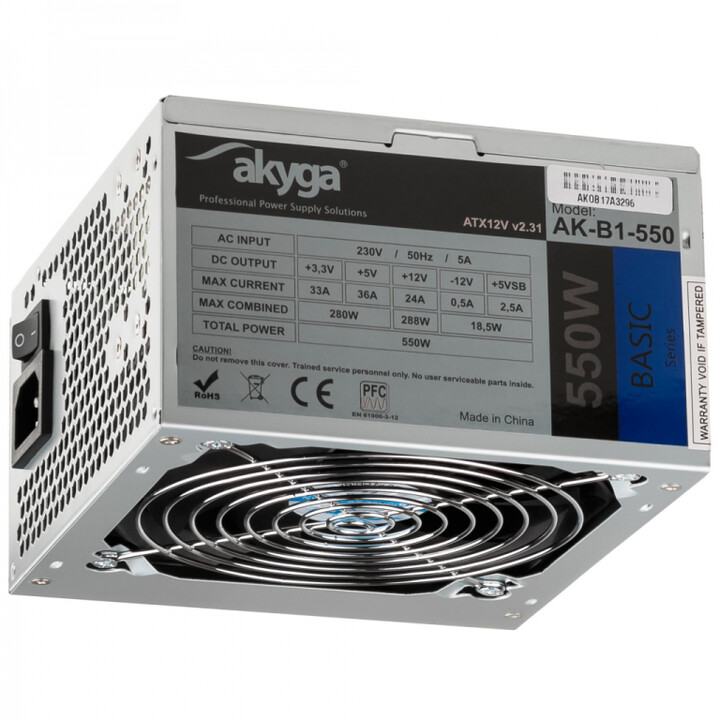

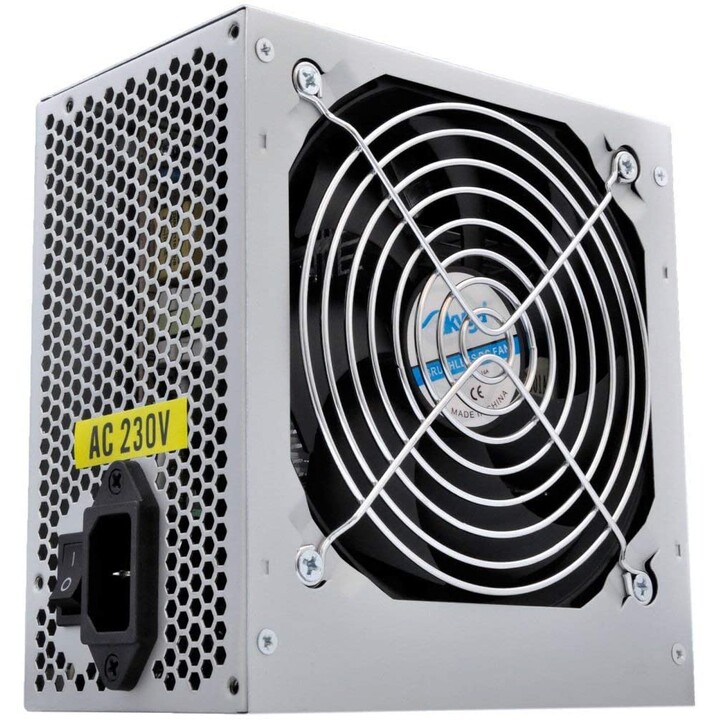

Akyga AK-B1-550 power supply unit 550 W 20 + 4 pin ATX ATX Gray

Akyga AK-B1-550 power supply unit 550 W 20 + 4 pin ATX ATX Gray

Name: Akyga AK-B1-550 power supply unit 550 W 20 + 4 pin ATX ATX Gray
Brand: Akyga
SKU: AK-B1-550
Price: 33.45 EUR
Availability: InStock

Akyga

Reference: AK-B1-550

EAN: 5901720130341

Condition: New

€33.45

VAT included

Without tax: €27.65

550W power supply unit
ATX form factor with 20+4 pin main connector
Gray color
Brand: Akyga, Model: AK-B1-550

Buy it now and receive it between Fri 25 and Thu 1 with GLS o Correos Express España €19.90

Up to 3 years warranty

100% secure payment

14 days return

Performance

Certification

CE, REACH

ATX version

2.31

RoHS accord

Yes

Supported motherboard factor forms

ATX

Mean time between failure

100,000 h

Power supply form factor (PSU)

ATX

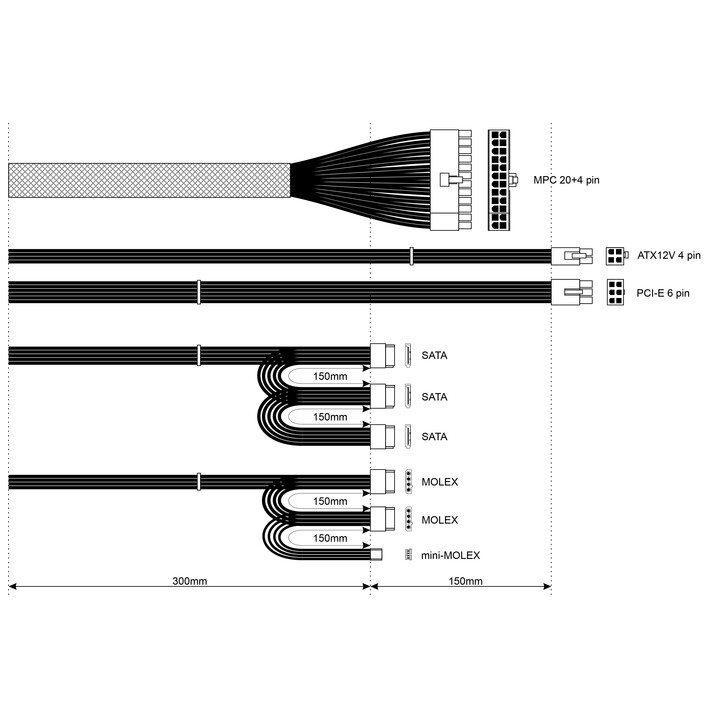

Ports and Interfaces

Type of wiring

Not modular

Power connectors (4 pin) peripherals (Molex)

two

CPU power cable length

45 cm

PCI Express power connectors (6 pin)

Peripheral Power Cable Length (Molex)

300

Motherboard Power Feeder

20 + 4 pin ATX

SATA power cable length

300

CPU P4 connector (4-pin)

Number of SATA power connectors

Packaging

Packing type

Box

Package height

95 mm

Depth of package

160 mm

User manual

Yes

Package width

220 mm

Warranty card

Yes

Package weight

1.12 kg

Design

Cooling type

Active

Product color

Gray

Country of origin

China

Integrated on / off switch

Yes

Number of fans

1 Fan (s)

Fan diameter

12 cm

Fan location

Higher

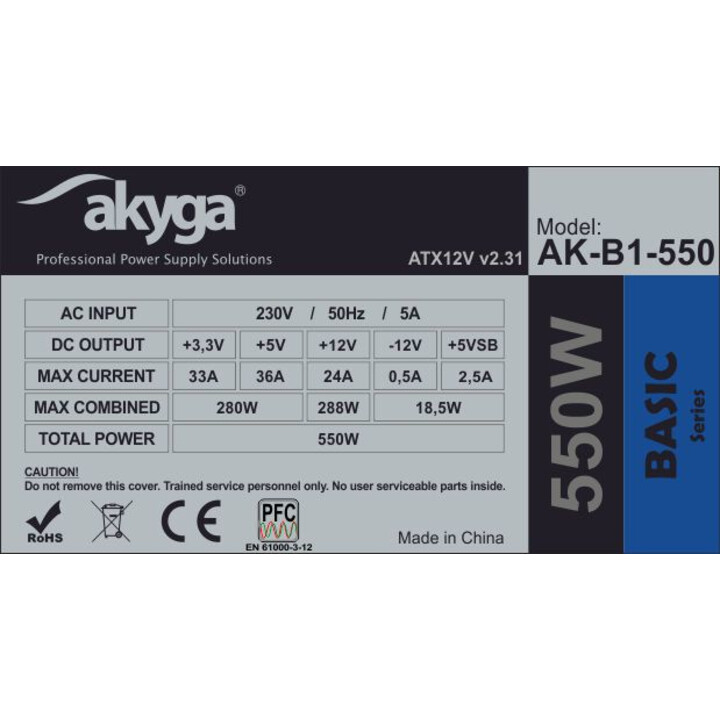

Power control

AC input voltage

230 V

Input current

5 A

Maximum output current (+ 5Vsb)

2.5 A

Total power

550 W

Combined power (-12V)

18.5 W

Combined Power (+5 VSB)

18.5 W

Maximum output current (+ 3.3V)

33 A

Combined power (+5 V)

280 W

Maximum output current (+ 12V)

24 A

Combined power (+ 12V)

288 W

Maximum output current (+ 5V)

36 A

Power protection functions

Overheating, Overvoltage, Short Circuit, Overcurrent, Overvoltage

Maximum energy

550 W

Efficiency

70%

Maximum output current (-12V)

0.5 A

Combined power (3.3V)

280 W

Environmental conditions

Operating temperature range

5 - 50 C

Weight and measurements

Weight

1.05 kg

Height

85 mm

Width

140 mm

Depth

150 mm
