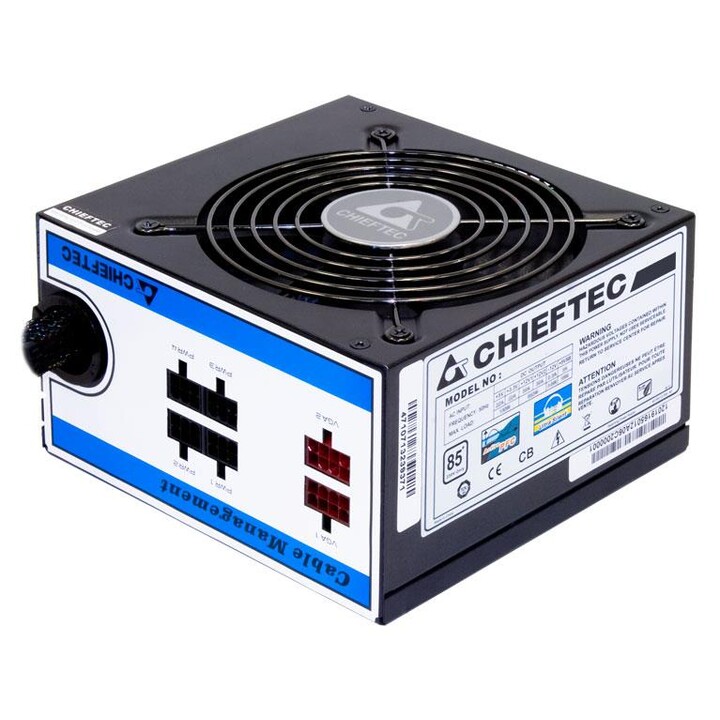

Chieftec CTG-750C power supply unit 750 W 24-pin ATX ATX Black

Chieftec CTG-750C power supply unit 750 W 24-pin ATX ATX Black

Chieftec
Reference: CTG-750C
EAN: 4710713239388
Condition: New
€75.10
VAT included
Without tax: €62.07
  • Power: 750W
  • Efficiency: 80 PLUS Bronze certified
  • Form Factor: ATX
  • Fan: 120mm silent fan
  • Protection: OVP, UVP, OCP, OPP, SCP
Share


Buy it now and receive it between Fri 2 and Tue 6 with GLS / UPS / DHL €5.99

Up to 3 years warranty 100% secure payment 14 days return

Ports and Interfaces
Type of wiring
Modular
PCI Express power connectors (6 + 2 pin)
two
EPS power connector (8-pin)
Yes
Power connectors (4 pin) peripherals (Molex)
4
Power to CPU connector (8-pin)
one
Floppy power connector
two
Motherboard Power Feeder
24-pin ATX
CPU P4 connector (4-pin)
one
Number of SATA power connectors
6
Packaging
Packing type
Box
Performance
Certification
CE, CB, FCC
RoHS accord
Yes
Power supply form factor (PSU)
ATX
80 PLUS certification
80 PLUS
Mean time between failure
100,000 h
ATX version
2.3
Power control
Combined power (+ 12V)
648 W
Maximum output current (+ 5V)
22 A
Power protection functions
Overload, Overvoltage, Short circuit, Overcurrent, Undervoltage, Overheating
AC input frequency
50 Hz
AC input voltage
230 V
Input current
6 A
Maximum output current (-12V)
0.3 A
Maximum input current (@ 110V)
+ 12V1, + 12V2, + 3.3V, + 5V, + 5Vsb, -12V
Maximum output current (+ 3.3V)
22 A
Combined Power (+5 VSB)
15 W
Combined power (3.3V)
130 W
Power factor
0.9
Maximum output current (+12 V2)
35 A
Maximum output current (+ 5Vsb)
3 A
Efficiency
85%
Total power
750 W
Combined power (+5 V)
130 W
Combined power (-12V)
3.6 W
Maximum output current (+12 V1)
35 A
Power factor correction type (PFC)
Active
Weight and measurements
Depth
140 mm
Height
87 mm
Width
150 mm
Design
Cooling type
Active
Product color
Black
Fan diameter
12 cm
Number of fans
1 Fan (s)
Fan location
Higher
