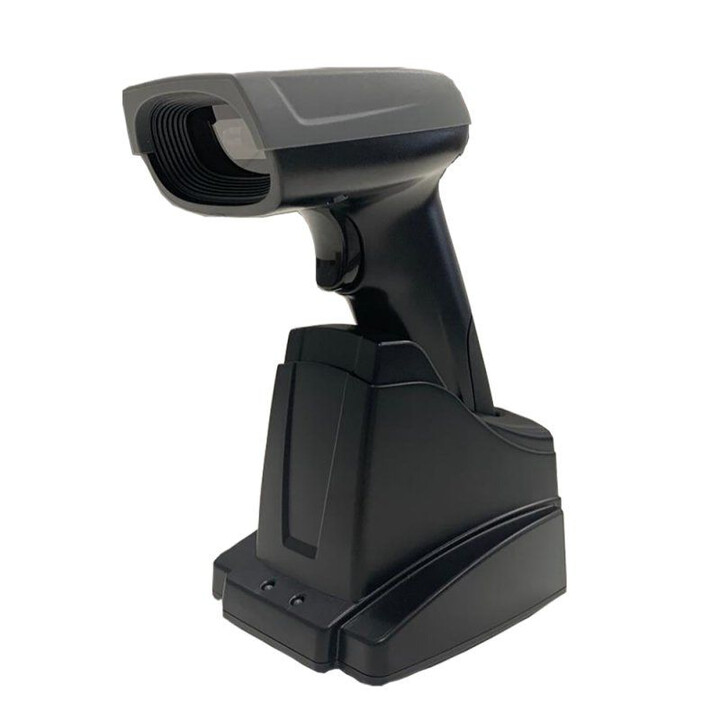

Premier MS3-2D BR/ Bluetooth/ USB/ Radio Frequency 2D Barcode Reader

• Retail Handheld Scanner
• 2D | CCD | 120 scans/sec
• Bluetooth | Wireless | USB | IP52
• With stand | Black

Specs

• Performance parameters:
• Interface: USB wired, 2.4G wireless and Bluetooth 4.2
• Supported systems: Linux, Android, Windows XP/7/8/10, Mac
• Supported languages: Multilanguage
• Sensor: Planar CMOS 640x480
• Light source: Red LED (aiming) + White LED (illumination)
• CPU: 32-bit ARM MCU
• Storage: 512K
• Scanning speed: 120 times/second
• Motion tolerance: Code128: 15 cm/s; QR: 25 cm/s
• Resolution: 4 thousand
• Transmission distance: 2.4G wireless: 80m, Bluetooth: 10m
• Bit error rate: 1/5,000,000
• Reading mode: Imager
• Shooting mode: Manual, continuous scanning, auto-sensing
• Warning mode: Buzzer, LED light
• Print contrast: 25%
• Charging time: 8 hours
• 1D Decoding Capability: Code25-Interleaved, Code25-Standard, Code25-Matrix, Code39-Regular, Code39-FullASCII, Code32, Code93-Regular, Code93-FullASCII, Code128, EAN/GSL/UCC-128Auto, Codabar, MSI, EAN/JAN-13, UPC-A, JAN-8, Code11, UPCE0
• 2D decoding capability: Data Matrix, QR, PDF417, Maxcode, Aztec, Hanxin
• Scanning distance: 10 mm - 600 mm
• Scanning angles: Roll 360°, Pitch 45°, Yew 45°
• Scanning depth: Code 39 5mil: 5-8 cm / Code 39 10mil: 4-45 cm


• Physical parameters:
• Material: ABS + PVC + PC
• Power supply: 5V ±5% charging, 3.7V 1500mAh lithium battery
• Power consumption: 0.40 W (working), 0.16 W (standby), 0.80 W (max.)
• Weight: Scanner: 200g ±5g, Base: 140g ±5g (without cable)
• Size: Scanner: 164.5 x 91 x 68 mm / Base: 110 x 86 x 96 mm
• Color: Black
• Button life: >100,000 presses


• Environmental parameters:
• IP rating: IP52
• Operating temperature: 0 to 50 ℃ / 32 to 122 ℉
• Storage temperature: 0 to 50 ℃ / 32 to 122 ℉
• Operating humidity: 20% - 85% (non-condensing)
• Storage humidity: 20% - 85% (non-condensing)
• ESD Protection: Air Discharge 15 KV
• Shock resistance: Free fall of 1.5 m on concrete surface
