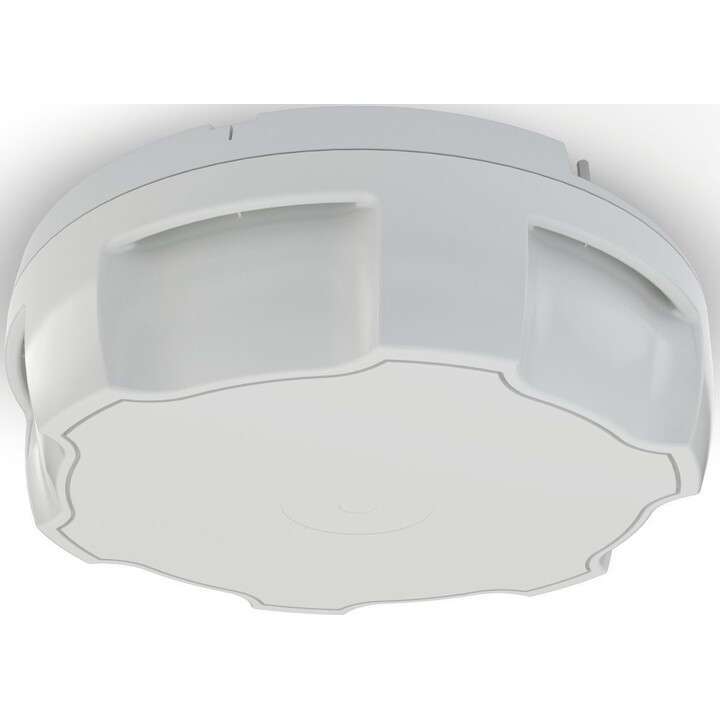

Zebra ATR7000-P2100A0-US ATR7000 RTLS Reader

Steerable phase-array antenna: Generates hundreds of simultaneous narrow beams (azimuth 0-360°, elevation 0-60°), with maximum sensitivity -88 dBm for high-density detection (1000+ tags/second) and real-time direction/motion tracking.

Global UHF frequency: 902-928 MHz (FCC/US/Canada) or 865-868 MHz (ETSI/EMEA), EPCglobal Class 1 Gen2/ISO 18000-63 protocol, optimised for battery-less passive tags in industrial workflows.

Superior RTLS accuracy: Location <0.6 m with licensed CLAS (Configuration and Location Analytics Software), reduces inventory losses and optimises routes in large warehouses or dynamic production areas.

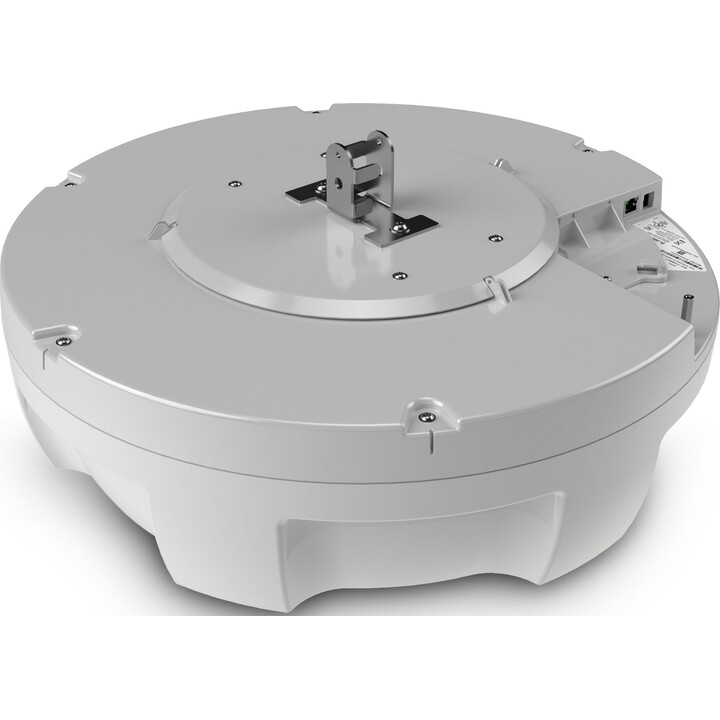

Dimensions and mounting: 19" (482.6 mm) diameter, 6.34" (161 mm) height, 11.1 lbs (5.03 kg) weight, VESA/pole mounting for ceilings or portals, with multi-colour LEDs for visual status.

Industrial Ethernet connectivity: 10/100 Base-T RJ45, opto-isolated GPIO (2 inputs/3 outputs), PoE+ (802.3at) or DC 24V/3.25A supply (24W max., <4W idle), Linux OS with Zebra API for WMS/ERP integration.

IP51 rugged durability: Operates -20°C to +55°C, MIL-STD-810F vibration (6G rms), ESD ±15kV air/±8kV contact, ideal for harsh environments such as dock doors or assembly lines.

Advanced remote management: Web interface, Zebra DNA support for fleet monitoring, CLAS configuration and location analytics for real-time operational optimisation.

Energy efficient Level VI: Low standby power consumption, complies with global RF/EMI regulations, reduces infrastructure costs by covering double the area vs. traditional readers.
