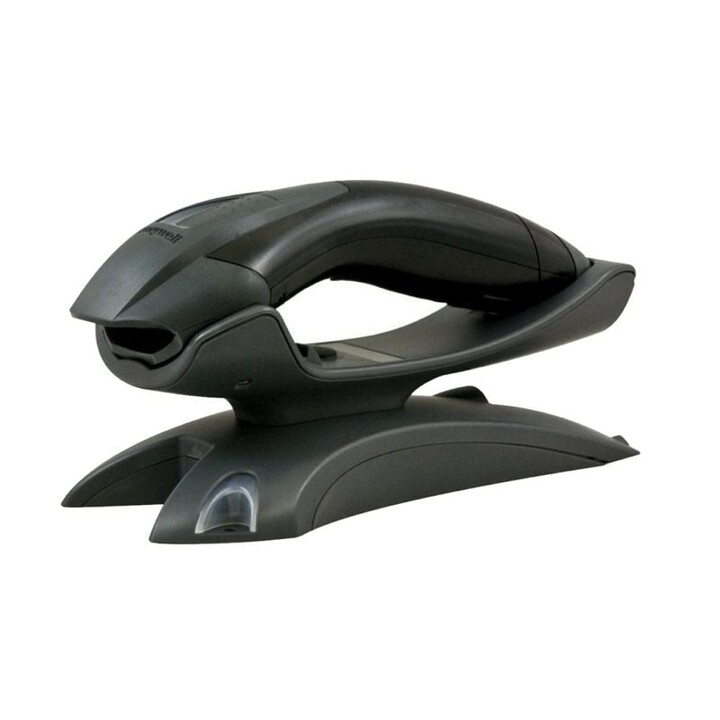

Honeywell Voyager 1202G 1D Barcode Reader/ Bluetooth/ USB

The new Voyager 1202g Wireless 1D linear laser barcode reader from Honeywell Metrologic offers significant improvements in the range that can exceed 25 meters and an autonomy of up to 12 hours and/or 45,000 scans.

Main features:

Bluetooth 2.1 makes it easy to scan standard 1D codes at 10 meters or more depending on the environment.
Great autonomy and removable battery.
Automatic interface configuration.
Excellent performance with fuzzy codes.
Locator function, by pressing a button on the base the reader will emit some beeps and flashes that help locate it.

Specifications

• Wireless

  • Radius/Range:

    2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 10m (33 ) in sight

  • Transfer rate:

    up to 3Mbps

  • Battery:

    1800 mAh Lithium ion

  • Number of scans:

    up to 45,000 per charge

  • Estimated operating autonomy:

    12 hours

  • Estimated charging time:

    4 hours

• Mechanical/Electrical

  • Voyager 1202g Scanner

    • Dimensions (LxWxH): 180mm x 66mm x 92mm (7.1? x 2.6? x 3.6?)
    • Weight: 180 g (6.3 oz) (includes battery)

  • Communication Base: CCB00-010BT

    • Dimensions (LxWxH): 200mm x 67mm x 97mm (7.9? x 2.6? x 3.8?)
    • Weight: 185g (6.5oz)
    • Operating Power (Charging): 5 W (1 A @ 5 V with power supply); 2.5W (0.5A @ 5V with USB)
    • Non-Charging Power: 0.625 W (0.125 A @ 5 V)
    • Host System Interfaces: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

• Around:

  • Scanner: Voyager 1202g Charge

    • Operating temperature: 5°C to 40°C (41°F to 104°F)
    • Storage temperature with battery: -5°C to 35°C (23°F to 95°F)
    • Humidity: 0 to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 1.5m drops into concrete
    • Protection regulations: IP42
    • Light Levels: 0 to 70,000 lux (6,500 foot-candle)

  • Communication Base: CCB00-010BT

    • Operating temperature:
      • Charging: 5°C to 40°C (41°F to 104°F);
      • Unloaded: 0°C to 50°C (32°F to 122°F)
    • Storage temperature with battery: -5°C to 35°C (23°F to 95°F)
    • Humidity: 0 to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 1.5m drops into concrete
    • Protection regulations: IP42

• Scanner performance


  • Scan pattern:

    linear scanner

  • Scan speed (laser only):

    100 lines per second

  • Horizontal scanning angle:

    30°

  • Print Contrast:

    Minimum 10% reflective difference

  • Step, Incline:

    60°, 60°

  • Decoding ability:

    Reads standard 1D and GS1 DataBar codes (Note: decoding capabilities depend on kit configuration)
