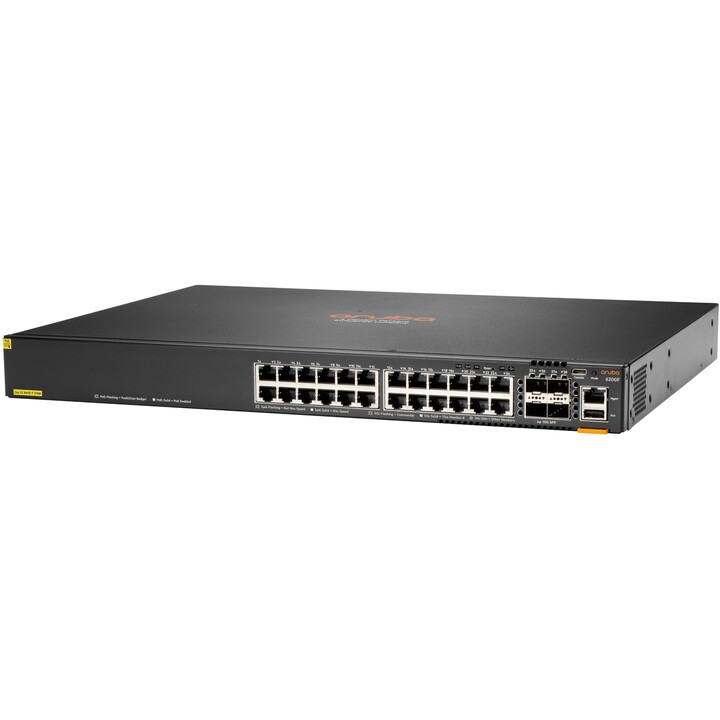

Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch L725B#ABB: Layer 3 Stackable Rack Switch

Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725B#ABB)

The Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ Switch (JL725B) is an advanced, stackable Layer 3 access switch optimized for enterprise branch offices, campuses, and SMB networks. Built on the high-performance Aruba Gen7 ASIC architecture, it provides wire-speed performance with integrated intelligence via the Aruba Analytics Engine. This model features 24 Gigabit Ethernet ports supporting IEEE 802.3at Class 4 PoE (up to 30W per port) with a generous 370W total power budget, ideal for powering high-density deployments of access points, IP cameras, and VoIP phones. With 4 fixed 10GbE SFP+ uplink ports and support for Aruba Virtual Stacking Framework (VSF), it allows for a stack of up to 8 switches to be managed as a single entity. The AOS-CX operating system enables automated configuration and enhanced security through Aruba Dynamic Segmentation, making it a future-proof choice for evolving network demands.

Technical Specifications

* **Ports:** 24 x 10/100/1000Base-T Class 4 PoE ports; 4 x 1/10G SFP+ uplink ports.

* **Processor:** Quad-Core ARM Cortex™ A72 at 1.8 GHz.

* **Memory:** 8 GB DDR4 RAM; 16 GB eMMC Flash.

* **PoE Budget:** 370W (Supports IEEE 802.3af and 802.3at Standards).

* **Performance:** Switching capacity: 128 Gbps; Throughput: 95.2 Mpps.

* **Latency:** 1 Gbps: 2.28 μs; 10 Gbps: 1.46 μs.

* **Stacking:** Up to 8 members via VSF (Virtual Stacking Framework).

* **Management:** Aruba Central, Web GUI, CLI, Aruba NetEdit, and REST APIs.

* **Part Number:** JL725B#ABB.

* **EAN:** 0190017638416.

Connectivity and Features

* **Console Ports:** 1 x USB-C Console Port; 1 x RJ-45 Console Port.

* **OOBM:** 1 x RJ-45 Out-of-Band Management port.

* **USB:** 1 x USB Type-A Host port.

* **Security:** Trusted Platform Module (TPM), Role-based ACLs, and Dynamic Segmentation.

* **Routing:** Static and Access OSPF routing; IPv4/IPv6 support.

* **Mounting:** Rack-mountable (1U height), brackets included.

Power and Environmental

* **Power Supply:** Fixed internal power supply (500W total capacity).

* **Power Consumption:** 65W (Typical, excluding PoE load).

* **Airflow:** Front and side to back.

* **Durability:** Built with fixed fans for consistent thermal management.
