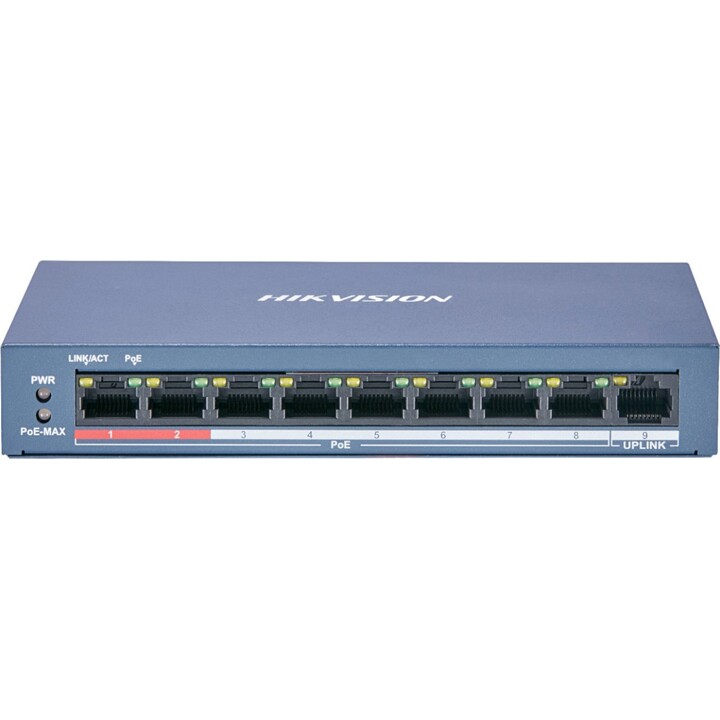

Hikvision DS-3E0109P-E/M(B) 8-Port Fast Ethernet Unmanaged PoE Switch

Hikvision PoE Switch DS-3E0109P-E/M(B)

The Hikvision DS-3E0109P-E/M(B) is a professional unmanaged 10/100 Mbps PoE switch designed to facilitate efficient data transmission and power delivery for IP-based security systems. This model features 8 Fast Ethernet PoE ports and 1 Gigabit RJ45 uplink port, providing a reliable connection for high-bandwidth devices. It incorporates intelligent PoE management technology, which automatically prioritizes power to critical ports when the total consumption reaches its limit, ensuring stable operation for essential cameras. The device supports the "Extend Mode," allowing for power and data transmission over distances of up to 250 meters, making it suitable for large-scale installations. Built with a robust metal enclosure, it offers enhanced heat dissipation and durability for continuous 24/7 operation.

Technical Specifications

* Model: DS-3E0109P-E/M(B)

* Switch Type: Unmanaged PoE

* PoE Ports: 8 x 10/100 Mbps RJ45 ports

* Uplink Port: 1 x 10/100 Mbps RJ45 port

* PoE Standard: IEEE 802.3af, IEEE 802.3at

* PoE Power Budget: 60 W

* Max. Port Power: 30 W

* Switching Capacity: 1.8 Gbps

* Packet Forwarding Rate: 1.34 Mpps

* Internal Cache: 1 Mbits

* MAC Address Table: 2 K

* Shell: Metal material, fan-free design

* Operating Temperature: -10°C to 55°C (14°F to 131°F)

* Power Supply: 48 VDC, 1.35 A

Key Features

* Intelligent PoE Management: When the power supply exceeds the budget, the switch intelligently manages the output across ports to prevent overloads and ensure the most important devices remain powered.

* Long Range Transmission: Features a specialized extend mode that enables PoE transmission up to 250 meters at 10 Mbps, significantly reducing the need for additional repeaters in expansive areas.

* High Voltage Surge Protection: Integrated 4 kV surge protection shields the internal circuitry from electrical spikes and lightning strikes, increasing the overall reliability of the network infrastructure.

* Plug and Play Operation: Requires no complex configuration or software installation, allowing for immediate deployment and seamless integration into existing Ethernet environments.

* Optimized Data Forwarding: The high-priority ports ensure that video data from critical surveillance zones is transmitted with minimal latency and packet loss.
