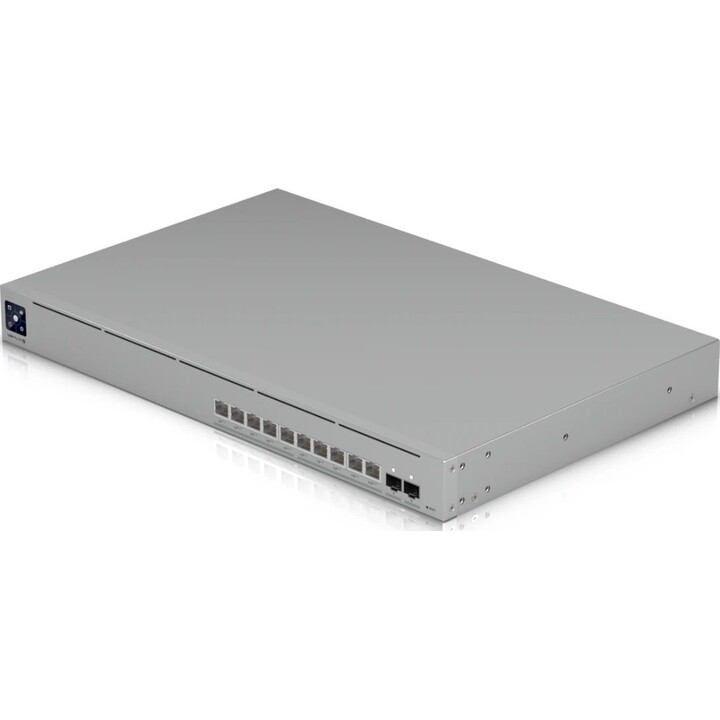

UniFi Pro XG 10 PoE (400W)

is a professional switch for very demanding networks, ideal for enterprise applications, AV installations, and environments where high speed and high budget PoE in 1U rack form factor is required.

Main technical features:

• Ports: 10 x RJ45 multigigabit (10G/5G/2.5G/1G/100M), all with PoE+++ support (up to 90 W per port).

• Uplink: 2 x 10G SFP+ for fibre.

• Total PoE budget: Up to 400W, ideal for powering Wi-Fi 7 APs, AI cameras, VoIP and high power consumption PoE equipment.

• Switching capacity: 240 Gbps.

• Forwarding rate: 179 Mpps.

• MAC Table: 32,000 entries.

• Redundancy: Supports DC power backup.

• Management and Layer 3: Static routing, inter-VLAN, DHCP server and relay, ACL, IGMP snooping and all common advanced L2 protocols.

• Security: MAC/port/IP ACL, 802.1X access control, isolation and protection against loops.

• Dimensions: 442.4 x 285 x 44 mm. Weight: 4.6 kg (without rack).

• Maximum power consumption: 65W (without PoE), up to 520W with full PoE.

• Temperature range: -5°C to 40°C operating.
