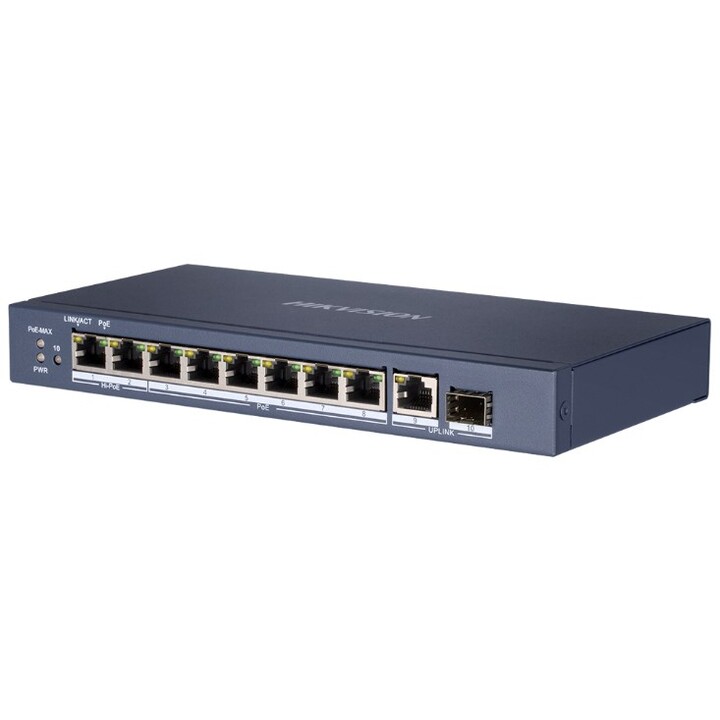

PoE Switch Hikvision DS-3E0510HP-E
Reference:
DS-3E0510HP-E
EAN:
6941264031611
Condition:
New
Price:
€157.76
VAT included
Without tax:
€130.38
- 8 x 10/100Mbps PoE+ ports (802.3af/at)
- 2 x 100/1000Base-X SFP uplink ports
- 120W total PoE power budget
- 5.6 Gbps switching capacity, 4.17 Mpps forwarding rate
- Fanless, metal housing, operating temperature 0°C to 40°C
Design
Product color
Blue
Rack mount
No
Case material
Metal
Environmental conditions
Relative humidity range during storage
5 - 95%
Operating temperature range
-10 - 40 °C
Relative humidity range for operation
5 - 95%
Storage temperature range
-40 - 85 °C
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yeah
Power over Ethernet (PoE) Budget
110 W
Weight and dimensions
Weight
590 g
Broad
217.6 mm
Depth
27.8 mm
Ports and Interfaces
Basic RJ-45 Ethernet switching ports
Gigabit Ethernet (10/100/1000)
Fibre Channel Ports
1
Number of RJ-45 Ethernet basic switching ports
8
Energy control
Power consumption (max)
120 W
DC input voltage
54 V
Data transmission
MAC Address Table
4000 entries
Save and forward
Yeah
Forwarding rate
14.88 Mpps
Switching capacity
20 Gbit/s
Administration Features
Switch type
Unmanaged
Connection
Full duplex
Yeah
10G Support
No
Network standards
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3u, IEEE 802.3at, IEEE 802.3, IEEE 802.3x, IEEE 802.3af
Logistics data
Harmonization System (HS) Code
85176990
-
Brand
-
ReferenceDS-3E0510HP-E
-
In stock11 Items
-
ConditionNew
-
EAN136941264031611
-
MPNDS-3E0510HP-E
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
