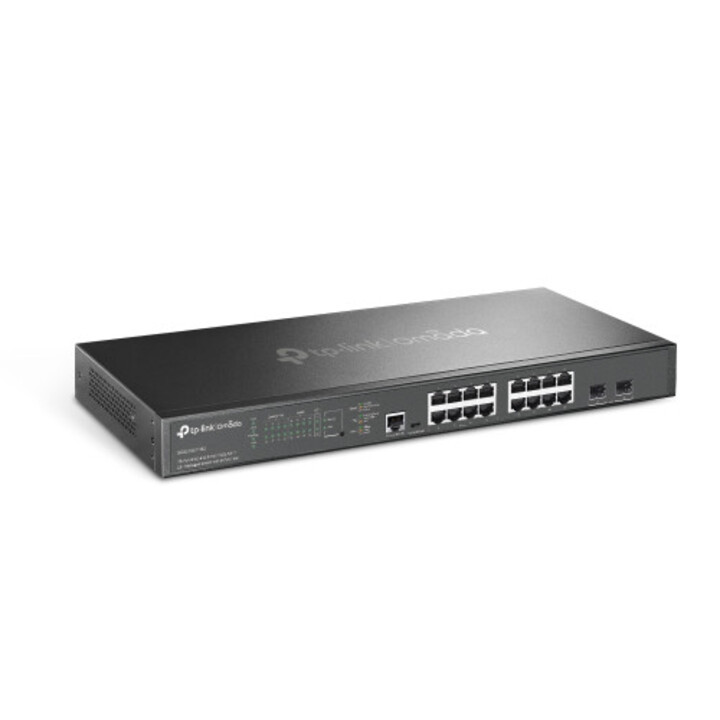

TP-LINK MANAGEABLE SWITCH L2+ 16-PORT OMADA 2.5GBASE-TY 2 PORTS 10GE SFP+ WITH 8 POE PORTS
Specifications:
- Number of basic RJ-45 Ethernet switching ports: 16
- Basic RJ-45 Ethernet switching type ports: 2.5G Ethernet (100/1000/2500)
- Number of SFP+ module slots: 2
- Electrical connector: AC-in power connector
- Console port: RJ-45/
Micro-USB
- Width: 440mm
- Depth: 180mm
- Height: 44mm
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 299.4 W
- Power source: Alternating current
- Operating temperature range: 0 - 50 °C
- Relative operating humidity: 10 - 90%
-
Storage temperature range: -40 - 70 °C
- Relative storage humidity: 5 - 90%
- Heat dissipation: 1021.64 BTU/h
- Sustainability certificates: United States Federal Communications Commission (FCC), RoHS
- Sustainability compliance: Yes
- Management protocols: SNMP v1/v2c/v3, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
- Network standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
- 10G Support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Adding links: Yes
- Limit rate: Yes
- VLAN Support: Yes
- Virtual LAN functions: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Storm transmission control: Yes
- IP routing: Yes
- Spanning tree protocol: Yes
- Ethernet LAN, data transfer speed: 100,1000,2500 Mbit/s
- Head of Line Lock (HOL): Yes
- MAC address table: 16000 entries
- Jumbo Frames, support: Yes
- Switching capacity: 120 Gbit/s
- Jumbo Frames: 9000
- Forwarding rate: 89.28 Mpps
- Packet buffer: 12 MB
- Number of static routes: 48
- Number of IP interfaces: 32
- Static route: Yes
- Cables included: AC
- Quick setup guide: Yes
- Packaging type: Box
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP: Yes
- Supported security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
- Loop protection: Yes
- MAC, address filter: Yes
- SSH/SSL Support: Yes
- BPDU protection and filtering: Yes
- IP-MAC port binding: Yes
- Authentication: MAC based authentication, Port based authentication
- Static port security: Yes
- Authentication type: AAA, TACACS+
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
- Password protection: Yes
- Switch type: Managed
- Quality of service (QoS) support: Yes
- Web-based administration: Yes
- Switch layer: L2+
- ARP inspection: Yes
- System event log: Yes
- MIB, support: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021) ), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remot
- Location settings configuration (CLI): Yes
- Managed through the cloud: Yes
- Rack mounting: Yes
- Product color: Black
- LED indicators: Yes
- Number of fans: 2 Fan(s)
- Certification: CE, FCC, RoHS
- Form factor: 1U
- PoE: Yes
- Power over Ethernet (PoE) Budget: 240 W
- Power over Ethernet Plus (PoE+) Number of ports: 8
- Power per Power over Ethernet (PoE) port: 30 W
- Multicast support: Yes
- Multicast Throughput Intrusion (MLD): Y
