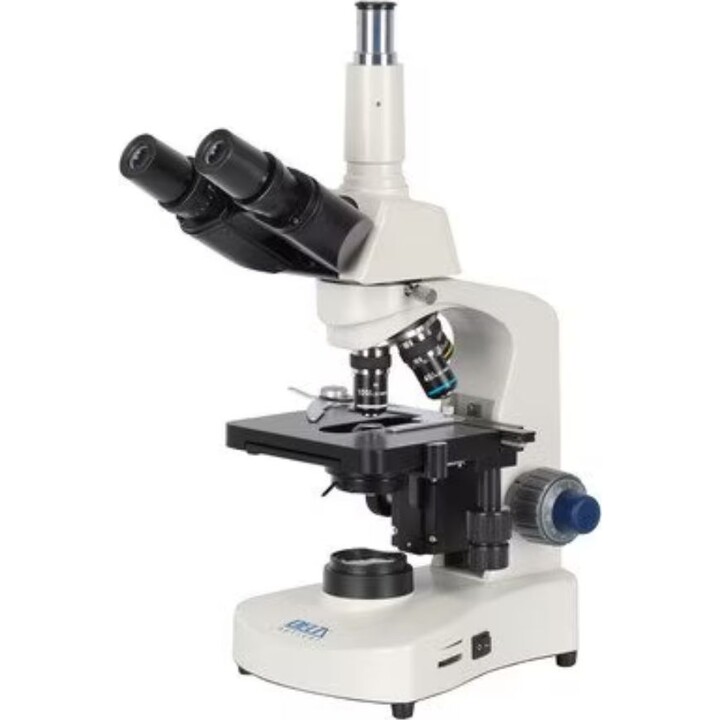

Delta Optical Genetic Pro Trino Microscope
- Trinocular Siedentopf head with 30° inclination and 360° rotation
- 4 objective lenses: 4x, 10x, 40x, 100x (oil) with DIN standard
- Wide-field eyepieces WF10x/20mm and WF20x/10mm
- Built-in LED illumination with adjustable intensity
- Double-layer mechanical stage with coaxial controls
Delta Optical Genetic Pro Trino Microscope
The Delta Optical Genetic Pro Trino Microscope (DO-3406) is a high-performance trinocular microscope designed for professional laboratory and educational use. It features a Siedentopf trinocular head with 30° inclination and 360° rotation, allowing comfortable viewing and easy camera attachment. The microscope is equipped with four DIN standard objectives (4x, 10x, 40x, 100x oil) providing magnifications from 40x to 1000x.
The built-in LED illumination system offers bright, cool light with adjustable intensity, ensuring clear observation of specimens. The double-layer mechanical stage with coaxial controls enables precise specimen positioning. This model includes wide-field eyepieces WF10x/20mm and WF20x/10mm, and a 1.25 NA Abbe condenser with iris diaphragm for optimal contrast. The robust metal construction ensures durability and stability during extended use.
| Brand | Delta Optical |
| Model | Genetic Pro Trino |
| Reference | DO-3406 |
| EAN | 5901691634060 |
| Head Type | Trinocular Siedentopf |
| Inclination | 30° |
| Rotation | 360° |
| Eyepieces | WF10x/20mm, WF20x/10mm |
| Objectives | 4x, 10x, 40x, 100x (oil) |
| Magnification Range | 40x - 1000x |
| Condenser | Abbe NA 1.25 with iris diaphragm |
| Illumination | LED, adjustable intensity |
| Stage | Double-layer mechanical, 140x140mm |
| Focus | Coaxial coarse and fine (0.002mm) |
| Power Supply | AC 100-240V, 50/60Hz |
| Weight | 8.5 kg |
