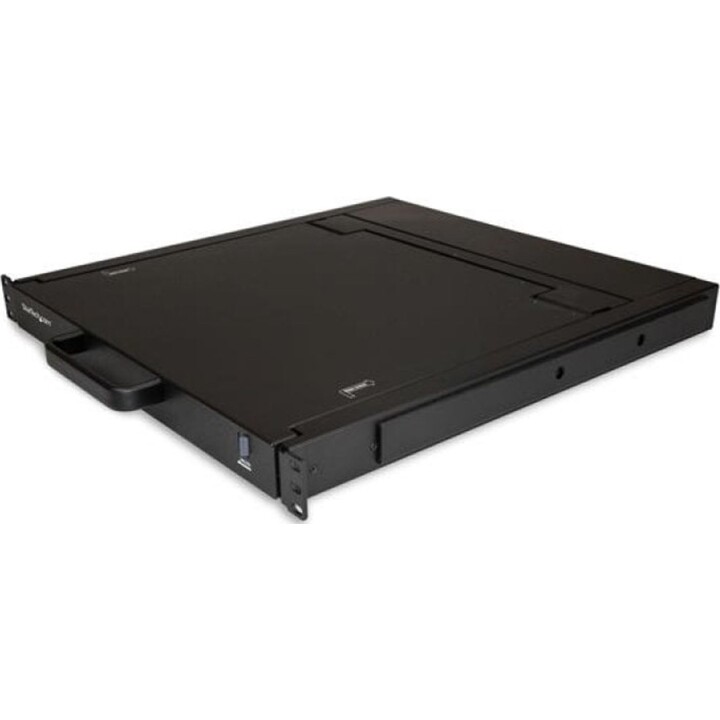

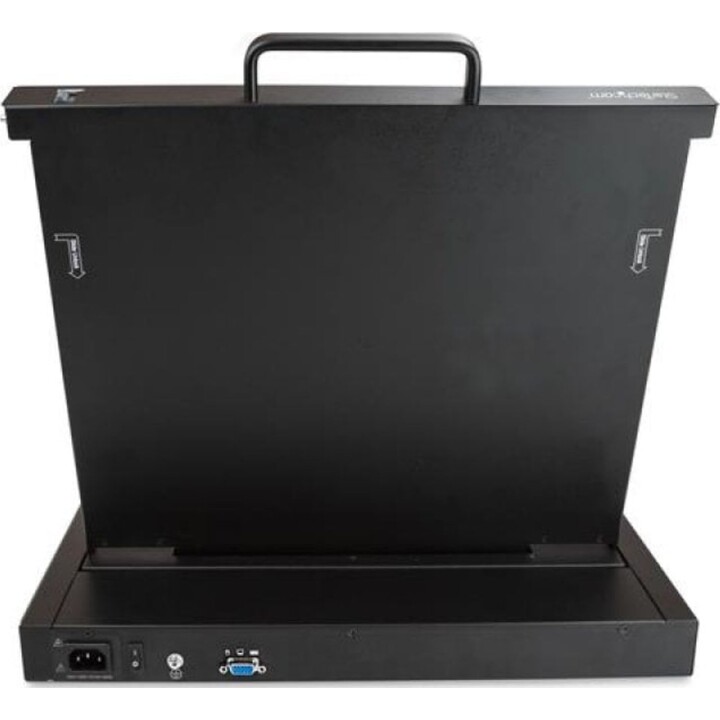

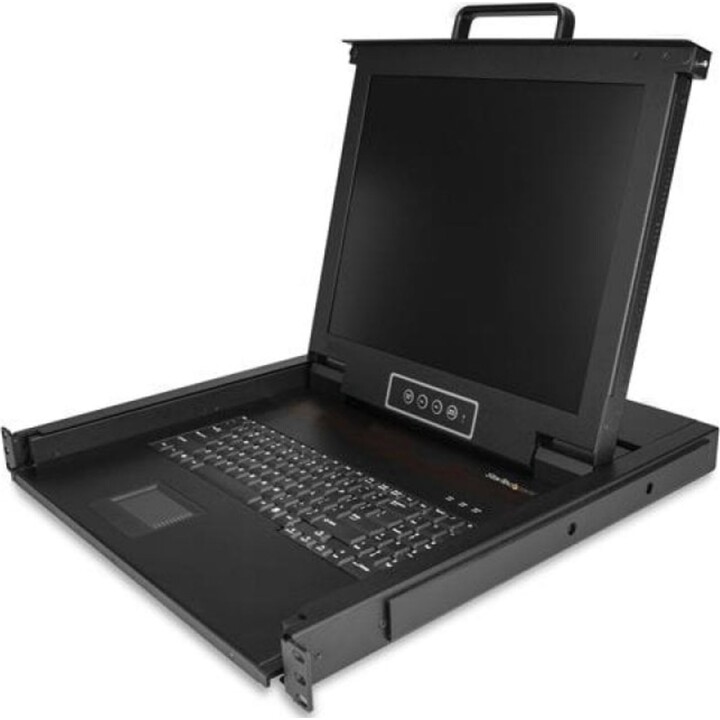

Startech 1U Rackmount Console with VGA and 17" Screen

This rackmount KVM console provides full keyboard, monitor, and mouse control for a single server or multiple servers connected via a separate KVM switch (sold separately). The rackmount console installs in a 1U space, which is sufficient for complete console control.

Characteristics:

• Maximize your IT budget and minimize hassles. This KVM console offers all the essential controls needed to manage your server room cost-effectively. The console includes an integrated keyboard and touchpad for intuitive control, as well as an LCD screen that supports resolutions up to 1280x1024.

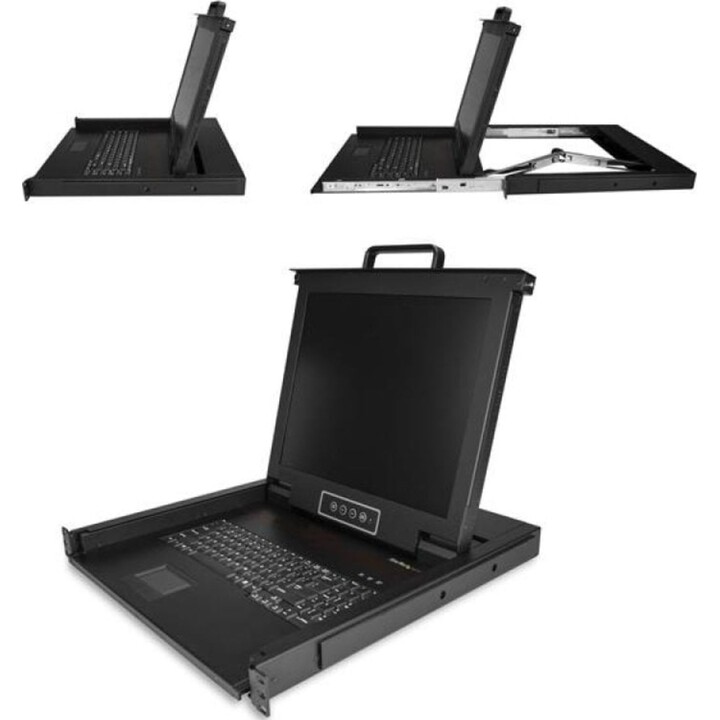

• Cable-free monitoring: The rack-mount LCD console slides out of the 1U rack space, allowing you to monitor and control one or more servers connected via a KVM switch. The console includes a lever for easy sliding in and out of the server rack, keeping your workspace tidy and organized.
• Easy system integration: This rack console includes a KVM module with one port, allowing direct connection to a server. The module provides the flexibility you need to easily integrate the console into your existing server infrastructure.

Specs:

• Exhibition
  • Screen diagonal: 43.2 cm (17")
  • Screen resolution: 1280 x 1024 pixels
  • Screen brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Horizontal viewing angle: 170°
  • Vertical viewing angle: 160°
  • Pixel size: 0.264 x 0.264 mm
  • Aspect ratio: 5:4
  • Display type: LCD
  • Response time: 5 ms
  • Number of screen colors: 16.78 million colors
  • Color depth: 8 bit

• Technical details
  • Material: Steel
  • Mean time between failures: 50000 h
  • Relative humidity range for operation: 10 - 80%
  • Rack mount: Yes
  • Chaining: No
  • Keyboard lock: No
  • IP Control: No
  • LED Indicators: Power, Status
  • Cable length: 1.82 m
  • Rack capacity: 1U

• Ports and Interfaces
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: VGA

• Regulatory approvals
  • Certification: CE, FCC, PSE, UL
  • RoHS Compliance: Yes

• Energy control
  • Energy consumption: 13 W
  • AC adapter input voltage: 100 - 240 V
  • Input current: 1.5 A

• Environmental conditions
  • Operating temperature range: 0 - 40°C
  • Storage temperature range: -20 - 60 °C

• Weight and dimensions
  • Width: 448 mm
  • Height: 471 mm
  • Depth: 42.5 mm
  • Weight: 11.7 kg
  • Mounting depth (min.): 45 cm
  • Mounting depth (max.): 79 cm

• Packaging
  • Package weight: 17.1 kg
  • Package width: 615 mm
  • Package depth: 765 mm
  • Package height: 190 mm

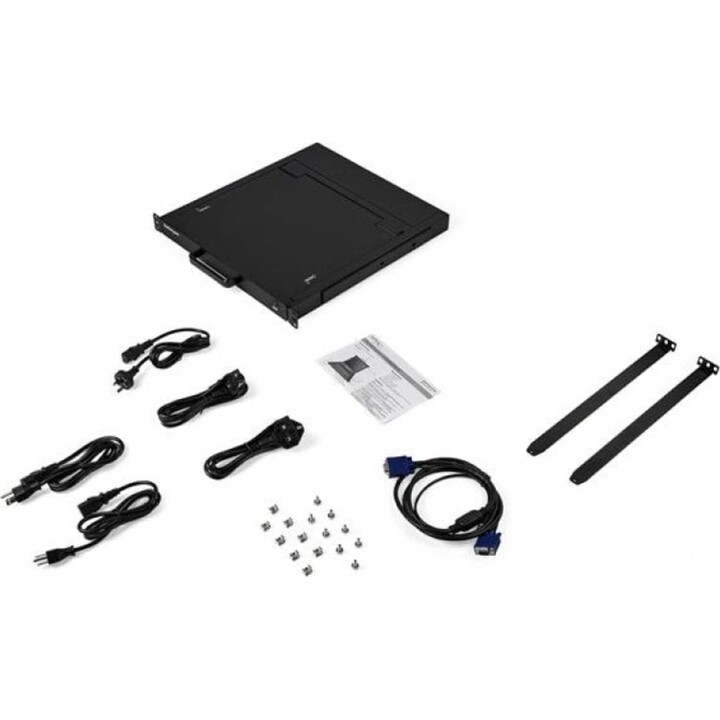

• Package contents
  • Cables included: KVM
  • Screws included: Yes
  • Number of screws: 8
  • Mounting brackets included: Yes
  • Includes screws with cage nuts: Yes
  • Number of bolts with cage nuts: 8
  • Power plug types included: ANZ, EU, JP, NA, UK
  • Quick Installation Guide: If
  • Mounting shelf: Yes
