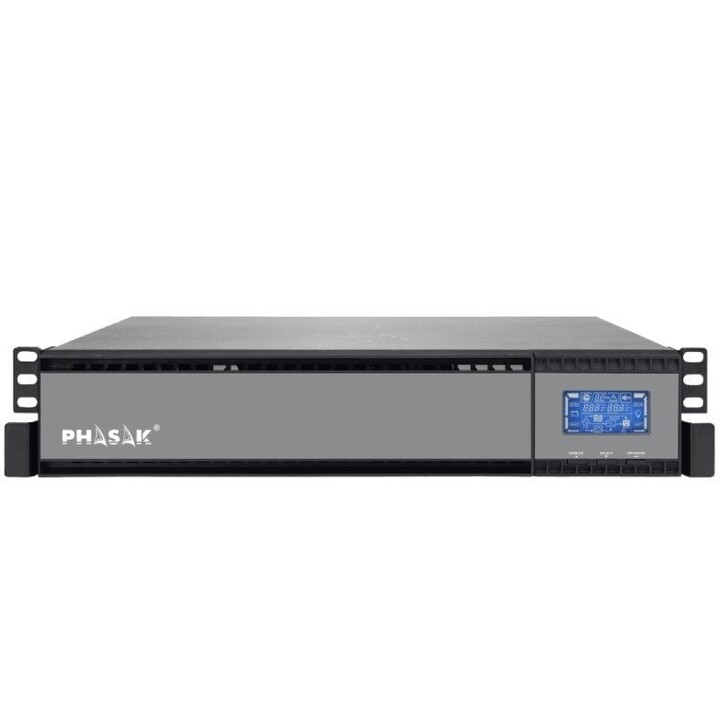

UPS Online Phasak Rack 19' 1000 VA Online LCD/ 1000VA-900W/ 2 Outputs/ Rack Format

Online Rack

The Online Rack Series, with its microprocessor and true double conversion technology, guarantees a stable and clean signal to all connected devices. It allows for the installation of external battery banks in all models and features protected RJ45 ports, offering surge protection and protection against electrical noise for your telephone/ADSL/Ethernet connections.

Specs

• Power 1000 VA / 900 W
• Entrance
• Transfer Voltage - Low 160 VAC/140 VAC/120 VAC/110 VAC±
• Return Voltage - Low 170 VAC/150 VAC/130 VAC/120 VAC ± 5%
• Transfer voltage - High 150 VAC ± 5% or 300 VAC ± 5%
• Return Voltage - High 145 VAC ± 5% or 290 VAC ± 5%
• Frequency Range 45 Hz ~ 55 Hz or 56 Hz ~ 65 Hz
• Single-phase + neutral
• Power factor ≧ 0.99 @ 200-230 VAC or 100-120 VAC
• Exit
• Output voltage 200/208/220/230/240 VAC
• AC voltage regulation ± 1%
• Sync Frequency Range /
• Bat 48~52 Hz 58~624 Hz / 50 Hz ± 0.2 Hz or 60 Hz ± 0.3 Hz
• Peak current value 3:1 (max.)
• Harmonic distortion ≦ 2% THD (linear load) / ≦ 8% THD (non-linear load)
• AC/Battery overload protection
• 100%~110%: 10 min. 110%~130%: 1min. >130%: 1 sec /
• 100%~110%: 30 sec. 110%~130%: 10 sec. >130%: 1 sec
• Transfer Time (AC / BYPASS) 0 ms / 4 ms (Typical)
• Waveform (Bat.) Pure Sinusoidal
• AC/Battery Efficiency 90%/89% 91%/89%
• Battery
• Quantity / Type / No. 2x 12V / 9Ah
• Charging time (90%) 4h
• Charging Current / Voltage 1.0 A (Max.) / 27.4VDC ± 1%
• Characteristics
• Dimensions (DxWxH) 410 x 438 x 88 (2U)
• Weight (Kg) 11.6
• Operating humidity 20 - 90% non-condensing @ 40°C
• Noise level < 50dBA @ 1 meter
