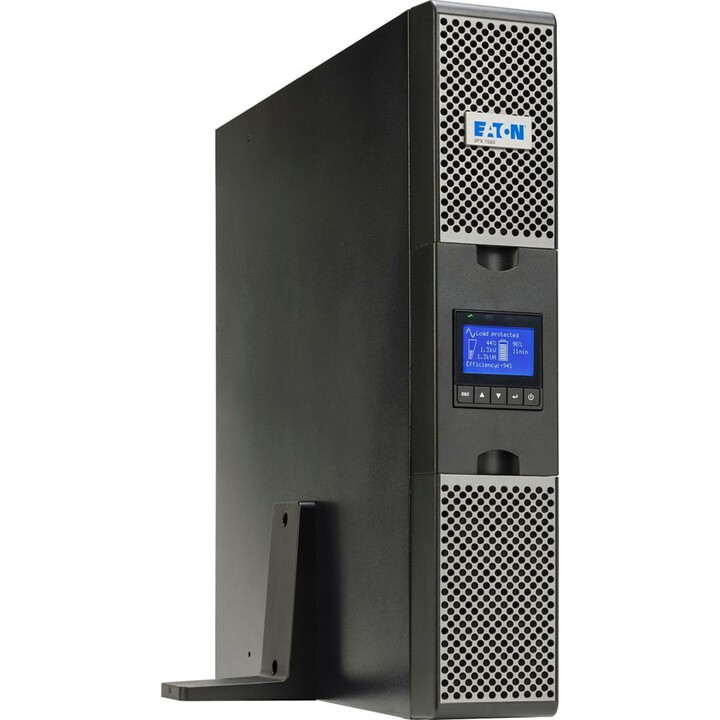

The Eaton 9PX1000IRT2U is a high-performance uninterruptible power supply designed for critical IT infrastructure. With 1000W/1000VA capacity and double-conversion online topology, it provides clean, regulated power to connected equipment, protecting against surges, sags, and outages. The 2U form factor is convertible between rack and tower orientations, offering flexible deployment in data centers or server rooms.
This UPS features advanced battery management that extends battery life and provides early warning of battery failure. The included Eaton Intelligent Power Manager software enables remote monitoring and graceful shutdown of connected servers. With a high efficiency rating (up to 95% in online mode), the 9PX series reduces energy costs and heat output. The unit also offers multiple output voltage options (200/208/220/230/240V) to match local power requirements.
| Brand | Eaton |
| Model | 9PX1000IRT2U |
| Power Rating | 1000W / 1000VA |
| Topology | Double-conversion (online) |
| Form Factor | 2U rack/tower convertible |
| Input Voltage | 200-240V |
| Output Voltage | 200/208/220/230/240V |
| Output Connections | (8) C13, (1) C19 |
| Battery Type | Sealed lead-acid, hot-swappable |
| Typical Backup Time | 10 min at full load |
| Software | Eaton Intelligent Power Manager |
| Efficiency | Up to 95% (online mode) |
| Weight | 28.5 kg (62.8 lbs) |
| Dimensions (HxWxD) | 86 x 440 x 600 mm (3.4 x 17.3 x 23.6 in) |
