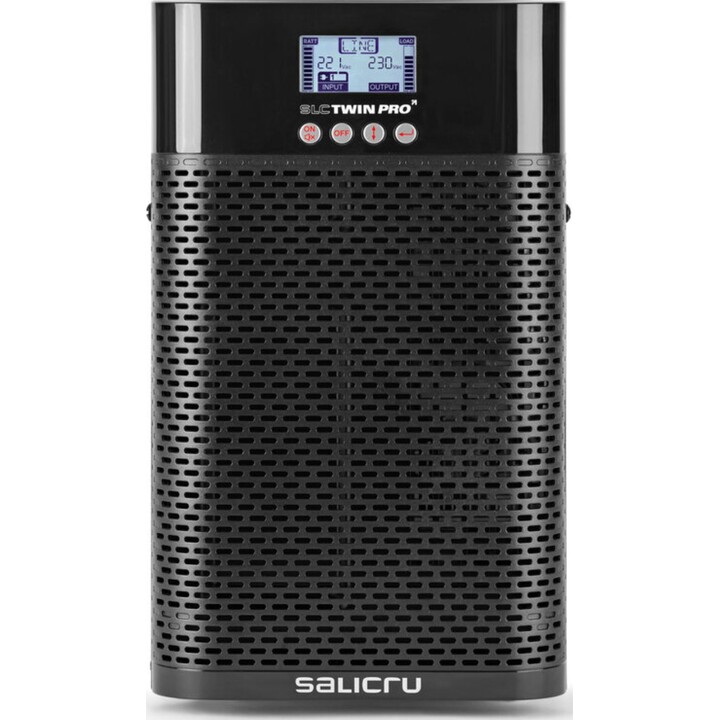

Salicru 3000 VA Online Double Conversion Uninterruptible Power Supply (UPS) System

High output power factor (FP = 0.9) to guarantee availability to all types of loads. Total control through the
status information via LCD display and keyboard. In addition to extensive monitoring and communication options through the
Built-in USB HID interface, intelligent slot for SNMP communication cards or relays and a wide range of packages
of available software; Free version of downloadable monitoring for Windows, Linux, Unix or Mac and available packages
for multi-servers or virtualized systems. For those installations that require more back-up time there is the
possibility of extension of autonomy by means of UPS with extra charger and additional battery modules. Also highlight
the possibility of operating Eco-mode to improve the efficiency of the equipment, or the EPO functionalities (emergency stop),
functioning as a frequency converter and the built-in battery test.

• features

• On-line technology double conversion
• Tower Format

• Entry

• Rated voltage 220/230/240 V
• Voltage range 100% load 176 ÷ 300 V
• Voltage margin 40% load 100 ÷ 300 V
• Power factor = 0.99
• Frequency 50/60 Hz
• Frequency range ± 10%
• Thermal input rearmable

• Exit

• Power factor 0.9
• Pure Sinewave waveform
• Rated voltage 220/230/240 V
• Precision tension ± 1%
• Total harmonic distortion (THDv) <2%
• Synchronism margin ± 10%
• Accuracy frequency battery mode ± 0.05 Hz
• Synchronization speed 1 Hz / s
• performance
• On-line> 89% ÷ 92%
• Eco-mode> 98%
• Permissible overloads
• Online mode 105% constant / 130% for 60 s / 150% for 10 s
• Battery mode 105% constant / 130% for 10 s / 150% for 1 s
• Bypass mode 130% constant / 180% for 60 s
• Take formats available Schuko (DIN) or IEC

• Drums

• Battery type Pb-Ca sealed, AGM, maintenance-free
• Protection against overvoltages, undervoltages and AC components
• Manual and / or automatic programmable battery test

• Charger

• Type of load I / U (Constant current / Constant voltage)
• Recharge time 4 hours to 90%

• Communication

• USB HID interface
• Slot for SNMP / relays Yes
• Downloadable monitoring software for Windows, Unix, Linux and Mac family

• Operating modes

• On-line double conversion Yes
• Eco-mode Yes
• Frequency converter (CVCF) Yes (1)

• General

• Working temperature 0º C ÷ 40º C
• Relative humidity Up to 95%, without condensing
• Altitude of work 2,400 msnm
• Noise level at 1 meter = 49 dB (100% load) / = 41 dB (60% load)

• Normative

• Safety EN 62040-1: 2008 + A1: 2013
• Electromagnetic compatibility (EMC) EN 62040-2
• Functioning VFI according to EN 62040-3
• Quality and Environmental Management ISO-9001 and ISO-14001
