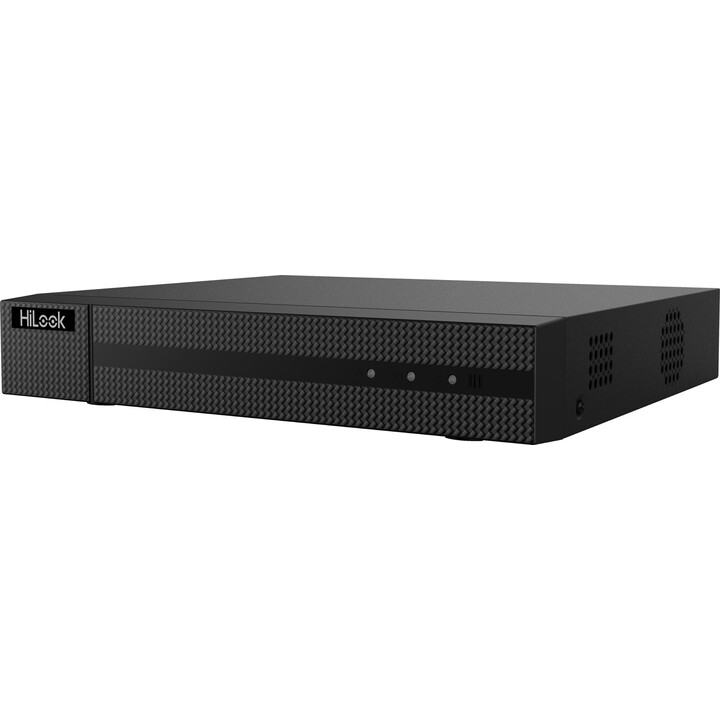

Hilook 5-in-1 4-channel 5MP DVR recorder, model 204Q-M1 (E)
- 5-in-1 video input: supports HD-TVI, AHD, CVI, CVBS, and IP cameras
- 4-channel recording at 5MP resolution (up to 12fps per channel)
- H.265+ compression for efficient storage and bandwidth
- Supports up to 6TB hard drive (SATA interface)
- HDMI and VGA output up to 1920x1080p
Hilook 5-in-1 4-channel 5MP DVR recorder, model 204Q-M1 (E)
The Hilook 204Q-M1 (E) is a versatile 4-channel DVR recorder designed for hybrid surveillance systems. It supports 5-in-1 video input, allowing seamless integration with HD-TVI, AHD, CVI, CVBS, and IP cameras. With 5MP recording capability per channel, it delivers high-definition video for detailed monitoring. The H.265+ compression technology reduces file sizes without compromising quality, optimizing storage and bandwidth usage.
This DVR features a SATA interface supporting up to 6TB hard drive for extended recording. It offers dual video output via HDMI and VGA, both supporting 1920x1080p resolution. The device includes remote access capabilities via mobile app and web browser, making it suitable for residential and small business security applications. Plug-and-play setup simplifies installation.
| Video Input | 4 channels, 5-in-1 (HD-TVI, AHD, CVI, CVBS, IP) |
| Recording Resolution | 5MP (up to 12fps), 4MP (up to 15fps), 1080p (up to 30fps) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Hard Drive | 1 SATA interface, up to 6TB |
| Video Output | HDMI (1920x1080p), VGA (1920x1080p) |
| Audio | 1 channel input, 1 channel output (RCA) |
| Network | 1 RJ45 10/100Mbps, remote access via Hik-Connect |
| Power Supply | DC 12V / 1.5A |
| Dimensions | 260 x 230 x 45 mm |
| Weight | 0.8 kg |
-
