- Out-of-Stock

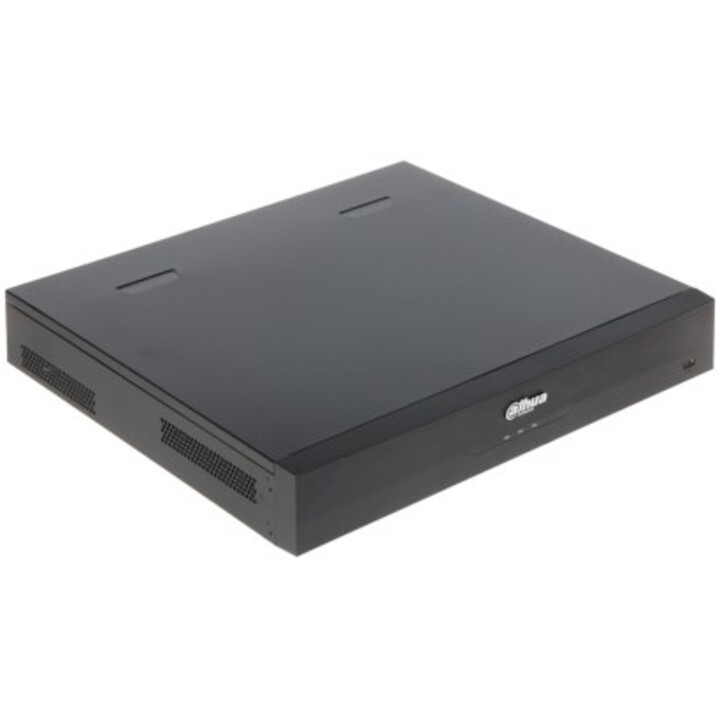

Dahua XVR5432L-I3 32-channel video recorder black
Reference:
XVR5432L-I3
EAN:
6923172547965
Condition:
New
Price:
€881.37
VAT included
Without tax:
€728.40
- 32-channel 5-in-1 (TVI/AHD/CVI/CVBS/IP) video input
- H.265/H.264 dual-stream video compression
- Up to 32 IP cameras (12MP resolution) or 32 analog cameras (5MP)
- 2 SATA HDD bays, each up to 10TB
- HDMI/VGA output up to 1920x1080p
Performance
Certification
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Supported playback resolutions
3840?2160, 2560±1440, 1920±1080, 1280±1024, 1280?720
Maximum video resolution
3840 x 2160 Pixels
Product color
Black
Multi-screen mode
36, 4, 9, 25, 8, 16, 1
Rack capacity
1.5U
Number of channels
32 channels
PTZ Control
Yeah
Supports multiple screens
Yeah
Video motion detection
Yeah
Operating system installed
embedded LINUX
Video compression formats
H.265+, H.265, H.264, H.264+
Supported audio formats
G.711 ?-law, G.711 A-law, PCM
Streaming audio playback
Yeah
Video broadcast
Yeah
Connection
Ethernet LAN (RJ-45) number of ports
1
Ethernet
Yeah
Ethernet interface type
Gigabit Ethernet
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Weight and dimensions
Height
76 mm
Weight
4.8 kg
Broad
440 mm
Depth
420.2 mm
Energy control
AC input voltage
100 - 240 V
Energy consumption
22 W
Power supply type
AC
Packaging
Package depth
499 mm
Package height
211 mm
Package weight
7.1 kg
Package width
529 mm
Ports and Interfaces
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type A ports
2
VGA (D-Sub) output ports
1
Number of eSATA ports
1
Alarm input channels
16
Port - RS-232
1
RS-485 Ports
1
Alarm output channels
6
Number of USB 2.0 ports
1
Number of HDMI ports
2
BNC input ports
32
Environmental conditions
Operating temperature range
-10 - 55 °C
Relative humidity range for operation
10 - 90%
Hard drive
Number of supported HDDs
4
Maximum HDD capacity
16 TB
HDD interface
SATA
-
Brand
-
ReferenceXVR5432L-I3
-
ConditionNew
-
EAN136923172547965
-
MPNXVR5432L-I3
-
ColorBlack
