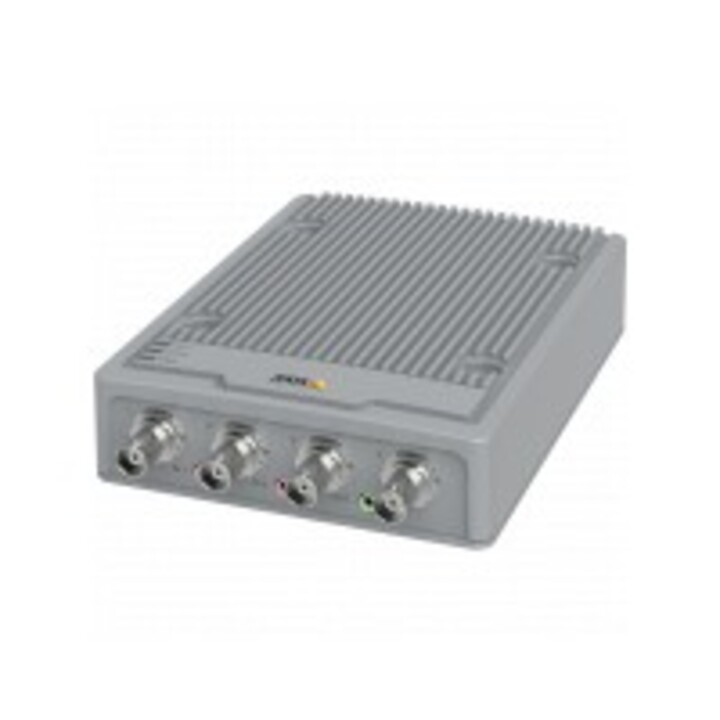

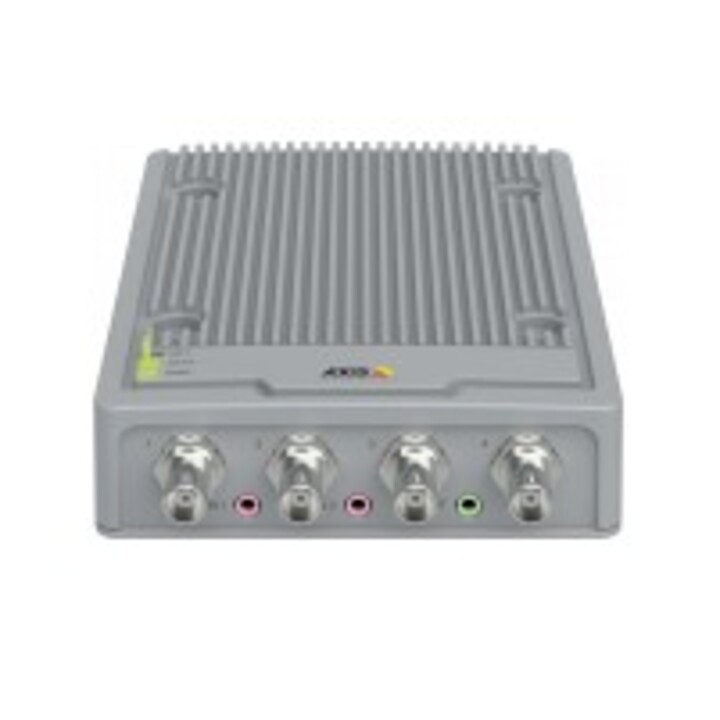

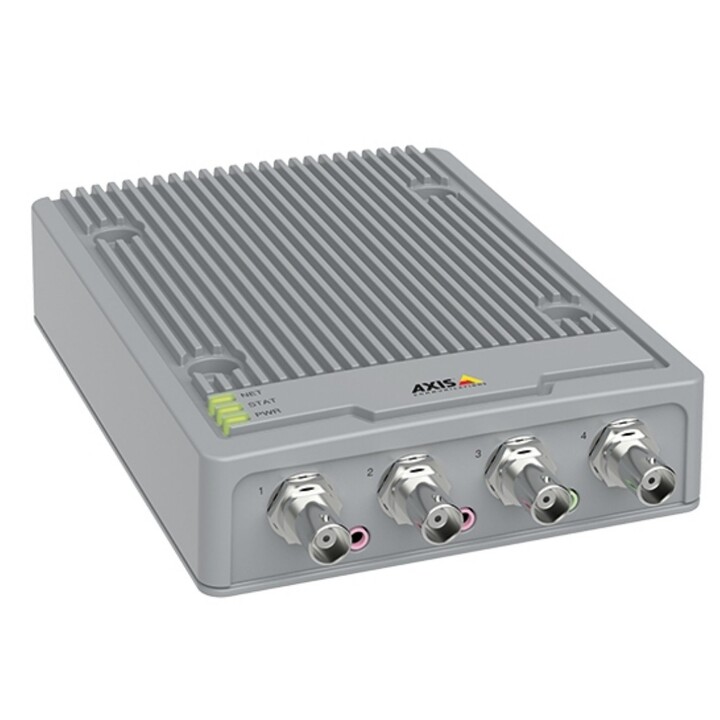

Axis 01680-001 Video Server and Encoder 1920 x 1080 Pixels 30 fps

The AXIS P7304 Video Encoder is a high-performance 4-channel analog-to-IP video encoder designed for professional video surveillance applications. It supports HD analog inputs with a maximum resolution of 1920 x 1080 pixels at 30 frames per second, delivering clear and detailed video streams.

This external video encoder is compatible with multiple video compression formats including H.264 (Baseline, Main, High), H.265 (HEVC) Main profile, MPEG-4, and Motion JPEG, ensuring efficient bandwidth usage and storage. It also supports audio codecs such as 24-bit LPCM, AAC-LC, G.711, G.726, and Opus for two-way audio communication.

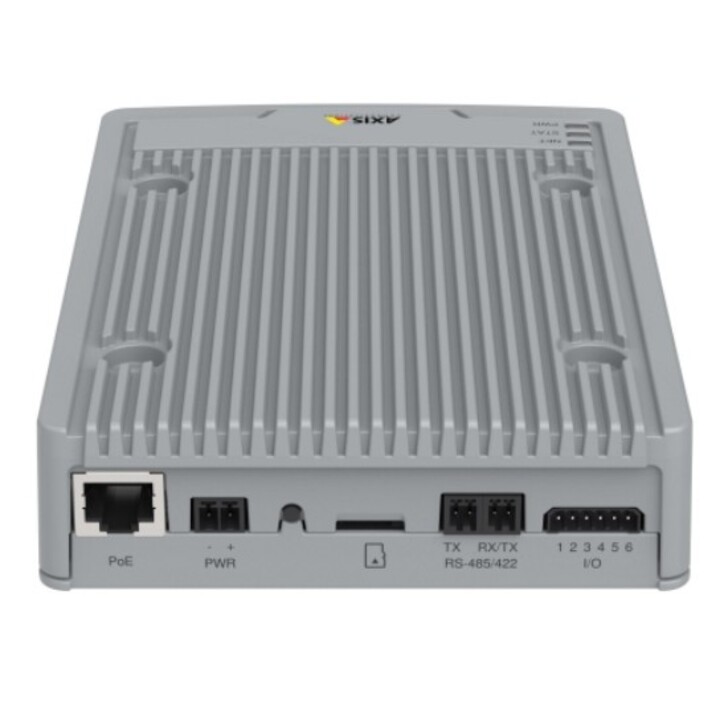

Equipped with Power over Ethernet (PoE) support (802.3af/at Type 1 Class 3), the AXIS P7304 simplifies installation by reducing cabling requirements. It features four BNC video input ports, audio input/output jacks, and RS-422/485 camera control interfaces for PTZ functionality.

The device includes a microSD/microSDHC/microSDXC card slot for edge storage and supports ONVIF Profiles G, S, and T for seamless integration with various video management systems. Its robust design with IP30 durability rating ensures reliable operation in indoor environments within a temperature range of 32°F to 122°F.

Additional features include a built-in web server, DDNS support, and extensive network protocol compatibility such as IPv4/IPv6, HTTP/HTTPS, SSL/TLS, FTP/SFTP, SMTP, and more. The AXIS P7304 is an ideal choice for upgrading analog surveillance systems to IP-based solutions with high-definition video quality and advanced functionality.
