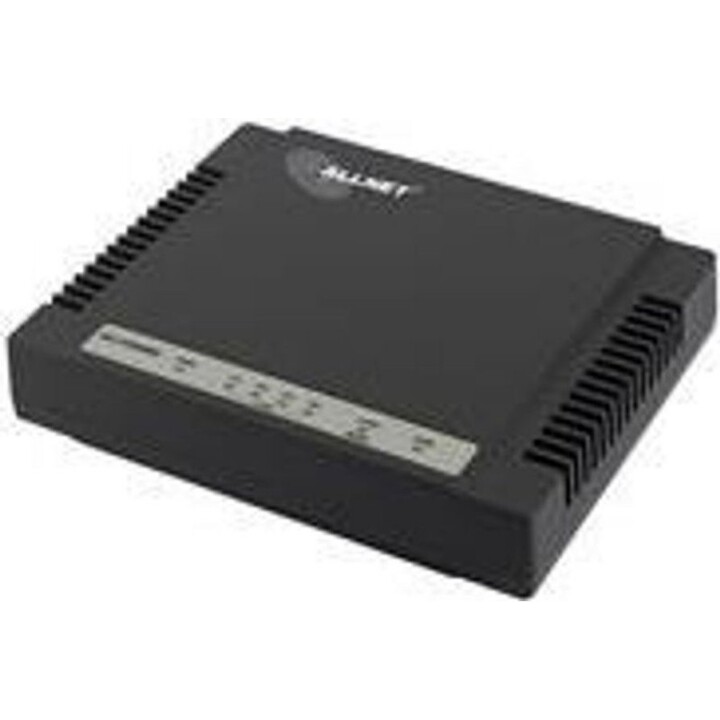

Allnet ALL126AM3, VDSL2 Master CO Modem, 4-Port 10/100 Ethernet Switch up to 100Mbps

Allnet ALL126AM3 is a VDSL2 master modem/router with an integrated 4-port 10/100Mbps Ethernet switch, designed for high-speed point-to-point DSL extensions over copper lines in SME networks.

Performance Features

Supports VDSL2 profiles up to 100 Mbps symmetrical throughput, VLAN tagging, QoS prioritization, auto-MDI/MDIX for flexible deployments with IEEE 802.1p/802.3u compliance.

Connectivity and Features

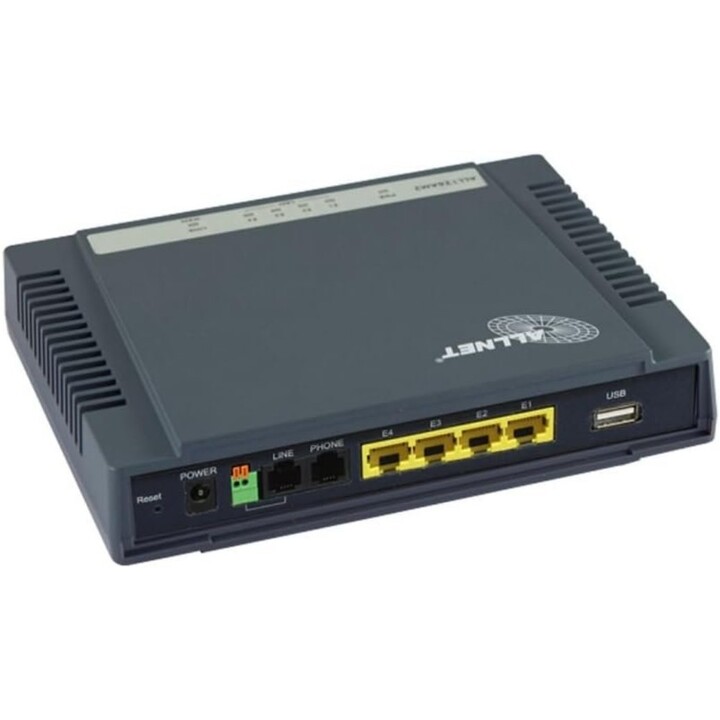

2 RJ11 ports (DSL line Annex B/POTS passthrough), 4 RJ45 LAN ports, manageable configuration via web interface for CO mode operations in ISP or last-mile enterprise connectivity.

Design and Efficiency

Compact desktop case suitable for rack or wall mounting, external 12VDC power supply, operates from 0 °C to 40 °C for reliable broadband bridge applications.
