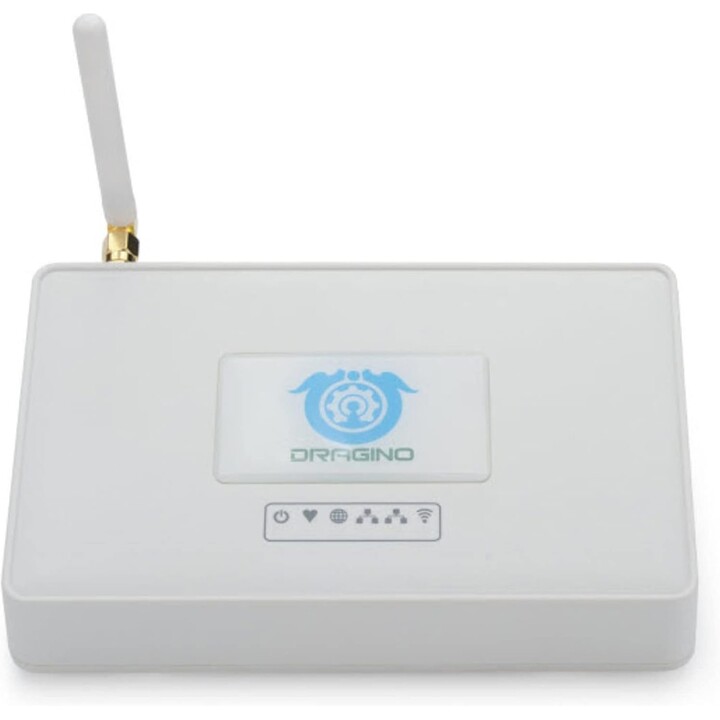

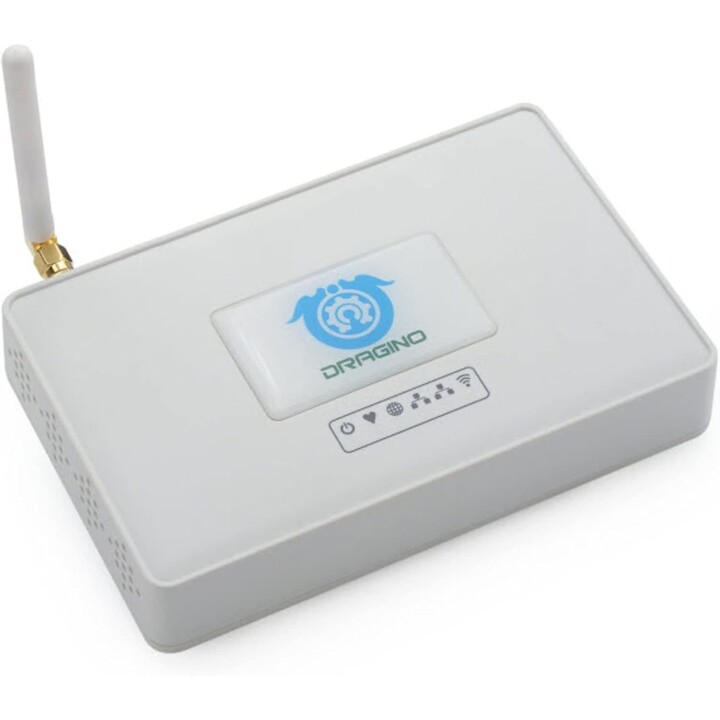

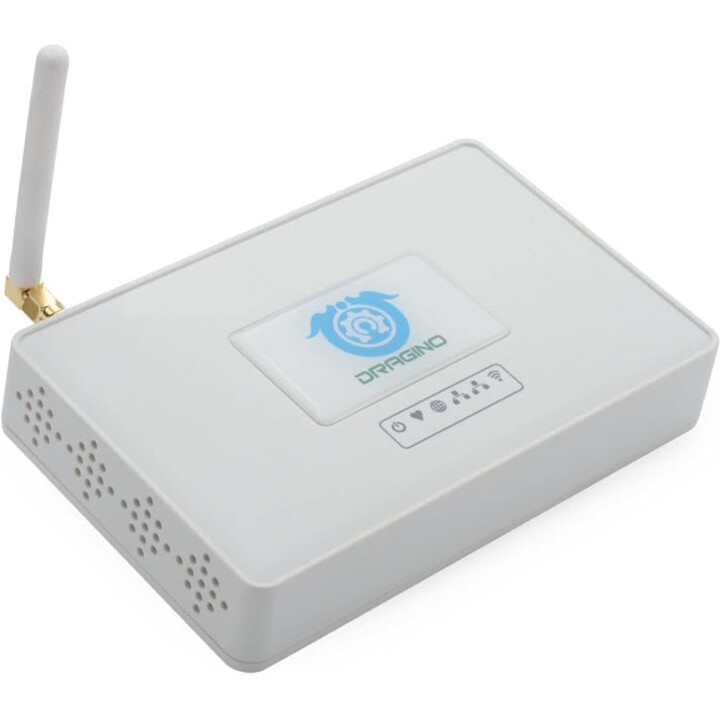

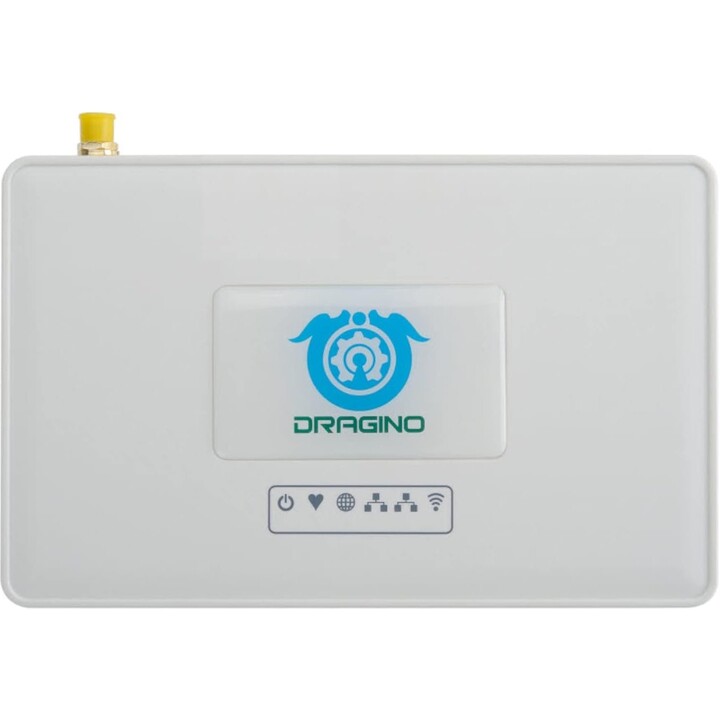

Dragino LG308N-868 Indoor LoRaWAN Gateway SX1302 + 2x SX1250, 2x 10/100 Ethernet, 802.11 b/g/n WiFi, 12V DC

Dragino LG308N-868 is an open-source indoor LoRaWAN pico gateway that operates in the EU868 band of 863-870MHz and connects LoRa sensors to IP networks via Ethernet, WiFi or optional 4G LTE for IoT applications such as smart cities and agriculture.
Performance specifications

1x SX1301 concentrator + 2x SX1257 transceivers emulate 49 LoRa demodulators with 10 parallel paths, sensitivity of -140dBm, maximum output of 27dBm, supports Semtech UDP packet forwarder and LoRaWAN Station mode.

Connectivity and features

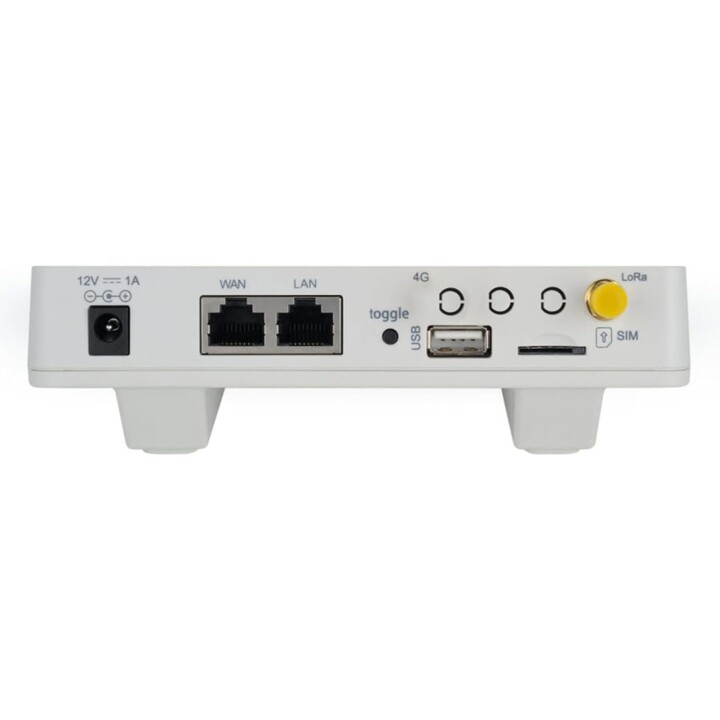

2x 10/100Mbps Ethernet (RJ45), 802.11b/g/n WiFi (2.4GHz), 1x USB 2.0 host, optional Quectel EC25 4G LTE module with micro-SIM, web GUI/SSH management, preconfigured bands, auto-provisioning.

Design and efficiency


400MHz CPU, 64MB RAM, 16MB flash, 12V/1A DC input, operation from -40°C to 80°C (0-99% RH), compact white housing (150x50x100mm, 192g) for indoor deployments.
