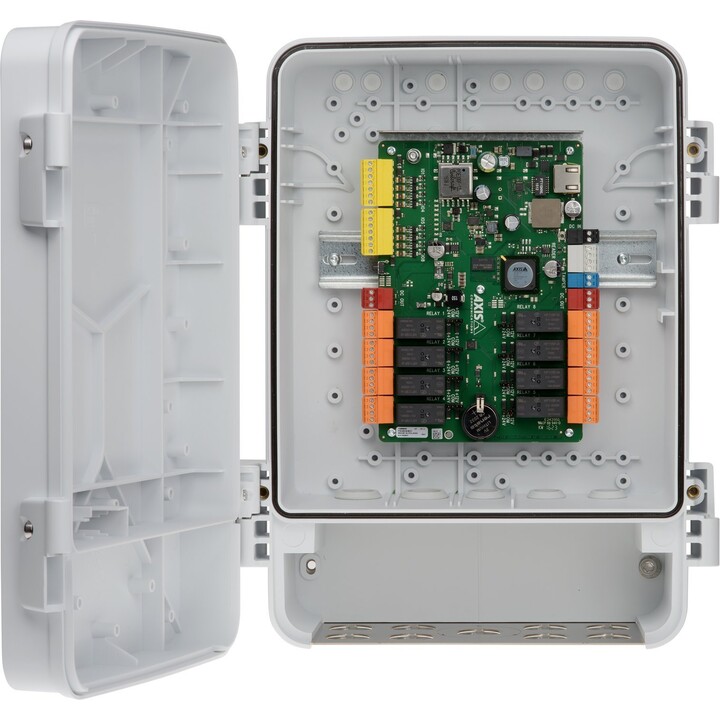

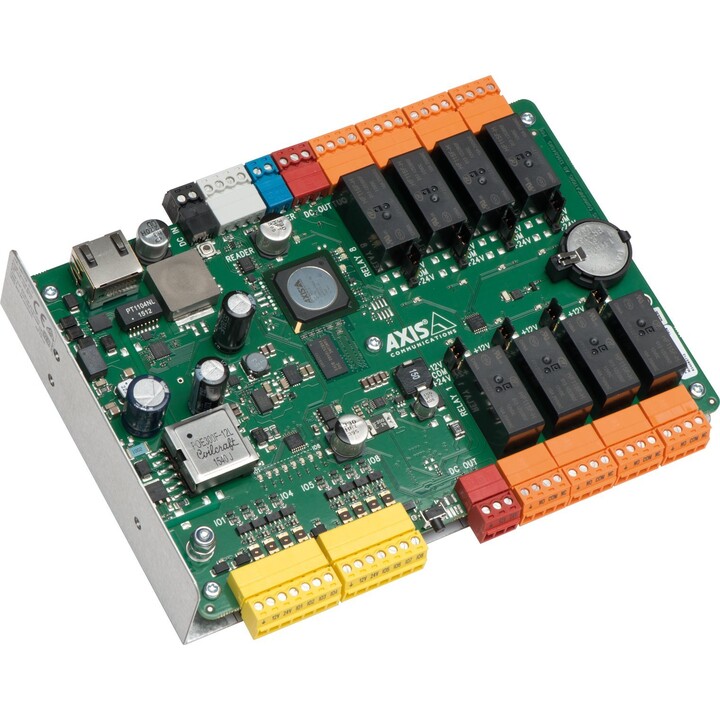

Axis A9188 Network I/O Relay Module (0820-001): 8 Supervised I/Os, 8 Form C Relays, PoE+/DC 8-28V Input, 12/24V DC Output, -30°C

The AXIS A9188 (0820-001) is a network I/O relay module featuring 8 configurable I/Os (supervised inputs/outputs) and 8 C-form relays to extend the automation capabilities of Axis camera systems and Axis access control installations.

Features

• 8x digital I/Os (0-40V DC input, 100mA open-drain output, 4-state supervision 0-12V), 8x relays (1A/48V DC max, NO/NC contacts), event history for 30,000 triggers.

• Supports VAPIX/ACAP protocols, tampering detection, and event actions via email/HTTP/TCP.

Connectivity and Specifications

• PoE+ (Class 4), 8-28V DC input, 12/24V DC output (up to 12W), RJ45 Ethernet, RS485 (future), terminal blocks for easy wiring.

• Password protection, HTTPS, IEEE 802.1X security.

Design and Efficiency

• Compact, DIN rail or wall mountable (43x186x120 mm, 500g), operating temperature -30°C to 55°C, 20-85% RH.

A versatile module for door control, alarms, and sensor integration in surveillance networks.
