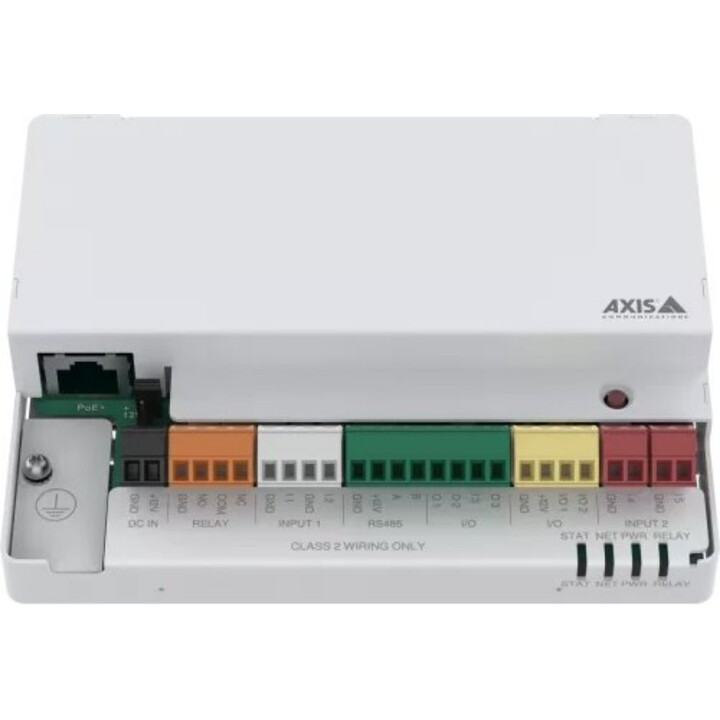

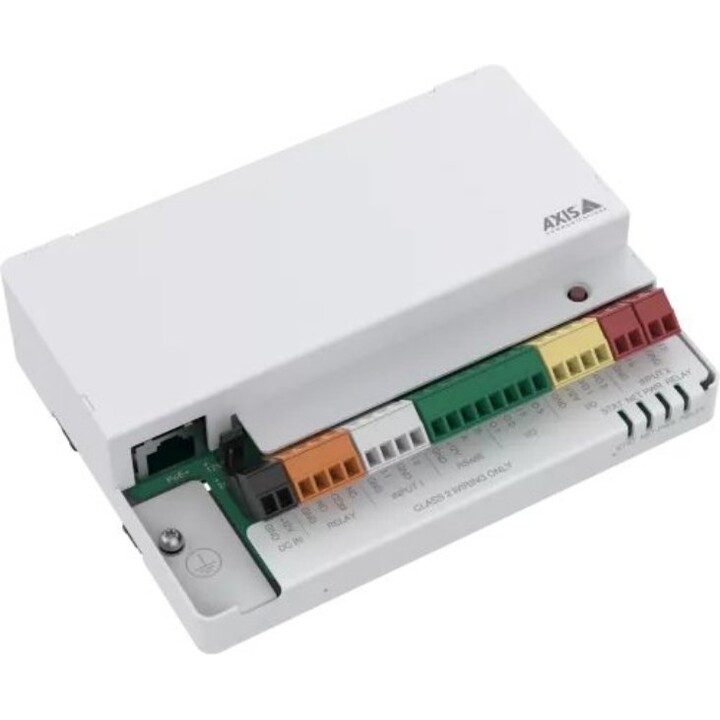

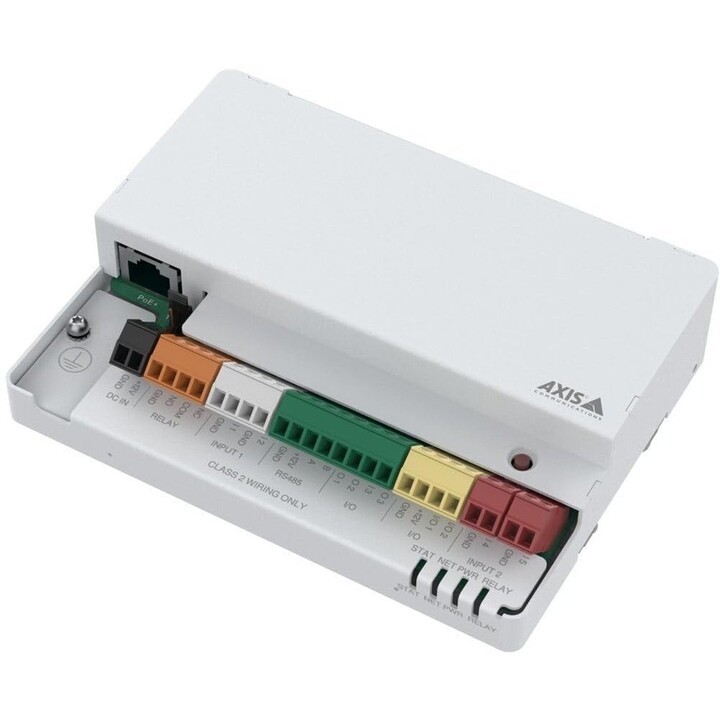

Axis A9210 (02861-001): Network I/O Relay Module, 10 I/O Ports (2 Configurable I/O, 5 Inputs, 3 Outputs), 1 Form C Relay

Axis A9210 (02861-001) is a network I/O relay module from Axis Communications designed to expand input/output functions in security and access control systems with supervised ports and relay support.

Features

• 10 I/O ports including 2 configurable I/O, 5 supervised inputs (0-30 V DC), 3 outputs, and 1 Form-C relay (up to 2 A/30 V DC).

• Supports up to 128 I/O and 64 relays via AXIS A9910 expansion, Modbus sensors, and MQTT for IoT integration.

Connectivity and Functions

• PoE (IEEE 802.3at Class 4) or 12 V DC power supply, 10/100 Ethernet, RS485 interface, VAPIX/ACAP platforms, Axis Edge Vault security.

• Temperature monitoring, door control, UL294 certified.

Design & Efficiency

• Compact white enclosure (8 x 5 x 1.2 cm, 1 kg) operating from -40 °C to 55 °C, with a 5-year warranty.
