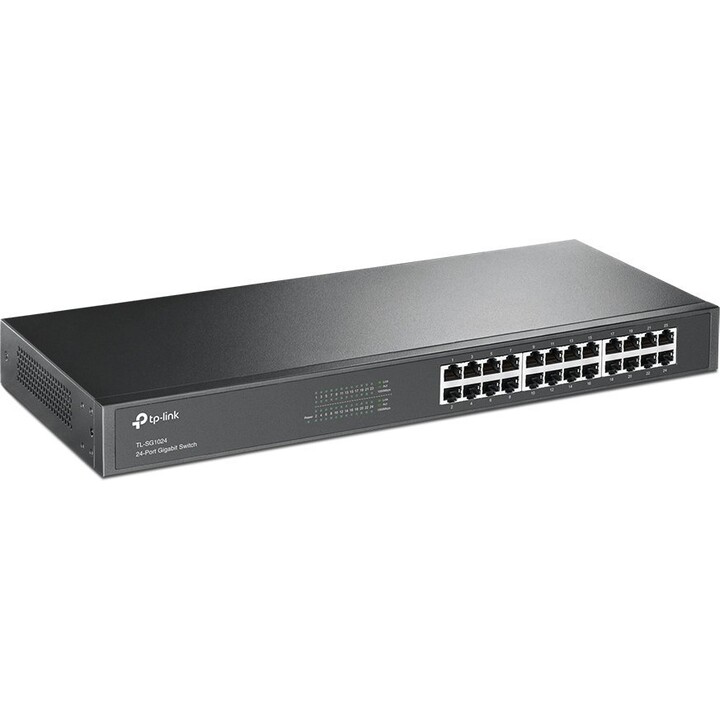

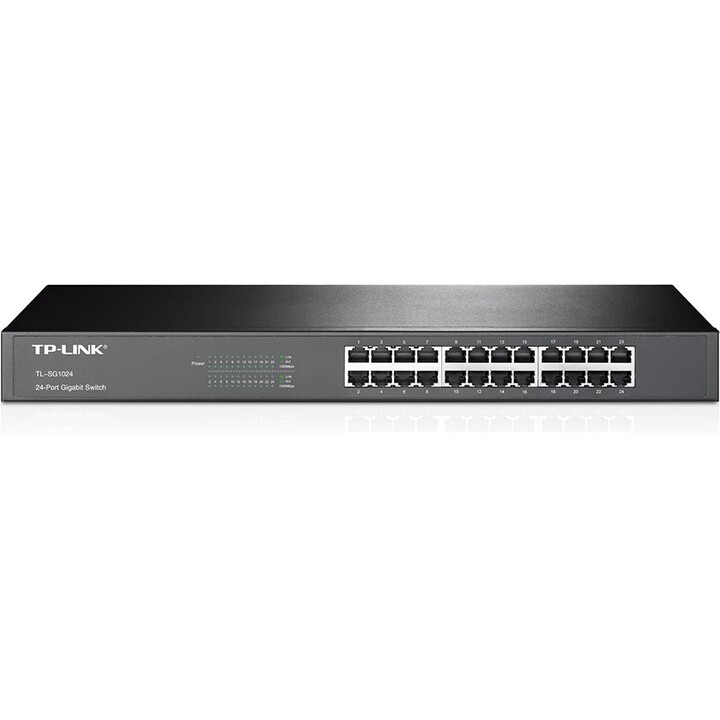

TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch

TP-Link TL-SG1024 Switch

The TL-SG1024 (1210002616799) is a professional-grade network infrastructure hardware unit engineered to provide high-fidelity data distribution and integrated system oversight within a durable Black metallic industrial design. Driven by high-performance non-blocking switching architecture and a specialized 48 Gbps switching capacity framework, this system utilizes 24 10/100/1000 Mbps RJ45 ports to manage data-intensive network multitasking and high-frequency digital workflows with total fluidity. The hardware features specialized Green Technology and Auto-MDI/MDIX synchronization, providing a clear and precise technical workspace for optimized energy efficiency and collaborative hardware oversight across diverse enterprise, SMB, and server room environments. Equipped with IEEE 802.3x flow control and 802.1p/DSCP QoS protocols, the system ensures rapid responsiveness and stable performance for complex digital infrastructures requiring consistent signal integrity and 10KB Jumbo frame throughput for large file transfers. Housed in a durable 440 x 180 x 44 mm 19-inch rack-mountable steel chassis with a fanless passive cooling architecture, the unit includes plug-and-play installation and specialized MAC address self-learning for superior signal integrity during critical high-bandwidth technical operations. Featuring a 35.7 Mpps packet forwarding rate and an internal universal power supply for high-speed technical utility, this reliable hardware serves as a sophisticated centerpiece for any high-performance professional infrastructure requiring robust structural integrity and efficient wired bandwidth delivery.

Technical Specifications

- Model: TL-SG1024

- EAN: 1210002616799

- Device Category: Unmanaged Layer 2 Switch

- Ports: 24 x 10/100/1000Mbps RJ45 Ports

- Switching Capacity: 48 Gbps

- Forwarding Rate: 35.7 Mpps

- MAC Address Table: 8K

- Jumbo Frame: 10 KB

- Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

- Advanced Features: Green Technology, 802.1p/DSCP QoS, Store-and-Forward

- Cooling: Fanless (Passive)

- Mounting: 19" Rack Mountable (Standard 1U)

- Power Supply: 100-240VAC, 50/60Hz (Internal)

- Power Consumption: Max 13.1W (220V/50Hz)

- Heat Dissipation: 44.7 BTU/h

- Certification: FCC, CE, RoHS

- Dimensions: 440.0 mm x 180.0 mm x 44.0 mm

- Finish: Black
