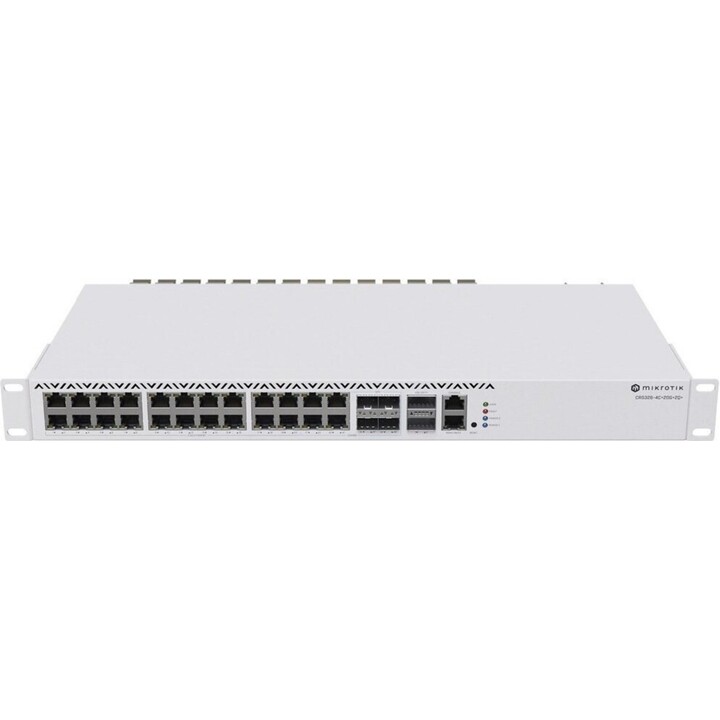

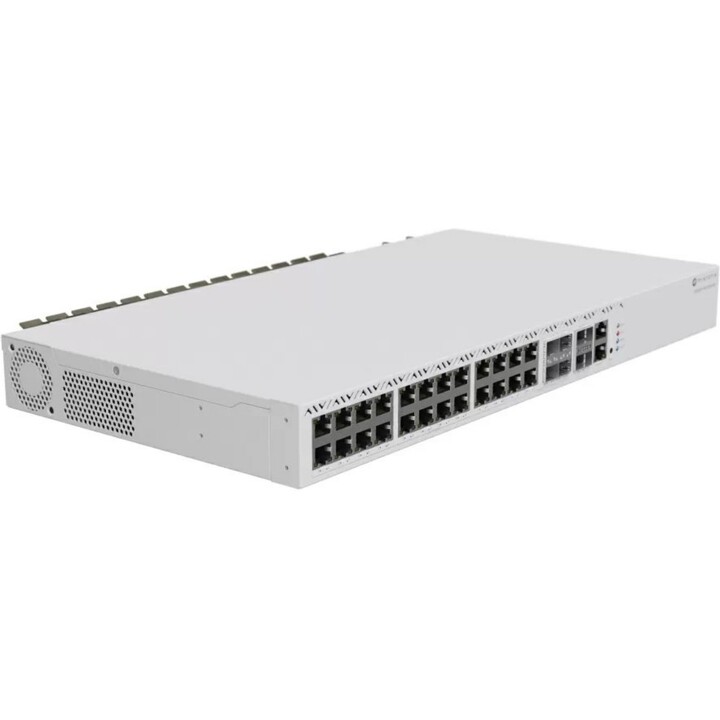

MikroTik CRS326-4C+20G+2Q+RM 20x2.5GbE 4xCombo 10G SFP+ 2x40G QSFP+ Rackmount Switch

MikroTik CRS326-4C+20G+2Q+RM Cloud Router Switch

The MikroTik CRS326-4C+20G+2Q+RM is a high-performance, rack-mountable managed switch designed for enterprise networks and data centers requiring significant throughput. This unit features 20 Gigabit Ethernet ports and four Combo ports that can be used either as Gigabit Ethernet or SFP for fiber connectivity. To handle high-speed uplinks, the switch is equipped with two 40 Gbps QSFP+ ports, providing substantial backbone bandwidth. Powered by a 650MHz 98DX8332 CPU and 1GB of RAM, the device supports "Dual Boot" functionality, allowing users to choose between the simplified SwitchOS (SwOS) or the feature-rich RouterOS (v7). The hardware includes redundant power supplies to ensure high availability and a dedicated management port for secure configuration.

Technical Specifications

* Model: CRS326-4C+20G+2Q+RM

* EAN: 4752224008930

* CPU: 98DX8332 650 MHz (Single-core)

* RAM: 1GB DDR4

* Storage: 32MB Flash

* Ethernet Ports: 20x 10/100/1000 Mbps RJ45 ports

* Combo Ports: 4x (1G Ethernet or SFP)

* QSFP+ Ports: 2x 40 Gbps QSFP+

* Operating System: RouterOS v7 / SwOS (Dual Boot)

* Power Input: 2x AC inputs (Redundant), 100-240V

* Max Power Consumption: 69 W

* Form Factor: 1U Rackmount

* Features: Layer 3 hardware offloading, Management port, Reset button
