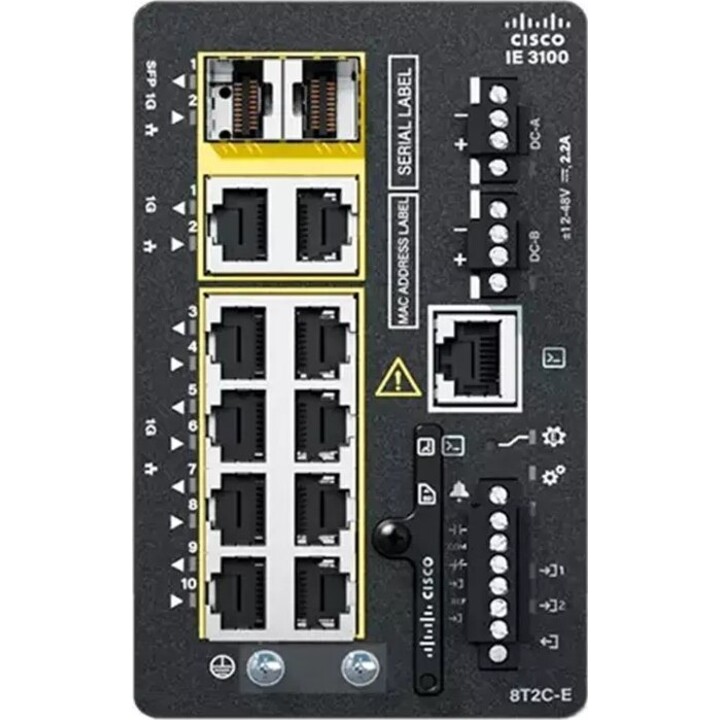

IE3100 w/8GE Copper - 2GE Combo - Fixed sys - Network Essentials

Main specifications:

• 8 Gigabit Ethernet (RJ45, copper) 10/100/1000 Mbps ports.

• 2 Gigabit Ethernet combo ports (SFP or RJ45).

• Standard licence: Network Essentials.

• Switching capacity: 10 Gbps; forwarding rate: up to 14.88 Mpps.

• RAM: 4GB; MAC table: 8,000 addresses; VLAN: 256; IGMP: 512 groups.

• Redundant power: supports dual DC input (12-48 V nominal; accepts 9.6-60 V DC).

• Typical power consumption: Up to 20 W depending on configuration and traffic.

• Fanless operation, DIN-rail mountable, compact (12.7 × 7.6 × 11.1 cm), weight: 0.86 kg.

• Input/output alarms, SD slot, serial console and microUSB.

• Security and management: ACL, 802.1X, LACP, STP/MRP/REP, QoS, SNMP, RESTCONF/NETCONF, Cisco DNA Center and modern WebUI.

• Standards: IEEE 802.3u/z/ab/ad/at/bt, 802.1Q/p/w/x/s/d, LLDP, IEEE 1588v2/1613.
