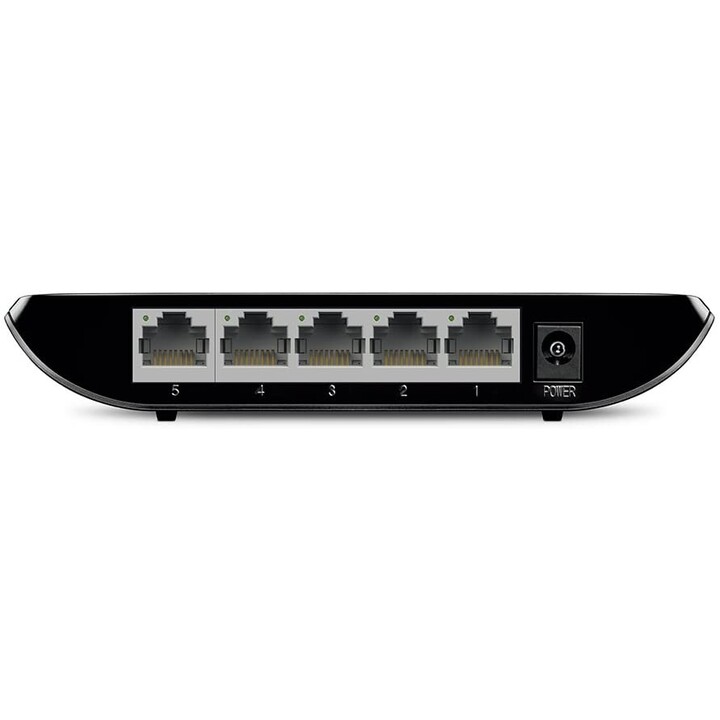

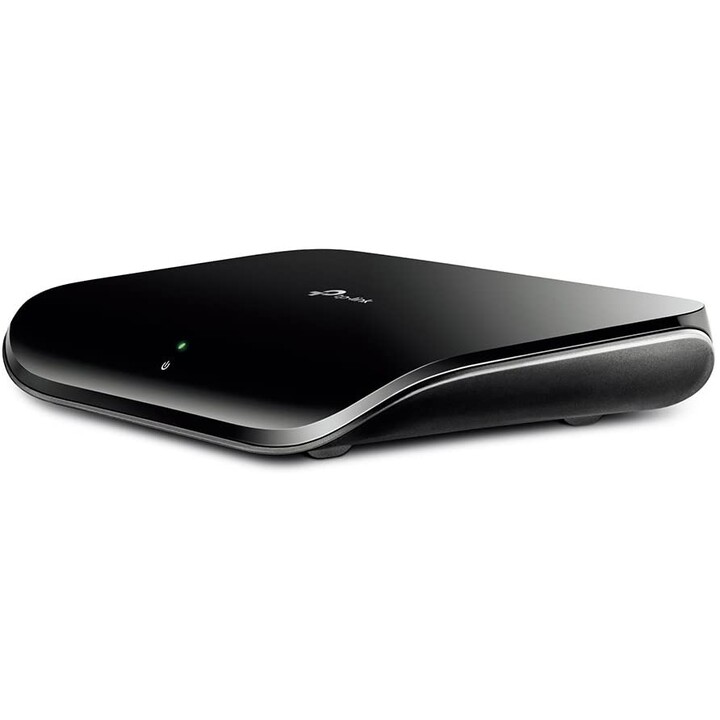

TP-LINK TL-SG1005D Switch 5 Ports Black

The switch Ethernet Gigabit TL-SG1005D 5 port offers you an update economic, easy-to-use, high performance and perfectly integrated into its old network a network to 1000Mbps.Aumente the speed of your server's network and connections trunk (backbone) and make Gigabit to the desktop. Users in the office, home, workgroup, or creative production environment can now send files heavier, requiring higher bandwidth, faster. It is transmitted almost instantly graphics, CGI, CAD, or multimedia files, and other applications that need to transmit large files across the network. The TL-SG1005D has technology Green Ethernet.Puede automatically disconnect ports without link, and economical way to calculate output power for different cable lengths. Green Ethernet technology, the TL-SG1005D helps you save energy and costs. Features:

• Green Ethernet technology, saves energy and costs
• It supports flow control IEEE802.3X for full-duplex and backpressure for half-duplex mode mode
• Architecture of non-blocking switching that sends and filters out packets at the speed that allows the cable for maximum performance.
• Support self-learning and auto-update the MAC address
• Housing of plastic, design for desktop or wall installation
• External power adapter supply

Specifications:?

• Standards and protocols IEEE802.3, 802.3U, 802.3ab, 802.3 CSMA/CD, TCP/IP x
• Basic functions
  • Wire-speed performance
  • MAC address with self-learning and autoenvejecimiento
  • Flow control IEEE802.3X for Full-duplex mode and backpressure for Half-duplex mode
• Backbound bandwidth 10Gbps
• 1 k MAC address table
• Forwarding rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
  • 1000Base-T: 148800pps/port
• Transmission method ?Store-and-Forward (storage and retransmission)
• 5 port RJ45 ports with auto-negotiation to 10/100/1000Mbps (Auto MDI/MDIX)
• Network media
  • 10BASE-T: UTP Cable category 3, 4, 5 (maximum 100m)
  • EIA/TIA-568 100u STP (maximum 100m)
  • 100base-Tx: UTP Cable category 5, 5e (maximum 100m)
  • EIA/TIA-568 100u STP (maximum 100m)
  • 1000Base-T: UTP Cable category 5, 5e (maximum 100m)
• LED indicators Ignition, connection/activity (100M, 1000M)
• Safety and emissions FCC, CE
• Dimensions (width by depth by height) 6.5 * 4.3 * 1. 1 in. (165 * 108 * 28 mm)
• Environment
  • Temperature operating 0 ~ 40 (32 ~ 104)
  • Storage temperature - 40 ~ 70 (- 40 ~ 158)
  • Operating humidity: 10% ~ 90%, non-condensing
  • Storage humidity: 5% ~ 90%, non-condensing
• Power External power adapter
