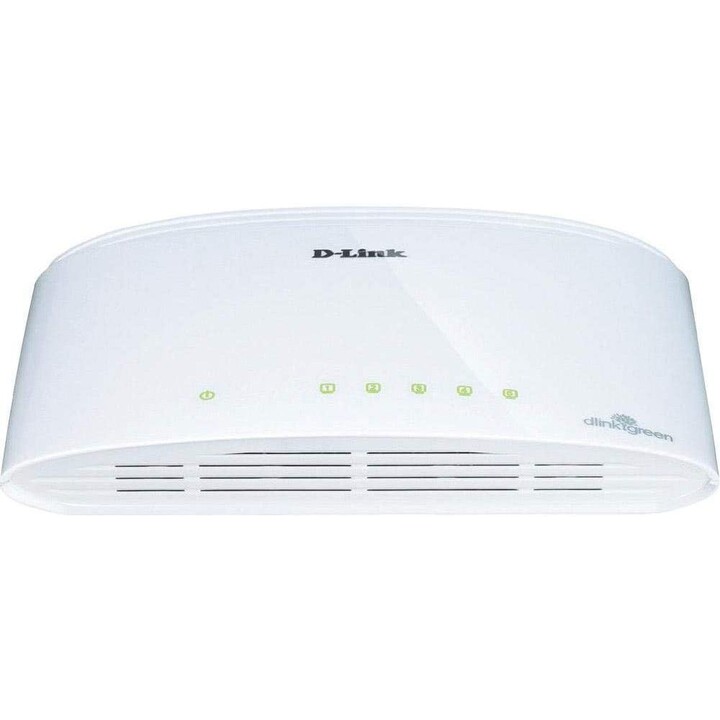

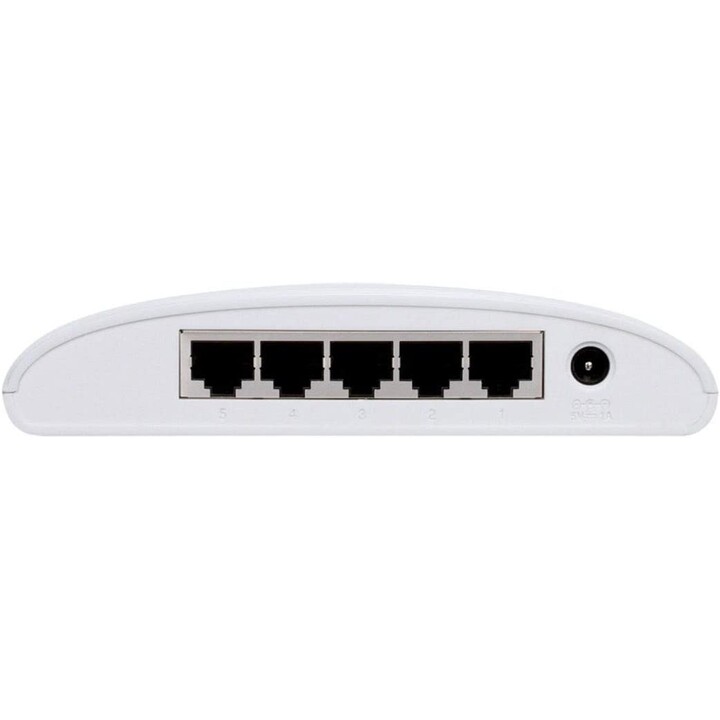

D-link DGS-1005D Switch 5 Ports White

General description

• Powerful yet easy to use, these switches allow up to 5 computers or network devices Gigabit connection.
• Up to 73% energy saving * with D-Link Green technologies.
• High performance devices.
• Save space and money.
• Flow control.

The D-Link DGS - 1005 d, a switch from desktop with 5 ports 10/100/1000Mbps, offering high performance in a device that allows us to save space and money. Another feature in this switch is that all ports automatically negotiate the setting mode MDI/MDIX (Up-Link), avoiding the need to create cross-pair cables. Standards The DGS-1005 d Switch supports IEEE 802.3 10BASE-T, 100BASE-TX 802.3U, 802.3ab 1000BASE-T and 803.3x flow control. This switch is equipped to auto negotiate speed to 10Mbps, 100Mbps and 1000Mbps.Flow Controlthe Switch DGS-1005 d, in Full-Duplex mode, allows you to protect users against possible data loss during transmission on the network. When they are connected to a LAN (in a server or PC) card that supports flow control, and when the data buffer is filled, the switch sends a signal to the computer indicating such a situation. Then, the PC delay transmission until the buffer is released and can be sending more information. Installation plug and play The only thing that has to be done is to connect the wires to the switch. All ports support both cables straight-through as a crossover, which eliminates the need for an uplink port. Given the 10/100/1000 Mbps autosensibles, no configuration is required. D-Link Green energy saving technologies It incorporates new technologies of energy saving. To detect if connected devices are turned on or off and to estimate the length of the cord, the switch is able to adjust its energy consumption, which means a saving of up to 73% *.

• Specifications
  • Table with 5 ports 10/100/1000 Mbps Gigabit switch
  • Auto-uplink MDIII / MDI-X
  • Auto-negotiation full / half duplex
  • Flow control
  • Dimensions: (l) 193 x 118 (w) x 30 (height) mm
  • Without fan
