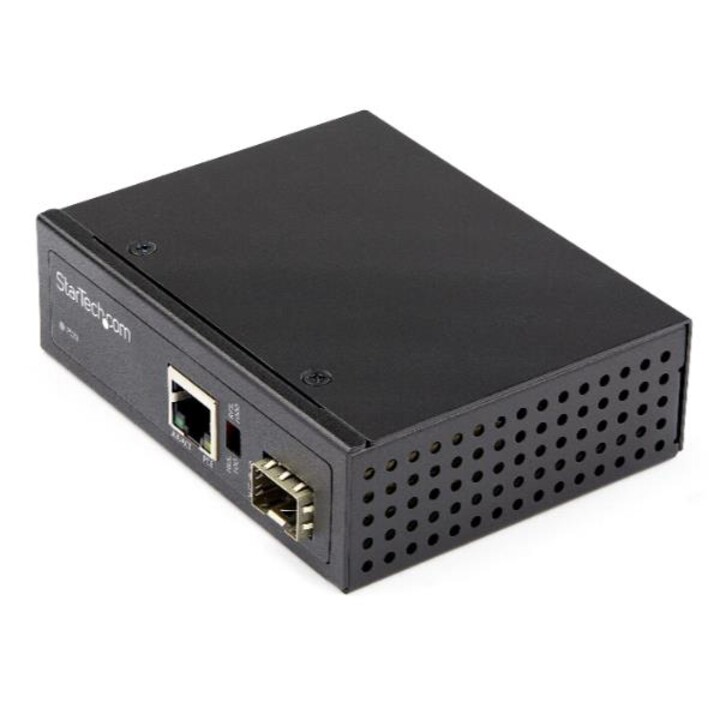

STARTECH.com IMC1GSFP60W Industrial Fiber to Ethernet Media Converter PoE+ 60W

ethernet media converter

The StarTech.com IMC1GSFP60W is a versatile industrial Ethernet media converter that bridges fiber optic and copper networks. It features one open SFP slot and one RJ45 port, enabling seamless conversion between 1000 Mbps fiber and 10/100/1000 Mbps copper Ethernet. With an integrated PoE+ PSE, it can deliver up to 60W of power to connected devices such as IP cameras, sensors, and wireless access points, eliminating the need for separate power injectors.

Designed for demanding environments, this media converter is housed in a rugged IP30 aluminum case and supports a wide operating temperature range from -40°C to 75°C. It can be mounted on a DIN rail or wall, making it ideal for industrial control cabinets, outdoor enclosures, and space-constrained installations. The device also supports jumbo frames up to 16K, flow control, and auto MDI/MDI-X, ensuring reliable and efficient network performance.

Power flexibility is a key feature: the converter can be powered via a terminal block (48-56V DC) or an optional standard wall adapter with a Type-N barrel connector (not included). With an MTBF of 500,000 hours, it offers long-term reliability. Whether you need to extend a fiber backbone to PoE devices or integrate legacy copper equipment into a fiber network, the IMC1GSFP60W provides a robust and flexible solution.

Características principales

• 1 Gbps SFP slot (open, MSA compliant) and 1x RJ45 port for fiber-to-copper conversion
• PoE+ PSE with up to 60W power budget, supporting IEEE 802.3af/at
• Supports multimode and single-mode fiber via SFP transceiver (not included)
• Jumbo frame support up to 16,000 bytes and flow control
• Auto MDI/MDI-X and full-duplex operation
• Rugged IP30 aluminum housing, DIN rail or wall mountable
• Wide operating temperature: -40°C to 75°C; storage: -40°C to 85°C
• MTBF of 500,000 hours

Especificaciones técnicas

Preguntas frecuentes

What types of fiber can I use with this media converter?

The open SFP slot supports any MSA-compliant SFP transceiver, allowing you to use either multimode or single-mode fiber, depending on the transceiver you install. The converter itself supports both fiber mode structures.

Can this converter power my PoE devices?

Yes, it includes a PoE+ PSE with a total power budget of up to 60W. It can power PoE, PoE+, and PoE++ devices such as IP cameras, sensors, and access points, provided the input voltage is between 48V and 56V DC.

How is the device powered?

The converter can be powered via a terminal block (48-56V DC) or an optional standard wall adapter with a Type-N barrel connector (not included). It does not include a power adapter.

Is this media converter suitable for outdoor or industrial use?

With an IP30 aluminum housing and an operating temperature range of -40°C to 75°C, it is designed for harsh environments. It can be mounted on a DIN rail or wall, making it suitable for industrial cabinets and outdoor enclosures (additional protection may be required for direct exposure).

Es para ti si...

• You need to extend a fiber network to copper Ethernet devices at 1Gbps speeds.
• You want to power PoE devices (up to 60W) directly from the media converter without a separate injector.
• You require a rugged, industrial-grade converter that can withstand extreme temperatures and vibrations.
• You need flexible mounting options (DIN rail or wall) in a control cabinet or enclosure.
• You value a reliable solution with a high MTBF and a 2-year warranty from StarTech.com.
