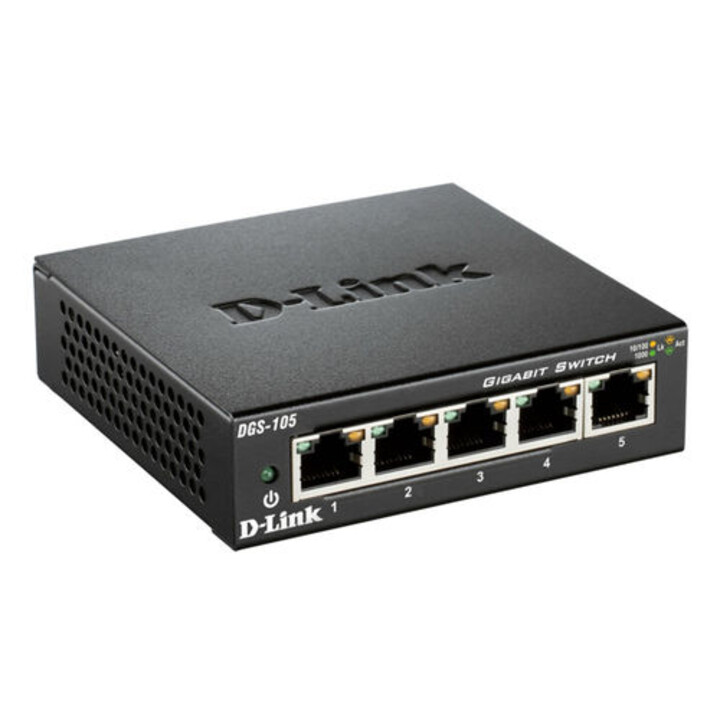

Switch D-Link Dgs-105 5Ptos 10/100/1000

MANAGEMENT FEATURES
Switch Type: Unmanaged
Quality of service (QoS) support: Yes

PORTS AND INTERFACES
Number of basic RJ-45 Ethernet switch ports: 5
Electrical connector: DC input jack

CONNECTION
Network standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Bidirectional full (Full duplex): Yes
Flow control support: Yes
Auto MDI / MDI-X: Yes

DATA TRANSMISSION
MAC address table: 2000 entries
Switching capacity: 10 Gbit / s
Supported transfer rates: 10/100/1000 Mbps
Save and forward: Yes
Transfer rate (max): 1 Gbit / s
Jumbo Frames, support: Yes
Packet buffer: 0.128 MB

SAFETY
MAC address filter: Yes

DESIGN
Rack mountable: No
Color of product: Black
Housing Material: Metal
LED Indicators: Link, Power, Yes
Certification: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

PERFORMANCE
Mean time between failures: 1688338 h

ENERGY CONTROL
Input current: 1 A
Power consumption: 3.10 W

ENVIRONMENTAL CONDITIONS
Operating temperature range: 0 - 50 ° C
Storage temperature range: 10 - 70 ° C
Relative humidity range for operation: 10 - 90%
Relative humidity range during storage: 5 - 90%
Heat dissipation: 6,854 BTU / h

WEIGHT AND MEASUREMENTS
Weight: 286g

OTHER FEATURES
Data transfer rate: 2000 Mbit / s
Dimensions (Width x Depth x Height): 100 x 98 x 28 mm
Connectivity technology: Wired
Input voltage: 5V
