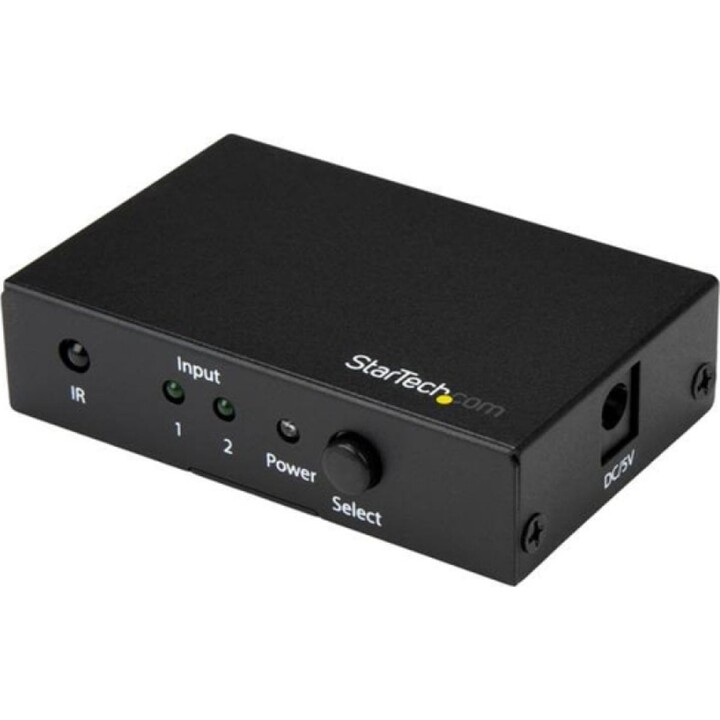

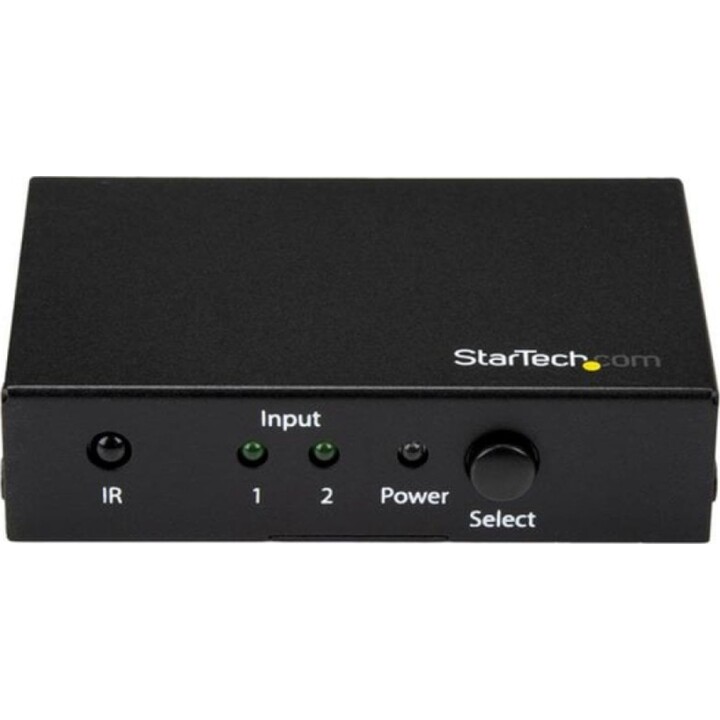

Startech Switch 2-Port HDMI Switch 4K 60Hz

This HDMI switch lets you take advantage of the HDR (High Dynamic Range) capabilities of your HDMI 2.0 video sources and output them to your 4K60 UHD display. Unlike many 4K switches that only support 30Hz refresh rates, this switch works with HDMI 2.0 displays with output resolutions up to 3840 x 2160p at 60Hz.

Don't be fooled by a mere twist on outdated technology. Many HDMI switches are 4K compatible, but only operate at a 30Hz refresh rate, or even claim 60Hz but actually heavily compress the signal to a 4:2:0 color intensity subsampling to operate at lower bitrates. This 4K 60Hz HDMI switch utilizes the latest components to offer full compatibility with your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz and 4:4:4 color intensity subsampling. HDMI 2.0 compatibility means this switch can transmit at bandwidths of up to 18Gbps, making it the ideal video solution for high-resolution tasks.

The HDMI HDCP 2.2 switch is backward compatible with 4K 30Hz and 1080p displays, ensuring it will work with lower resolution displays such as projectors or TVs in your environment or digital signage applications.

Specs:

• Ports and Interfaces
  • Video port type: HDMI
  • HDMI version: 2.0
  • HDMI Input: 2
  • Number of HDMI outputs: 1

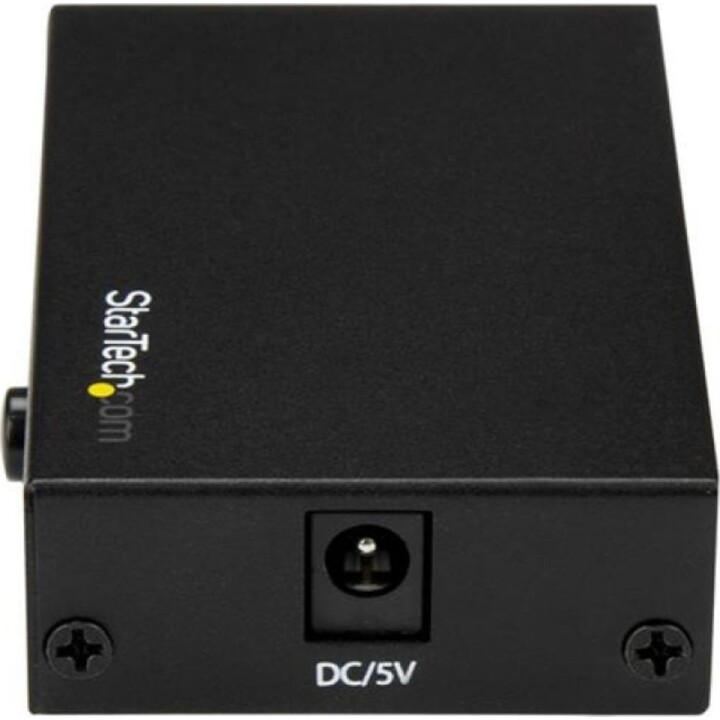

  • DC input socket: Yes

• Characteristics
  • Product color: Black
  • HDCP: Yes
  • Maximum refresh rate: 60 Hz
  • Supported graphics formats: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
  • LED Indicators: Power
  • Maximum resolution: 3840 x 2160 pixels
  • Audio output channels: 7.1 channels

• Energy control
  • AC adapter input voltage: 100 - 240 V
  • AC adapter input current: 0.4 A
  • AC adapter output voltage: 5V
  • AC adapter output current: 2 A
  • Plug type: Type H

• Regulatory approvals
  • RoHS Compliance: Yes
  • Certification: CE, FCC

• Weight and dimensions
  • Width: 50 mm
  • Depth: 80 mm
  • Height: 20 mm
  • Weight: 105 g

• Packaging
  • Package width: 217 mm
  • Package depth: 153 mm
  • Package height: 55 mm
  • Package weight: 383 g

• Package contents
  • Remote control: Yes

• Environmental conditions
  • Operating temperature range: 0 - 40°C
  • Storage temperature range: -10 - 80 °C
  • Relative humidity range for operation: 10 - 85%

• Technical details
  • Audio support: Yes
