general | |

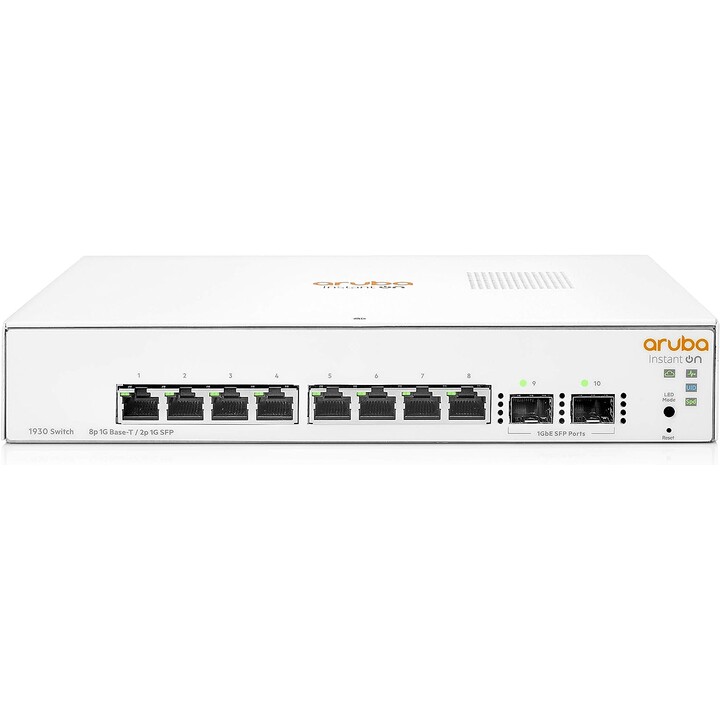

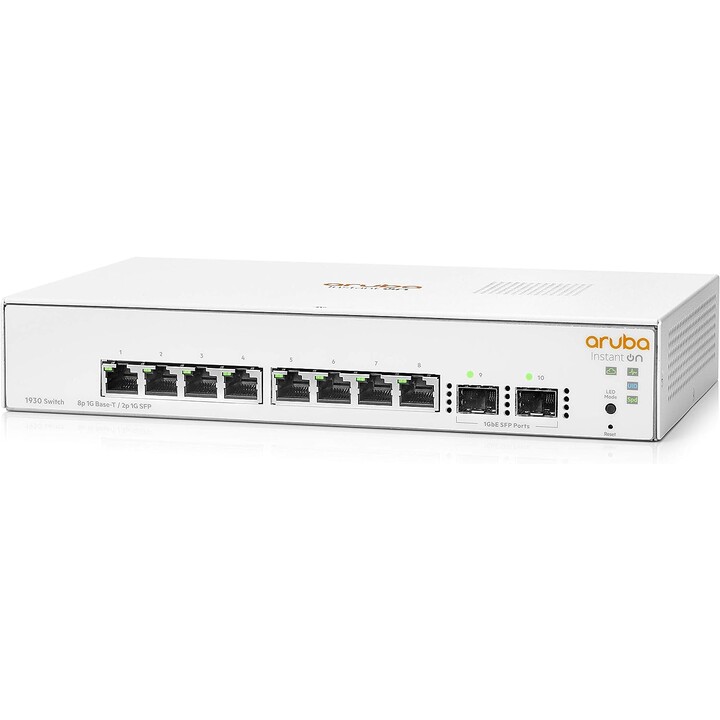

| Type of device | Switch - 10 ports - L3 - Managed |
| Type of box | 1U rack mount |
| Subtype | Gigabit ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| performance | Switching capacity: 20 Gbps ¦ Capacity: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ Supported VLANs: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC address table size | 8,000 tickets |
| Supports Jumbo shell | 9216 bytes |
| Addressing protocol | Static IP addressing |
| Remote management protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Encryption algorithm | SSL |
| Authentication method | RADIUS |
| characteristics | Flow control, DHCP support, ARP support, VLAN support, automatic upstream signal (MDI / MDI-X automatic), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, supports Spanning Tree Protocol (STP), supports Multiple Spanning Tree Protocol (MSTP), Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), with LLDP, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter |
| Regulatory compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM Cortex-A9: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash memory | 256 MB |
| Status indicators | Port status, power |
Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
Feeding | |
| Feeding device | External electrical transformer |
| Required voltage | AC 120/230 V (50/60 Hz) |
| Power consumption in operation | 11 watts |
Diverse | |
| MTBF (mean time between errors) | 178 years |
| Regulatory compliance | VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000- 4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22. 2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024: 2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1 : 2014, EN 55032: 2015 + AC: 2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035: 2017 |
| Location | English / Europe |
Dimensions and weight | |
| Width | 25.4 cm |
| Depth | 15.95 cm |
| Height | 4.39 cm |
| Weight | 820 g |
Manufacturers guarantee | |
| Service and maintenance | Limited warranty - lifetime |
Environment parameters | |
| Minimum operating temperature | 0 ° C |
| Maximum operating temperature | 40 ° C |
| Operating humidity range | 15 - 95% (40 ° C) |
| Minimum storage temperature | -40 ° C |
| Maximum storage temperature | 70 ° C |
| Storage humidity range | 15 - 95% (60 ° C) |
| Brand | HPE |
|---|---|
| Country | USA |
| Address of origin | 1701 E Mossy Oaks Rd, Spring, TX 77389, USA |
| EU responsible person | Hewlett Packard Enterprise |
| Address | Am Weißkirchener Berg 4, Eschborn, Germany, 60438 |
| [email protected] | |
| Phone | 4969153253500 |
