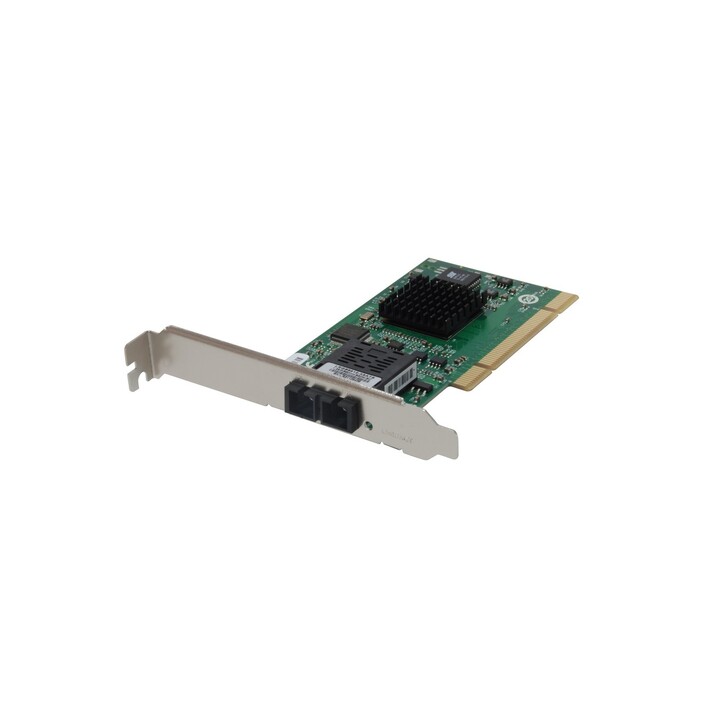

PCI fiber optic network 1000fx multimode sc level one
- High-speed fiber optic PCI network card
- Supports 1000fx multimode SC connection
- 2000 Mbps data transfer rate
- Remote LAN wake-up feature with power switch
- Compatible with personal computers
PCI fiber optic network 1000fx multimode sc level one

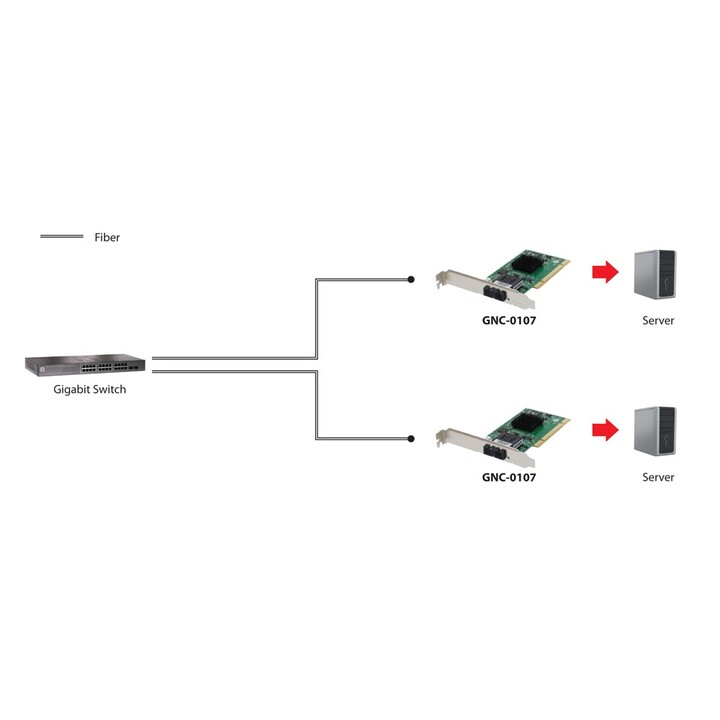

The LEVEL ONE 169-LOGNC-0107 is a high-performance PCI fiber optic network adapter designed for 1000Base-SX multimode fiber connections. It provides a reliable and fast network interface for servers and workstations requiring long-distance data transmission up to 550 meters. The card features a standard SC connector and supports full-duplex operation, ensuring efficient data flow in demanding environments.
This adapter is ideal for upgrading legacy systems with fiber connectivity, offering backward compatibility with 32-bit PCI slots. It includes a low-profile bracket for installation in compact chassis. The card is compliant with IEEE 802.3z standards and supports jumbo frames for enhanced throughput. With its robust design, it ensures stable performance in enterprise networks.
| Brand | LEVEL ONE |
| Model | 169-LOGNC-0107 |
| Type | PCI Fiber Optic Network Adapter |
| Interface | PCI (32-bit, 33/66 MHz) |
| Ports | 1 x 1000Base-SX SC |
| Fiber Type | Multimode (62.5/125 µm or 50/125 µm) |
| Maximum Distance | 550 m (with 50/125 µm fiber) |
| Standards | IEEE 802.3z, IEEE 802.3x |
| Data Rate | 1000 Mbps (full-duplex) |
| Bracket | Standard and low profile included |
| Operating Temperature | 0°C to 50°C |
| EAN | 4015867142424 |
-
