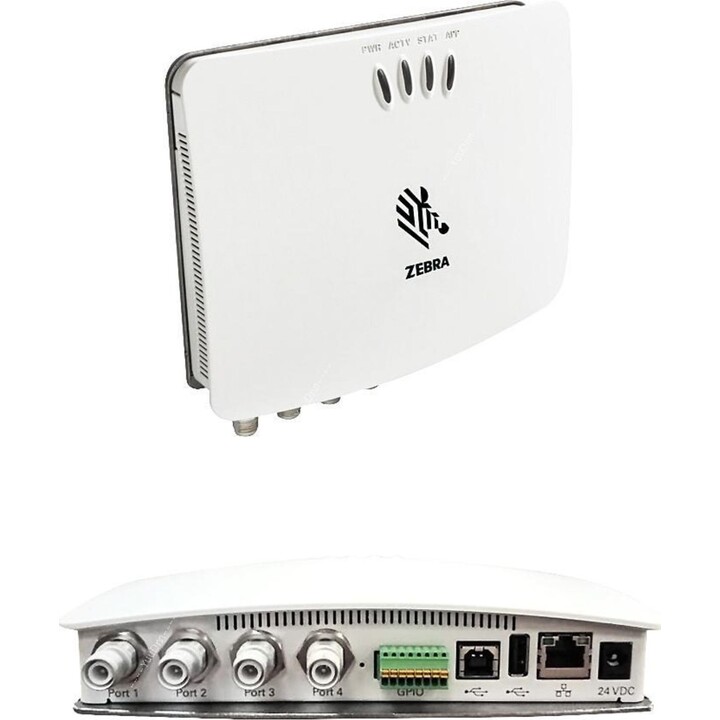

Zebra FX7500 RFID Reader
The Zebra FX7500-42325A50-WR is a high-performance fixed RFID reader designed for demanding inventory and asset tracking applications. With 4 monostatic antenna ports and a maximum output power of 30 dBm, it delivers reliable read ranges and fast tag acquisition. The reader supports Power over Ethernet (PoE) for simplified installation and is housed in an IP53-rated enclosure suitable for indoor environments.
This model features advanced interference mitigation and dense reader mode, enabling operation in challenging RF environments. It can process over 500 tags per second, making it ideal for high-throughput scenarios such as warehouse portals, conveyor systems, and retail inventory management. The FX7500 is compatible with Zebra's RFID management software and supports standard protocols like EPC Gen2 and ISO 18000-6C.
| Brand | Zebra |
| Model | FX7500-42325A50-WR |
| Type | Fixed UHF RFID Reader |
| Antenna Ports | 4 (monostatic) |
| Max Transmit Power | 30 dBm |
| Read Rate | 500+ tags/sec |
| Power Over Ethernet | Yes (PoE+) |
| Enclosure Rating | IP53 |
| Supported Protocols | EPC Gen2, ISO 18000-6C |
| Frequency | 902-928 MHz (US) / 865-868 MHz (EU) |
| Interface | Ethernet, USB, GPIO |
