Maximize the bandwidth and versatility of your professional network with this powerful 4-port multi-gigabit network card.

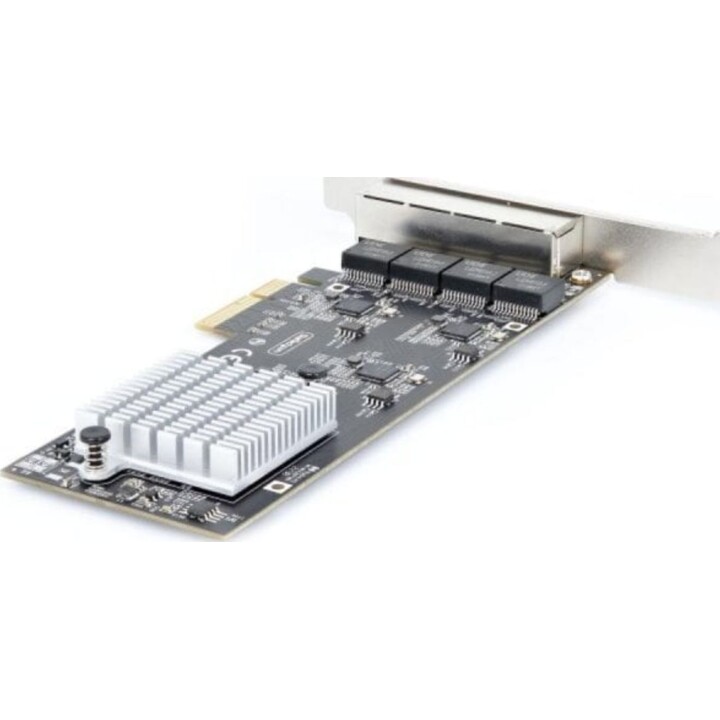

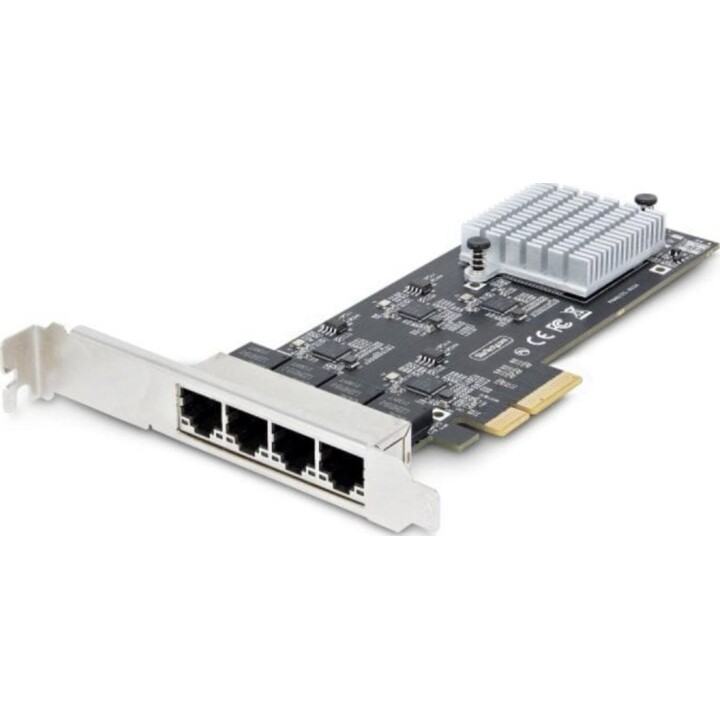

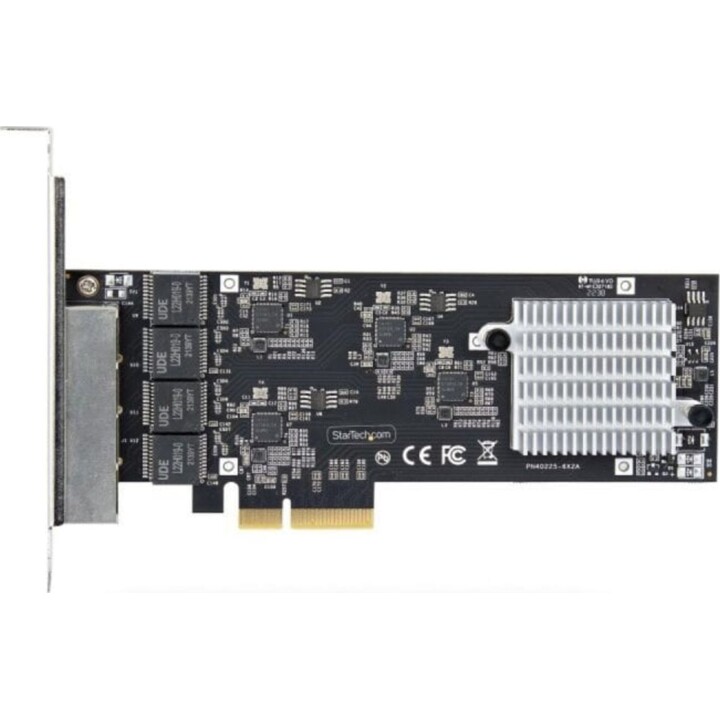

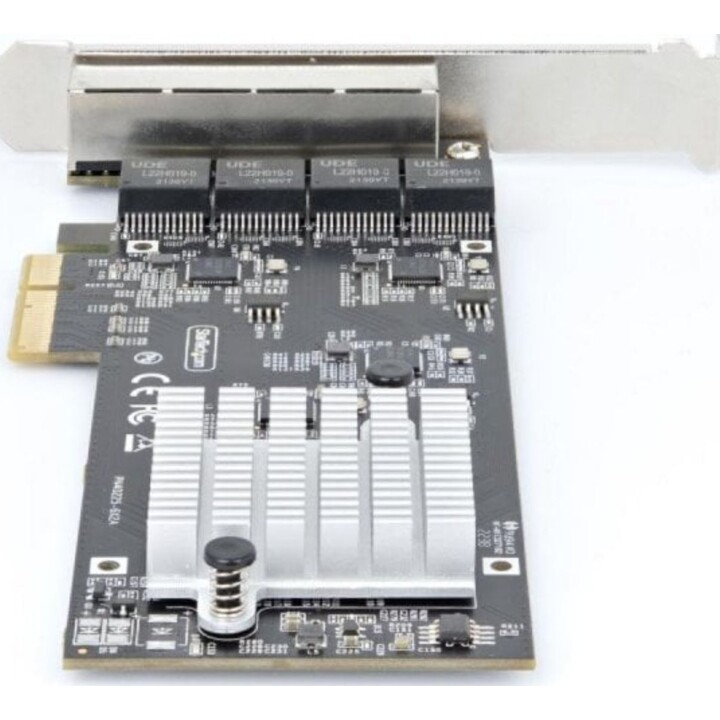

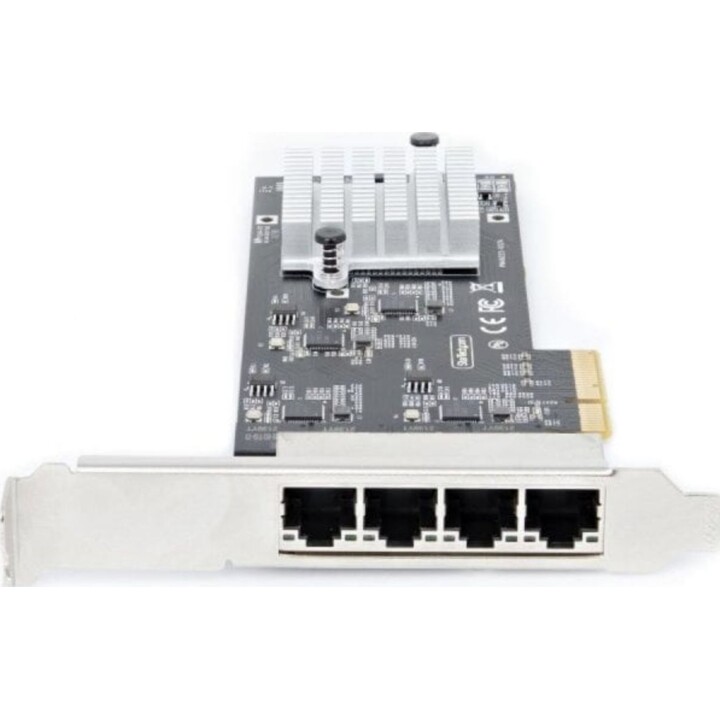

StarTech.com I225-V PCI Express 2.5G 4-Port NBASE-T Network Card Features: Low and Standard Profile
Optimize your network infrastructure with a high-performance solution thanks to the 4 independent ports managed by Intel I225-V controllers, allowing you to multiply simultaneous traffic without congestion for advanced workstations, servers, or demanding virtualization environments.
It includes NBASE-T (802.3bz) technology , which provides variable speeds (2.5 Gbps, 1 Gbps, 100 Mbps, 10 Mbps) and is fully compatible with existing Cat5e and Cat6 cables. This speeds upgrading to faster speeds without the need for rewiring, while maintaining compatibility with new or legacy hardware.
Remote management and administration thanks to Intel vPro technology and advanced features such as PXE boot, Wake-on-LAN for remote power-on, Jumbo Frame support (up to 9K) to optimize large transfers and quality of service (QoS) to prioritize critical traffic, ensuring high efficiency and control in enterprise networks.

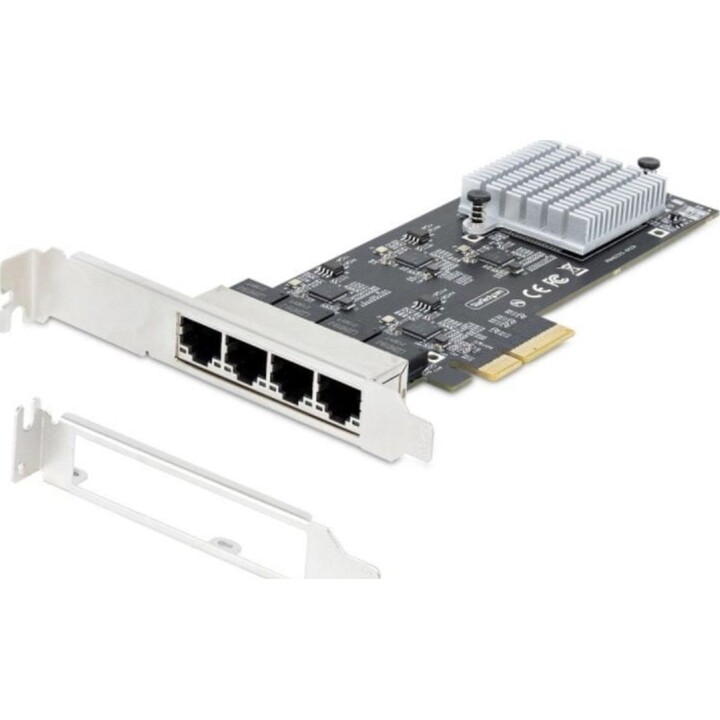

Thanks to its flexible design with standard and low-profile brackets , it's ideal for installation in towers, SFF workstations, and server racks. Its robust design and high-quality components ensure stability, durability, and full compatibility with Windows, Linux, and Windows Server.
If you're looking for scalability, compatibility, and speed in corporate LANs, NAS, shared storage, virtualization, or IT labs , this card is an essential tool for engineers, technicians, and advanced computing enthusiasts. Take advantage of four independent connections and upgrade your infrastructure without compatibility limitations or bottlenecks.
Boost the professional performance of your network environment, eliminate latency, and leverage existing cabling. Make your professional environment evolve seamlessly .
StarTech.com I225-V PCI Express 2.5G 4-Port NBASE-T Low and Standard Network Card Specifications
| Specification | Detail |
|---|
| Ethernet ports (RJ-45) |
4 |
| Maximum transfer speed |
2.5 Gbit/s per port |
| Chipset |
Intel I225-V (one per port) |
| Host interface |
PCI Express 2.0 x4 (x8, x16 compatible) |
| Wiring compatibility |
Cat5e, Cat6 (10BASE-TX/100BASE-TX/1000BASE-T/2500BASE-T) |
| Supported standards |
IEEE 802.3bz, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.3az, 802.3i, 802.1as, 802.1x, 1588 |
| Jumbo Frame |
Up to 9000 bytes |
| VLAN support |
Yes (VLAN 802.1Q tagging) |
| Wake-on-LAN (WoL) |
Yeah |
| PXE Boot |
Yeah |
| QoS (Quality of Service) |
Yeah |
| OS Compatibility |
Windows 10 and 11, Windows Server, Linux |
| Low-profile support |
Yes, it includes standard and low braces. |
| Dimensions |
180 mm x 120 mm x 22 mm |
| Weight |
100 g |
| LED Indicators |
Activity, Link |
| Operating temperature range |
0°C to 55°C |
FAQs - StarTech.com I225-V PCI Express 2.5G 4-Port NBASE-T Low and Standard Profile Network Card
Is it compatible with Linux operating systems?
Yes, the card offers official support for Linux distributions, making it suitable for servers and virtualization environments.
Can I use existing Cat5e cables to achieve 2.5 Gbps?
Yes, it supports NBASE-T over Cat5e and Cat6 cables, allowing you to upgrade performance without rewiring your network infrastructure.
Does it allow the use of Jumbo Frames and what advantages does it offer?
Yes, it supports Jumbo Frames of up to 9000 bytes, ideal for storage networks, virtualization, or massive transfers, reducing the processor load and improving efficiency.
Does it include brackets for low and standard profile?
Yes, both types of brackets are supplied to ensure installation on conventional towers as well as SFF equipment or rack servers.
