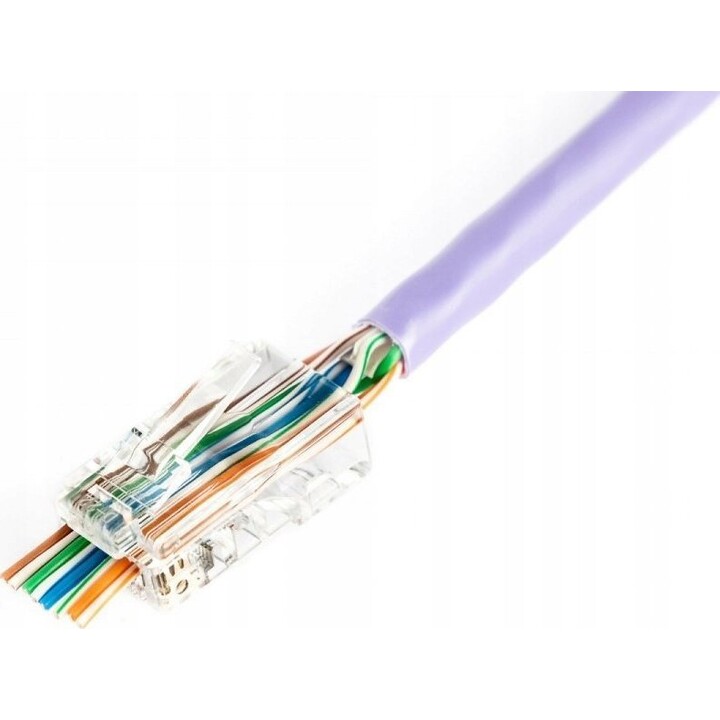

RJ45 plug cat.5e X-ML-5U-EZ

The ASSMANN RJ45 plug cat.5e X-ML-5U-EZ is a high-quality pass-through connector designed for Cat.5e network cables. Its unshielded construction and gold-plated contacts ensure low resistance and minimal signal loss, providing stable and fast network connections for both home LANs and demanding business installations.

The pass-through design simplifies cable termination: conductors can be fully inserted and verified before crimping, reducing installation time and the risk of wiring errors. The plug supports both solid and stranded cables with AWG 26-24, and is compatible with PoE IEEE 802.3at applications.

Built with a polycarbonate UL94V-0 housing, this RJ45 plug operates reliably in temperatures from -40°C to 70°C. It is an ideal choice for professionals and DIY users who require dependable Ethernet connectivity.

Características principales

• RJ45 (8P8C) pass-through plug
• Unshielded version
• Cat.5e support
• PoE IEEE 802.3at compatible
• For solid/stranded cables AWG 26-24
• Maximum conductor diameter: 0.93 – 1.04 mm
• Gold-plated contacts (15 µin)
• Polycarbonate UL94V-0 housing
• Operating temperature: -40°C to 70°C

Especificaciones

Preguntas frecuentes

Is this connector compatible with both solid and stranded cables?

Yes, the ASSMANN RJ45 plug cat.5e X-ML-5U-EZ is designed for solid and stranded cables with AWG 26-24.

Does it support Power over Ethernet (PoE)?

Yes, it supports PoE IEEE 802.3at.

What is the maximum conductor diameter it accepts?

The maximum conductor diameter is 0.93 – 1.04 mm.

What is the operating temperature range?

The operating temperature range is -40°C to 70°C.

Es para ti si...

• You need a reliable Cat.5e RJ45 plug for network installations.
• You want a pass-through design for easier and faster termination.
• You require PoE IEEE 802.3at support.
• You work with solid or stranded cables in AWG 26-24.
• You value gold-plated contacts and a durable polycarbonate housing.
