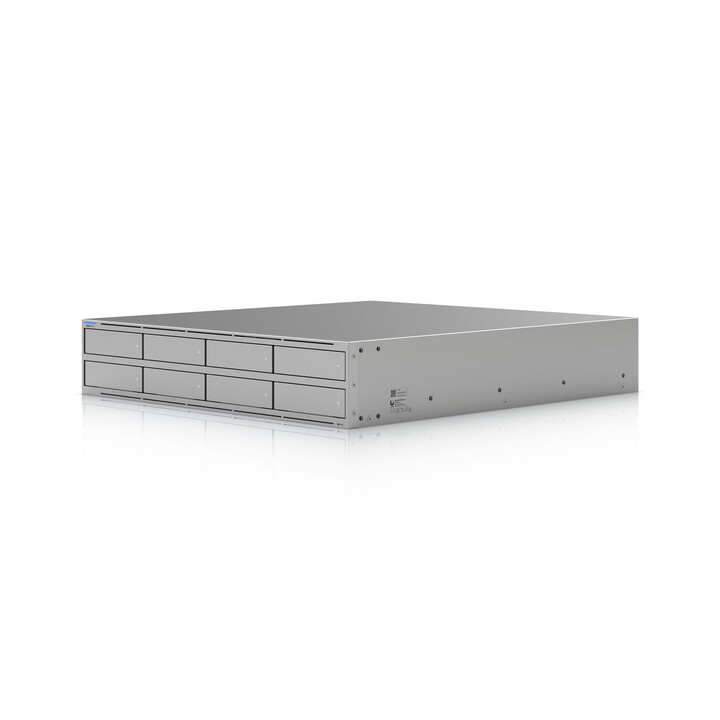

UNAS-Pro-8 Server

The Ubiquiti UNAS-Pro-8 is a 2U rack-mount NAS designed for large-scale file storage and sharing. It combines eight 2.5/3.5" HDD bays with two M.2 NVMe SSD cache slots to deliver faster access and lower latency. With 10 Gbps networking and high-availability features, it is built for demanding storage environments.

Powered by a Quad-Core ARM Cortex-A57 processor at 2.0 GHz, the UNAS-Pro-8 supports RAID and hot-swapping for continuous operation. Its dual hot-swappable 550W AC/DC power modules and dual AC inputs provide redundancy, while the 2U rack form factor (442.4 x 480 x 87.4 mm) fits standard racks.

Connectivity includes one 10GBase-T port and two SFP ports, enabling flexible high-speed network integration. The system also features two M.2 expansion slots for NVMe cache, helping to accelerate read/write performance for frequently accessed data.

Características principales

• 8 x 2.5/3.5" hot-swap HDD bays
• 2 x M.2 NVMe SSD cache slots
• Quad-Core ARM Cortex-A57 at 2.0 GHz
• 1 x 10GBase-T and 2 x SFP network ports
• RAID support (RAID 10 (1+0))
• Dual hot-swappable 550W AC/DC power modules
• 2U rack-mount chassis (442.4 x 480 x 87.4 mm)

Especificaciones técnicas

Preguntas frecuentes

Does the UNAS-Pro-8 support hot-swapping?

Yes, it supports hot-swapping for both drives and power modules.

What RAID levels are supported?

RAID 10 (1+0) is supported.

How many drives can be installed?

It has 8 bays for 2.5/3.5" HDDs and 2 M.2 slots for NVMe SSDs.

What network connectivity does it offer?

It includes 1 x 10GBase-T and 2 x SFP ports.

Es para ti si...

• Necesitas almacenamiento a gran escala con alta disponibilidad.
• Buscas acelerar el acceso a datos con caché NVMe.
• Requieres redundancia de energía y discos hot-swap.
• Quieres integrar almacenamiento en red de 10 Gbps.
