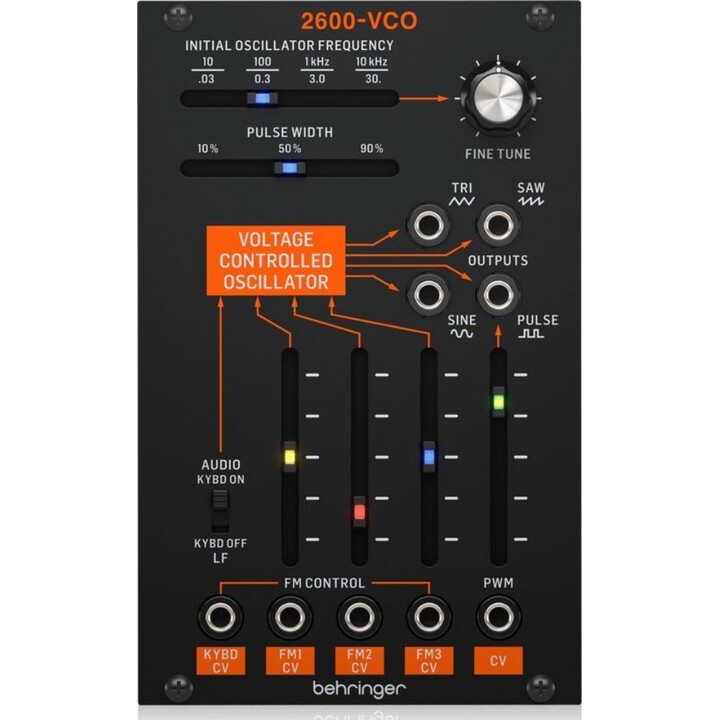

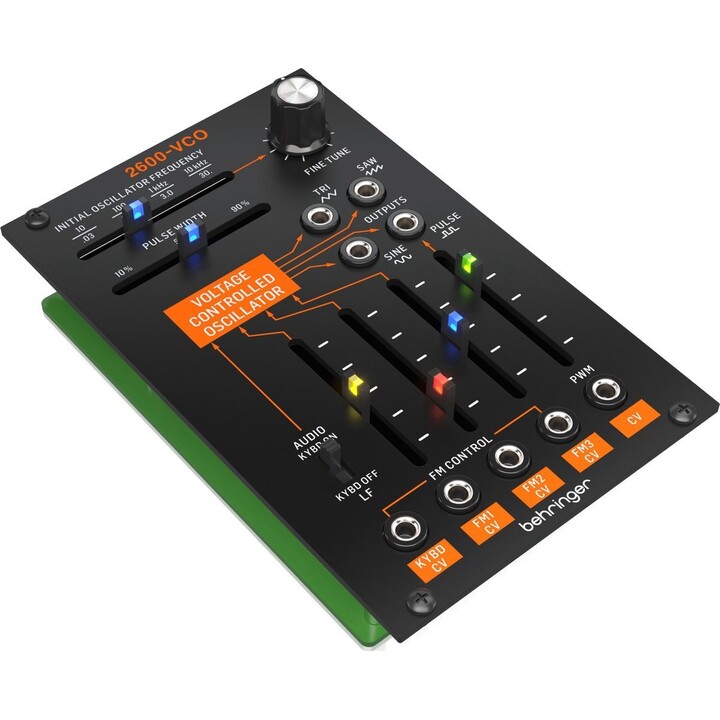

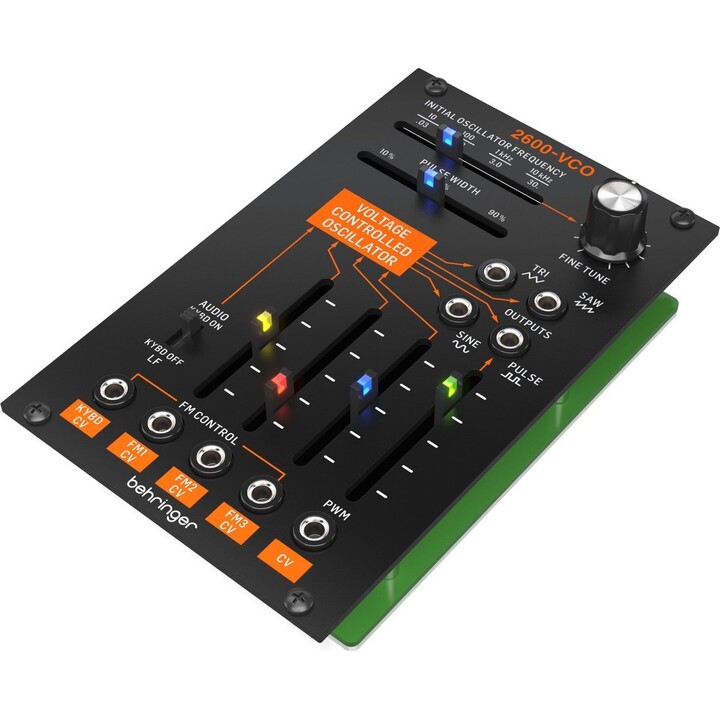

Behringer 2600-Vco Modular Synthesizer Module
- Authentic VCO based on ARP 2600 circuitry
- Waveforms: sawtooth, pulse (with PWM), triangle
- Frequency modulation (FM) and hard sync inputs
- Pulse width modulation (PWM) via CV or manual
- Eurorack format: 10HP, 20mA +12V, 10mA -12V
Behringer 2600-Vco Modular Synthesizer Module
The Behringer 2600-Vco is a faithful reproduction of the legendary ARP 2600 voltage-controlled oscillator in a compact Eurorack module. It delivers the classic sawtooth, pulse, and triangle waveforms with authentic analog character. The module features pulse width modulation (PWM) controllable via CV or manual knob, frequency modulation (FM) input, and hard sync for aggressive oscillator locking.
Designed for seamless integration into any Eurorack system, the 2600-Vco occupies 10HP and requires standard Eurorack power (20mA on +12V, 10mA on -12V). Its robust build and precise controls make it ideal for both vintage-inspired patches and modern sound design. Whether you're recreating classic synth tones or exploring new sonic territories, this module delivers the unmistakable warmth and versatility of the original ARP VCO.
| Type | Voltage-Controlled Oscillator (VCO) |
| Waveforms | Sawtooth, Pulse (with PWM), Triangle |
| Pulse Width Modulation | Manual knob + CV input (0-5V) |
| Frequency Modulation | CV input with attenuator |
| Sync | Hard sync input |
| Frequency Range | ~0.1 Hz to 20 kHz |
| CV Inputs | 1V/Oct, FM, PWM |
| Output Level | 10Vpp (typical) |
| Form Factor | Eurorack, 10HP |
| Power Consumption | 20mA (+12V), 10mA (-12V) |
| Depth | 30mm (including power connector) |
| Brand | behringer |
|---|---|
| Country | China |
| Address of origin | Eisengießerei Industriestraße 23. D-74912 Kirchardt. |
| EU responsible person | Behringer GmbH |
| Address | Muhlstrasse 37, Willich, Germany, 47877 |
| [email protected] | |
| Phone | 4921585829149 |
