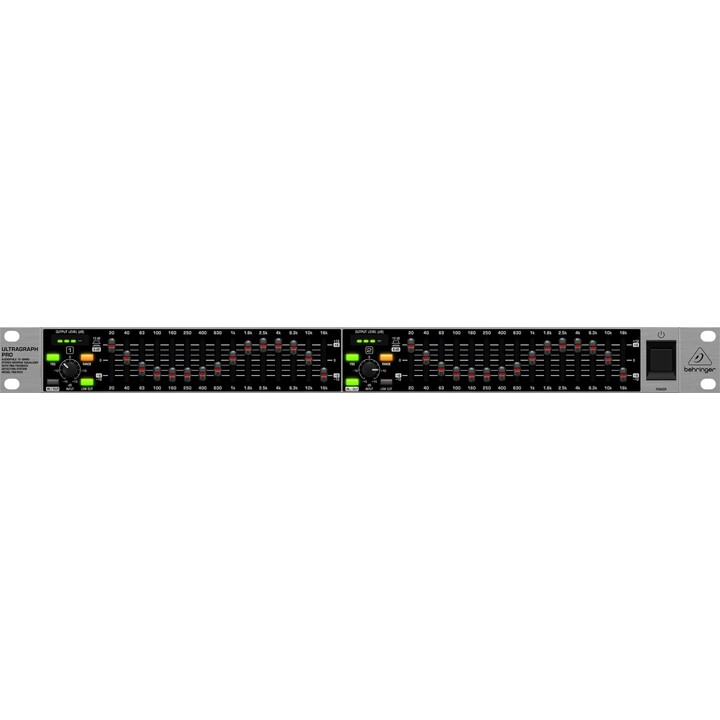

Behringer FBQ1502 sound equalizer
- 31-band stereo graphic equalizer with 2/3-octave ISO centers
- FBQ Feedback Detection system instantly identifies problem frequencies
- ±12 dB cut/boost range per band with center-detent sliders
- Servo-balanced 1/4" TRS and XLR inputs and outputs
- Subsonic filter (30 Hz) and bypass switch per channel
Behringer FBQ1502 sound equalizer
The Behringer FBQ1502 is a professional 31-band stereo graphic equalizer designed for precise sound shaping in live sound, recording studios, and installed systems. It features the innovative FBQ Feedback Detection system that instantly identifies feedback frequencies by illuminating the corresponding LED on the slider, allowing quick and accurate notching. With 2/3-octave ISO center frequencies and ±12 dB cut/boost per band, the FBQ1502 provides detailed tonal control.

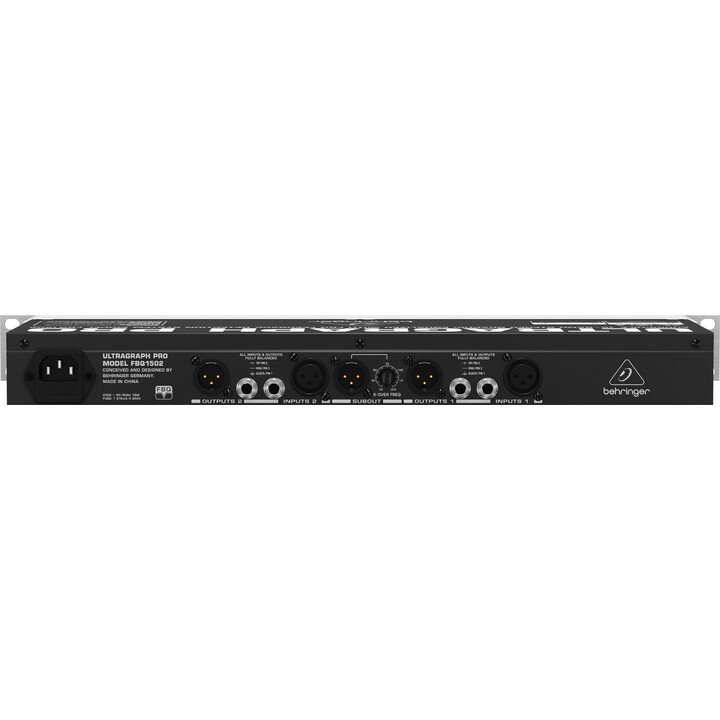

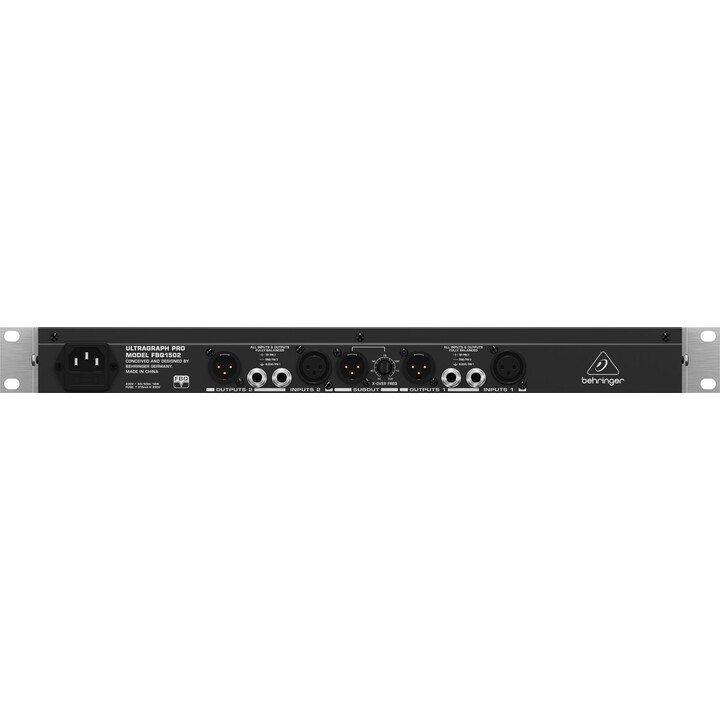

Built with high-quality components, the FBQ1502 offers servo-balanced 1/4" TRS and XLR connectors for reliable signal integrity over long cable runs. Each channel includes a 30 Hz subsonic filter to eliminate low-frequency rumble, a bypass switch for A/B comparison, and an overall level control. The rugged steel chassis and center-detent sliders ensure durability and precise adjustments in demanding environments.
| Type | 31-band stereo graphic equalizer |
| Frequency Bands | 31 bands per channel, 2/3-octave ISO centers (20 Hz - 20 kHz) |
| Cut/Boost Range | ±12 dB per band |
| Feedback Detection | FBQ (Feedback Detection) with LED indication |
| Inputs | Servo-balanced 1/4" TRS and XLR (per channel) |
| Outputs | Servo-balanced 1/4" TRS and XLR (per channel) |
| Subsonic Filter | 30 Hz, -12 dB/octave (per channel) |
| Bypass | Hard-wire bypass switch per channel |
| Level Control | Overall level control per channel |
| Frequency Response | 20 Hz - 20 kHz, ±0.5 dB |
| Signal-to-Noise Ratio | > 90 dB (unweighted, 0 dBu) |
| Total Harmonic Distortion | < 0.005% (20 Hz - 20 kHz) |
| Power Supply | Internal, 100-240 VAC, 50/60 Hz |
| Dimensions (HxWxD) | 44 x 483 x 170 mm (1.75 x 19 x 6.7") |
| Weight | 2.4 kg (5.3 lbs) |
-
