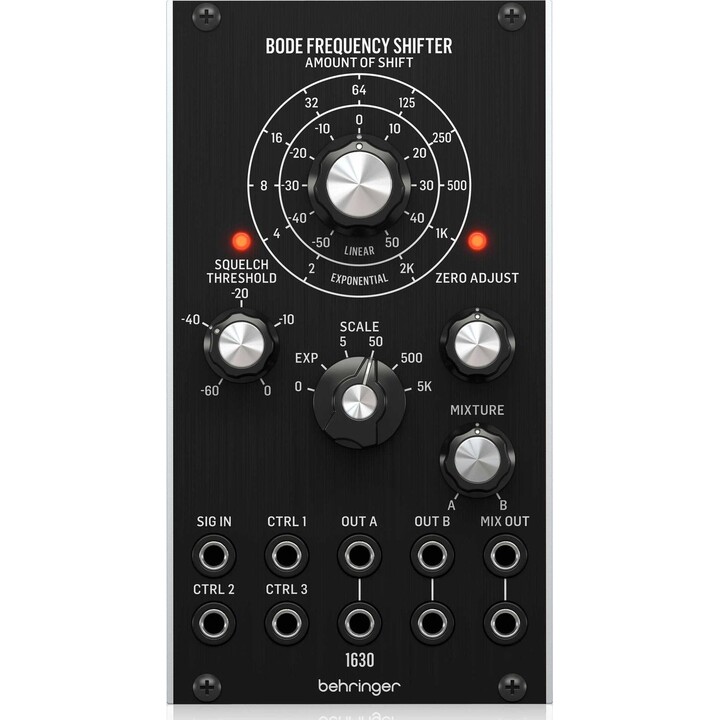

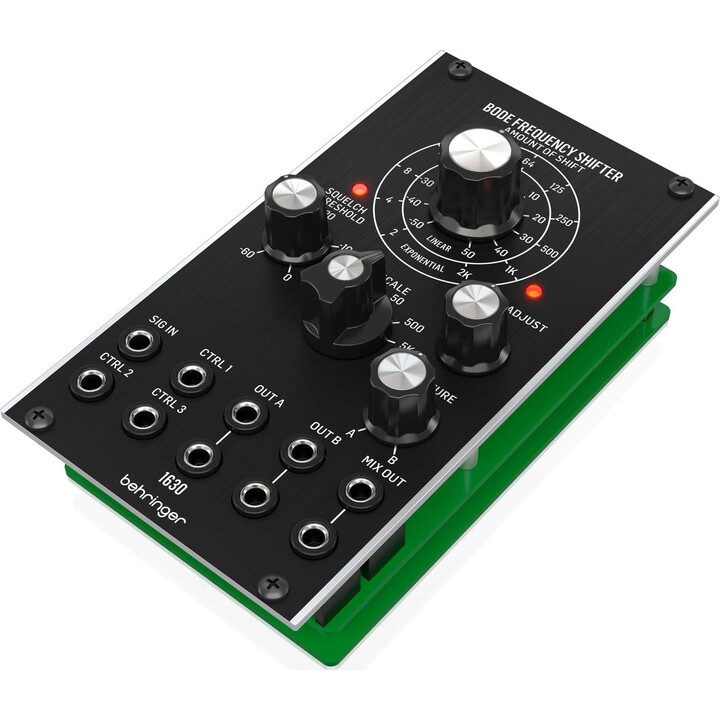

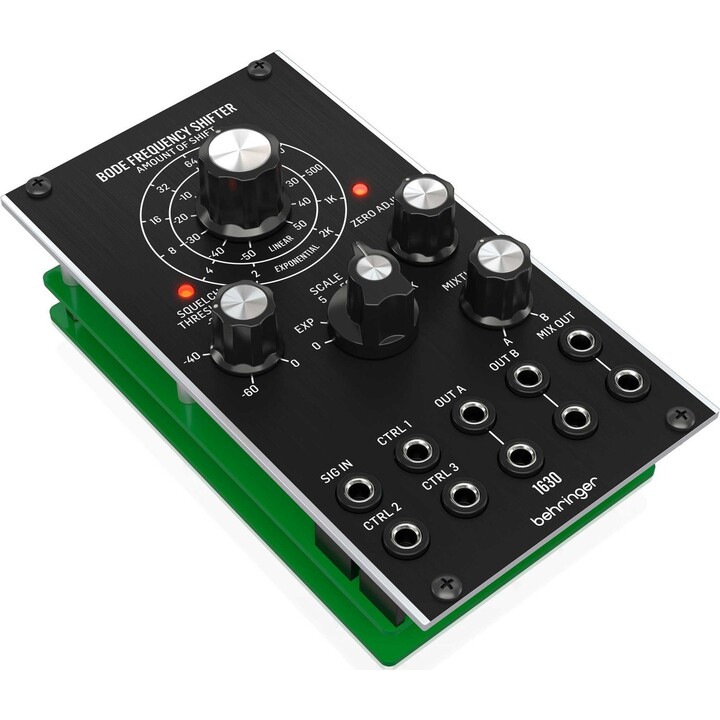

The Behringer Bode Frequency Shifter 1630 is an authentic recreation of the legendary 1970s Bode frequency shifter module. It precisely shifts the entire frequency spectrum of any input signal from -5 to +5 kHz, covering the audio range of 30 Hz to 16 kHz. The module features a state-of-the-art voltage-controlled quadrature oscillator, ensuring accurate and stable frequency shifting.
With linear and exponential shift control, you can vary the amount of shift with precision. The variable squelch threshold minimizes background noise, while total harmonic distortion and unwanted modulation products remain below 1%. This Eurorack module occupies 14 HP and requires 110 mA on both +12 V and -12 V rails, making it a powerful addition to any modular synthesizer setup.
| Type | Frequency Shifter |
| Frequency Shift Range | -5 kHz to +5 kHz |
| Input Frequency Range | 30 Hz - 16 kHz |
| Oscillator | Voltage-Controlled Quadrature |
| Control | Linear and Exponential |
| Squelch | Variable Threshold |
| Distortion | < 1% THD |
| Form Factor | Eurorack |
| Width | 14 HP |
| Power Consumption | 110 mA (+12 V), 110 mA (-12 V) |
