Behringer 130 Double Vac Modules
- Dual voltage-controlled amplifier (VCA) module
- Eurorack format, 10HP width
- Power consumption: +12V: 20mA, -12V: 20mA
- Two independent VCA channels with CV inputs
- Compact design for space-saving setups
Behringer 130 Double Vac Modules

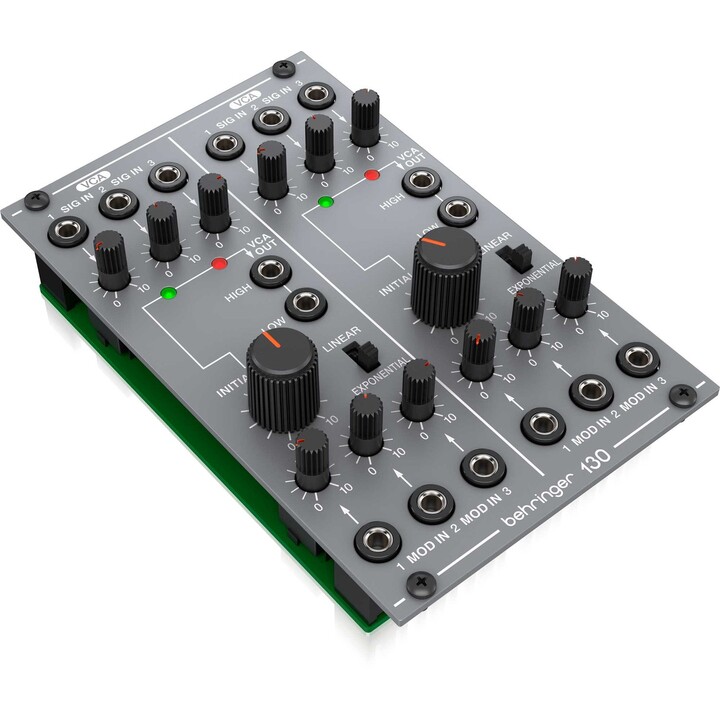

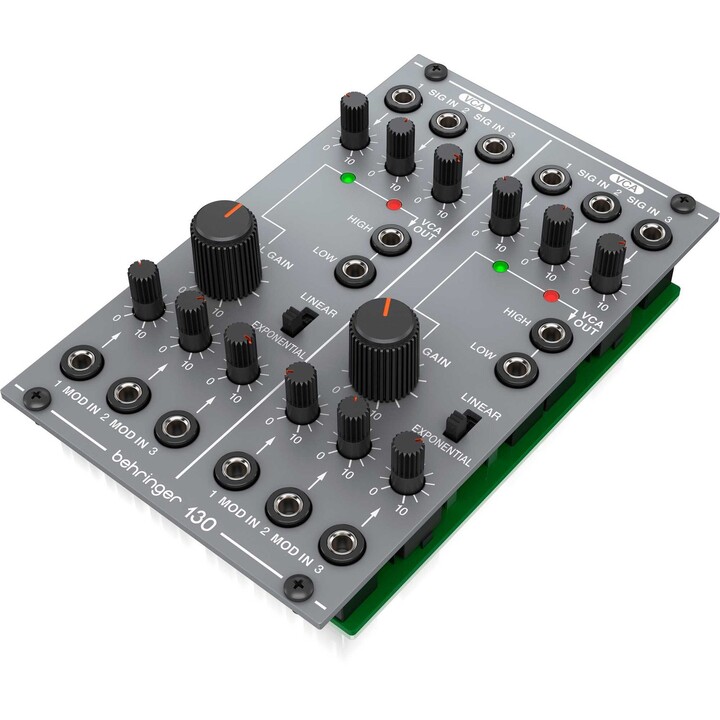

The Behringer 130 Double Vac Modules bring classic dual VCA functionality to your Eurorack system. Based on the legendary design, this module offers two independent voltage-controlled amplifiers with individual CV inputs, allowing precise dynamic control over audio and CV signals. Each channel features exponential response, ideal for creating natural-sounding amplitude modulation and envelope shaping.
With a compact 10HP footprint and low power consumption (20mA on both +12V and -12V rails), the 130 Double Vac Modules integrate seamlessly into any modular setup. The module includes manual gain controls and LED indicators for each channel, providing visual feedback of signal levels. Whether you need to control volume, create tremolo effects, or process CV signals, this dual VCA is a versatile tool for sound design.
| Type | Dual Voltage-Controlled Amplifier (VCA) |
| Format | Eurorack |
| Width | 10HP |
| Power Consumption | +12V: 20mA, -12V: 20mA |
| CV Inputs | 2 (one per channel) |
| Audio Inputs | 2 (one per channel) |
| Outputs | 2 (one per channel) |
| Response | Exponential |
| Controls | Manual gain knobs per channel |
| Indicators | LED per channel |
