Evolis 23LAR5022CL: CL Multi ISO Desktop USB Smart Card Reader Contactless/Contact EMV

HID OMNIKEY 5022 CL Multi-ISO Desktop USB Reader (23LAR5022CL)

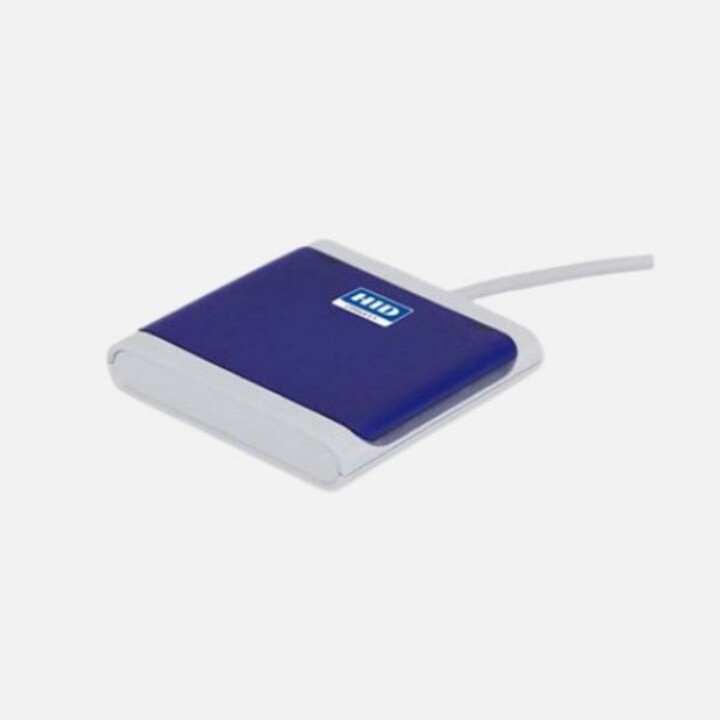

The HID OMNIKEY 5022 CL (reference 23LAR5022CL) is a professional-grade, contactless smart card reader designed for secure desktop environments. Operating at the 13.56 MHz frequency, it is fully interoperable with a wide range of smart card technologies, tags, and NFC-enabled devices. This reader is a key component of the HID Global ActivID Tap Authentication solution, which enhances security by allowing users to generate One-Time Passwords (OTP) with a simple tap of their card. Its compact, small-form-factor design makes it ideal for restricted workspace environments such as healthcare stations, government offices, and corporate desktops where secure "tap-and-go" login is required.

Technical Specifications

* **Product Type:** Contactless Smart Card Reader.

* **Frequency:** 13.56 MHz (High Frequency).

* **Interface:** USB 2.0 Type-A (Full Speed).

* **Part Number:** 23LAR5022CL / OMNIKEY 5022.

* **Transmission Speed:** Up to 848 kbps (depending on card type).

* **Standards Compliance:** ISO 14443 A/B, ISO 15693.

Compatibility and Technology Support

The OMNIKEY 5022 supports a diverse range of credentials, including:

* **HID Credentials:** iCLASS®, iCLASS SE®, Seos® (read-only), and HID Trusted Tag®.

* **MIFARE Family:** MIFARE Classic®, MIFARE DESFire® EV1/EV2, and Ultralight®.

* **NFC:** Supports NFC Forum Tag types 1, 2, 3, 4, and 5.

* **Other:** FIDO2, T=CL, and FeliCa™ (UID only).

Operational Features

* **Driverless Setup:** Features native CCID support, making it "Plug and Play" for Windows, macOS, and Linux operating systems without requiring additional drivers.

* **Security Integration:** Tested and integrated with ActivID® ActivClient and ActivID Applets for advanced identity verification.

* **Multi-ISO Versatility:** A single device capable of reading various high-frequency standards, reducing the need for multiple readers in mixed-credential environments.

* **Status Indicators:** Integrated LED signals the current state of the reader (e.g., power-on, successful card read).

Physical Characteristics

* **Dimensions:** 59 mm x 59 mm x 11.4 mm.

* **Weight:** ~40 g.

* **Cable Length:** 150 cm (59 inches).

* **Color:** Standard Grey/Dark Blue (Optional color kits available: blue, orange, red, green).

Reliability and Certifications

* **Durability:** Rated for continuous professional use in high-traffic authentication points.

* **Certifications:** CE, FCC, UL, RoHS, WEEE, and Microsoft WHQL.

* **Environmental:** Operates effectively between 0°C and 70°C.
