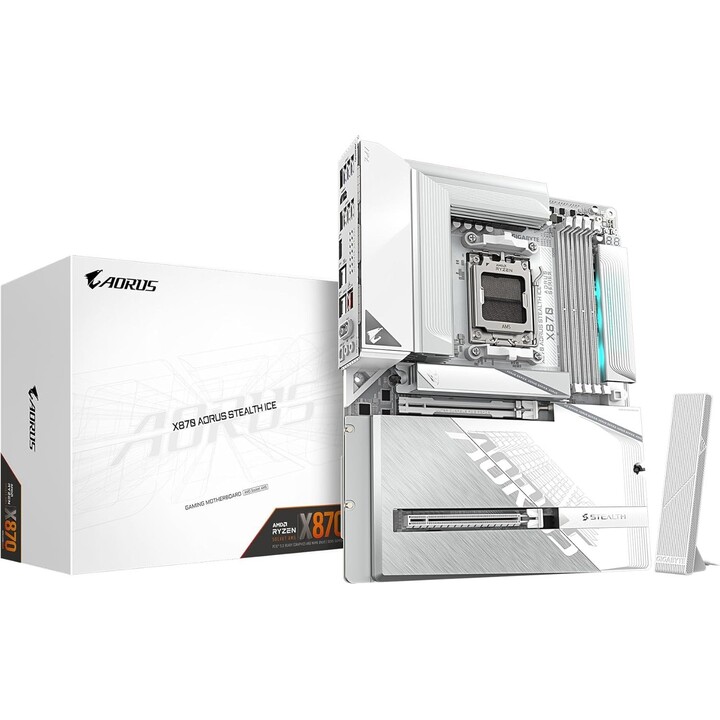

Gigabyte X870 AORUS STEALTH ICE Socket AM5 AMD X870 Ryzen 9000 Series ATX Motherboard White

Chipset and CPU

• AMD X870 chipset, socket AM5 for Ryzen 7000/8000/9000 series, with X3D Turbo Mode 2.0 for automatic optimisation of X3D CPUs (+18% performance in CPU-bound games).

• 16+2+2 phase digital twin VRM (110A DrMOS), advanced VRM Thermal Armor cooling for CPUs up to 250W+ TDP stable.

Memory

• 4 dual-channel DDR5 slots up to 256GB (64GB per DIMM), OC up to 8200 MT/s with AMD EXPO™ and XMP; UD Base Plate for better dissipation.

Storage and expansion

• 4 M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) with M.2 EZ-Flex (Gigabyte patent), Thermal Guard Ext/L and RAID 0/1/5/10.

• PCIe UD Slot 5.0 x16 (10x stronger, better cooling), additional PCIe 4.0 x4; basic multi-GPU compatible.

Network connectivity

• Wi-Fi 7 (Qualcomm QCNCM865, tri-band 2.4/5/6 GHz up to 5.8 Gbps) with Bluetooth 5.4 and WIFI EZ-Plug.

• Realtek 5GbE LAN (5/2.5/1 Gbps) with AI optimisation.

USB and rear I/O ports

• 2x USB4 Type-C (40 Gbps, DP-Alt up to 4K@240Hz), multiple USB 3.2 Gen2/Gen1/2.0; front USB-C 20 Gbps.

• Video: HDMI (for Ryzen iGPU), optical SPDIF; stealth design hides cables for clean aesthetics.

Audio and cooling

• Realtek ALC1220 8-channel HD audio with shielding.

• Premium cooling: VRM Thermal Armor Advanced, M.2 Thermal Guard, RGB/ARGB headers (3x ARGB, 1x RGB); EZ-Debug LED.

Design and extras

• ATX form factor (305x244 mm), ice white with subtle ARGB lighting; high chassis compatibility (Project STEALTH).

• Pre-installed Wi-FiBIOS driver, onboard buttons, Q-Flash; ideal for competitive gaming and showpiece builds.
