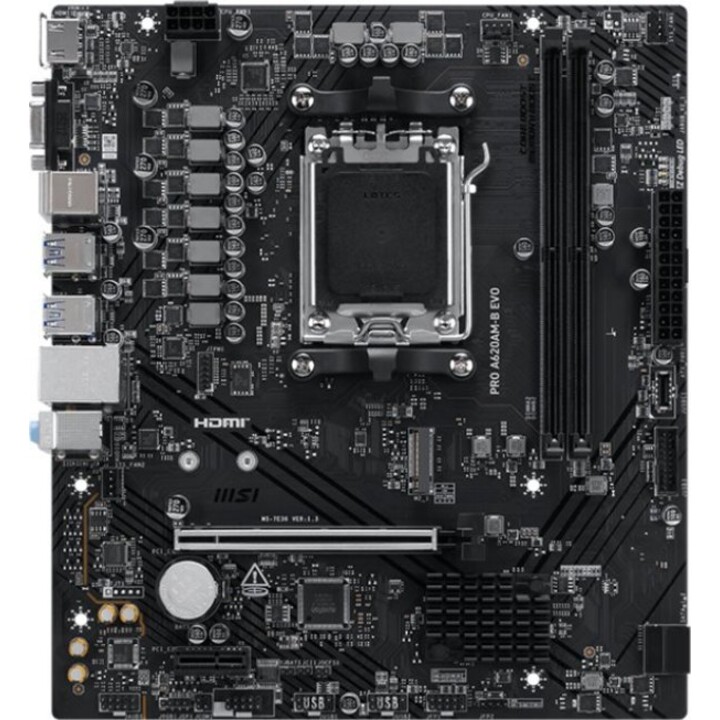

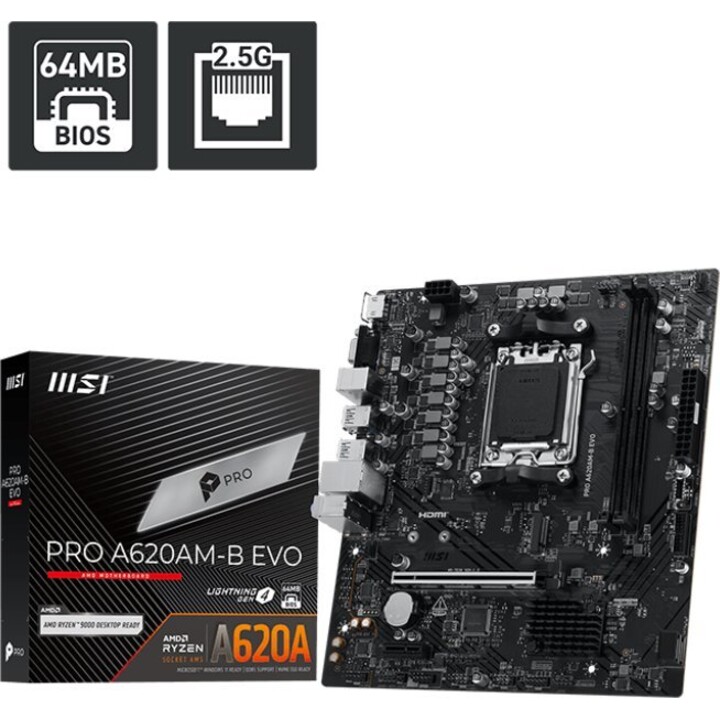

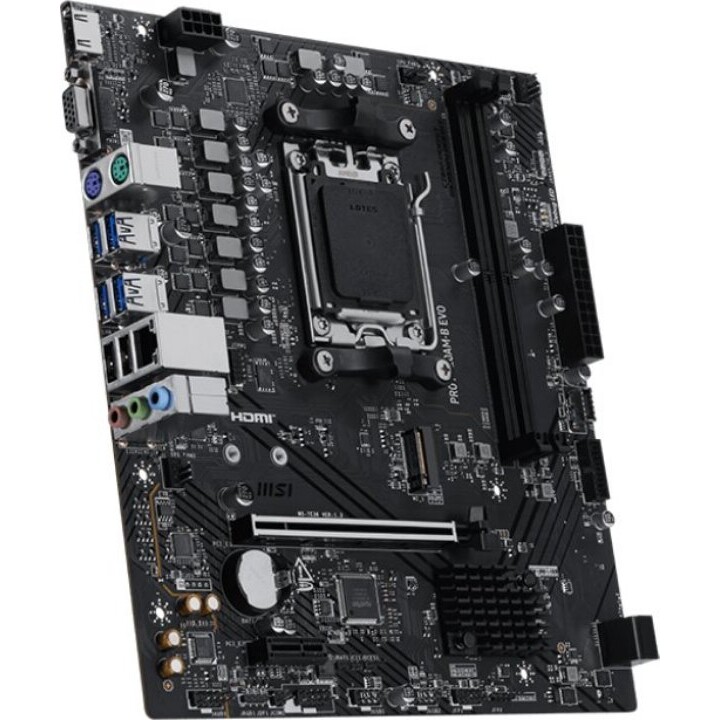

MSI PRO A620AM-B EVO Socket AM5
- Socket AM5 for AMD Ryzen 7000 Series Processors
- DDR5 Memory Support, Dual Channel, up to 6400+ MHz (OC)
- PCIe 4.0 x16 Slot for Graphics Card
- M.2 Gen4 x4 Slot for Ultra-Fast SSDs
- 2.5G LAN, USB 3.2 Gen2 Type-A and Type-C
MSI PRO A620AM-B EVO Socket AM5
The MSI PRO A620AM-B EVO is a reliable and feature-rich motherboard designed for AMD Ryzen 7000 series processors on the AM5 platform. It supports DDR5 memory with speeds up to 6400+ MHz (OC) for enhanced system responsiveness. With PCIe 4.0 support, it delivers fast data transfer for graphics cards and storage devices.
This motherboard includes a single M.2 Gen4 x4 slot for high-speed NVMe SSDs, ensuring quick boot times and application loading. Connectivity options include 2.5G LAN for faster networking, USB 3.2 Gen2 ports (Type-A and Type-C) for high-speed peripherals, and HDMI/DisplayPort outputs for integrated graphics. The PRO series focuses on stability and durability, making it suitable for business and productivity builds.
| Socket | AM5 |
| Chipset | AMD A620 |
| Memory Support | DDR5, Dual Channel, 2 DIMMs, up to 6400+ MHz (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 Gen4 x4, 4x SATA 6Gb/s |
| USB Ports (Rear) | 2x USB 3.2 Gen2 (1 Type-A, 1 Type-C), 4x USB 3.2 Gen1, 2x USB 2.0 |
| LAN | Realtek 2.5G LAN |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| Form Factor | Micro-ATX |
| Brand | MSI |
|---|---|
| Country | Taiwan |
| Address of origin | o. 69, Lide Street, Zhonghe District, New Taipei |
| EU responsible person | MSI Computer Europe B.V. |
| Address | Science Park Eindhoven 5706 5692 ER Son, Netherlands |
| [email protected] | |
| Phone | 34902123123 |
