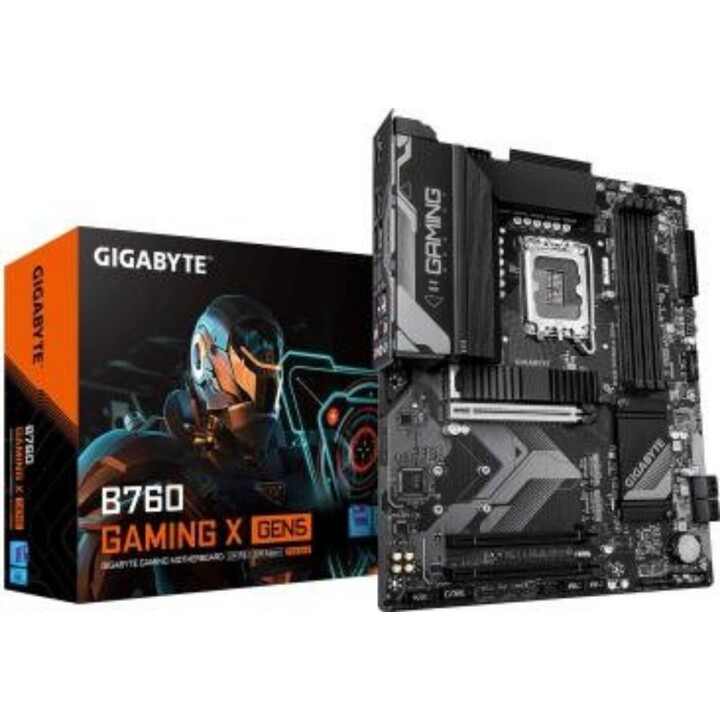

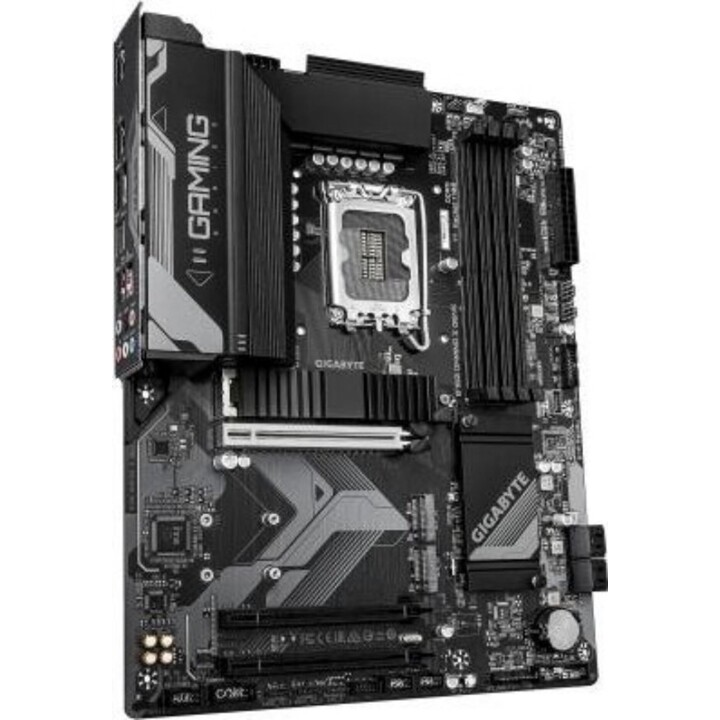

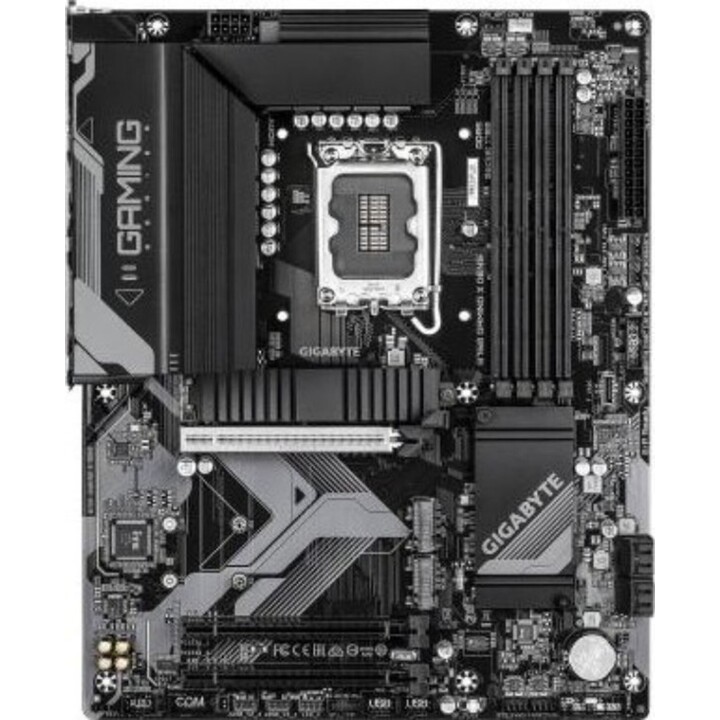

Gigabyte Intel B760 Express Motherboard Lga1700 ATX DDR5 Memory 4 Memory Slots B760Gamingxgen5

Enhance your computing experience with GIGABYTE's renowned AORUS, AERO, and GIGABYTE motherboard series. With innovative designs and advanced features, these motherboards deliver exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series meets your needs and guarantees uncompromising quality and cutting-edge technology.

GIGABYTE B760 GAMING X GEN5 Motherboard Supports 14th Gen Intel Core Processors, 8+1+1 Phase VRM, up to 5600MHz DDR5, 3 x M.2 PCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 2. Processor Manufacturer: Intel, Processor Socket: LGA 1700, Compatible Processor: Intel Celeron?, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported Memory Types: DDR5-SDRAM, Maximum Internal Memory: 256GB, Memory Slots Type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

Processor

Processor manufacturer Intel

Processor socket LGA 1700

Compatible processor Intel Celeron?, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel Pentium?

Supported processor sockets LGA 1700

Memory

supported memory types DDR5-SDRAM

Number of memory slots 4

Type of memory slots DIMM

Memory channels Double channel

ECC Compatibility ECC and non-ECC

Supported memory clock speeds 4400, 4800, 5200, 5600 MHz

Maximum supported memory clock speed 5600 MHz

Maximum internal memory 256 GB

Unbuffered memory Yeah

Maximum internal memory per slot 64 GB

Storage regulators

Supported storage drive types HDD & SSD

Supported storage disk interfaces M.2, PCI Express 4.0, SATA III

Number of supported storage units 7

RAID support Yeah

RAID levels 0, 1, 5, 10

Graphics

Support for parallel processing Not compatible

Maximum resolution 4096 x 2304 Pixels

HDCP Yeah

DirectX version 12.0

Internal I/O

USB 2.0, connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

Number of SATA III connectors 4

S/PDIF output connector Yeah

Front panel audio connector Yeah

Front panel connector Yeah

ATX power connector (24 pin) Yeah

CPU fan connector Yeah

Number of CPU fan connectors 2

Number of chassis fan connectors 4

EPS power connector (8-pin) Yeah

Number of EPS power connectors (8 pins) 1

Number of connectors for water pumps 2

Connector for RGB LED strips Yeah

Number of connectors for RGB LED strips 4

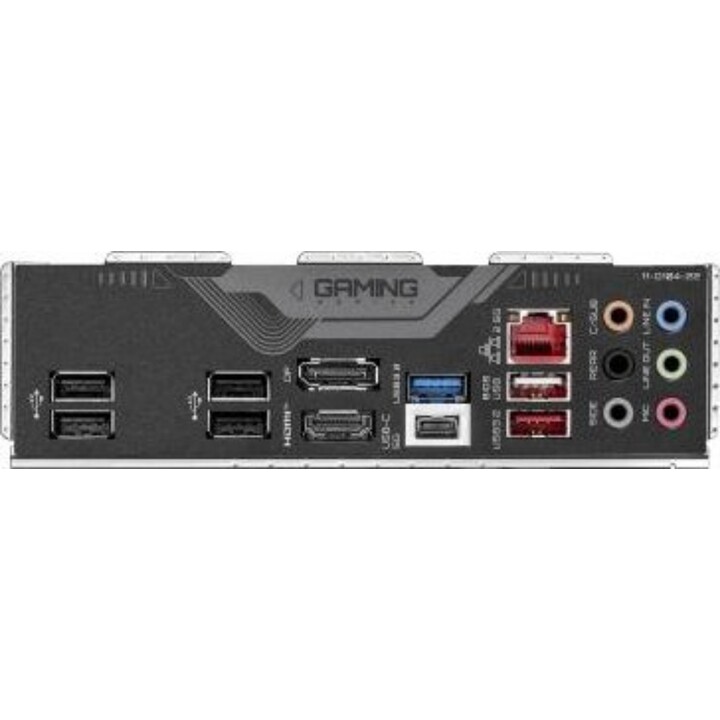

Rear Panel I/O Ports

Number of USB 2.0 ports 5

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 1

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports 1

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 1

Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports 0

Ethernet LAN (RJ-45) number of ports 1

Number of VGA (D-Sub) ports 0

Number of HDMI ports 1

HDMI version 2.1

Number of DVI-D ports 0

Number of DisplayPorts 1

DisplayPort version 1.2

Line input Yeah

Microphone input jack Yeah

Connection

Ethernet Yeah

Ethernet interface type 2.5 Gigabit Ethernet

LAN Controller Realtek RTL8125

Wifi No

Characteristics

Component for PC

Form factor ATX

Chipset family Intel

Chipset Intel B760

Sound chip Realtek ALC897

Audio output channels 7.1 channels

Product color Dark brown

PC Health Monitoring Fan, Temperature, Voltage, Water cooling

Feeding ATX

Supported Windows operating system Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 Gen (3.x) slots 2

PCI Express x16 (Gen 5.x) slots 1

Number of M.2 slots (M) 3

Larger key size of the first M.2 22110

Highest generation of PCI Express from the first M.2 4.0

Larger key size of the second M.2 22110

Highest generation PCI Express of the second M.2 4.0

Larger key size of the third M.2 22110

Highest generation PCI Express M.2 3rd generation 4.0

BIOS

Types of BIOS UEFI AMI

BIOS, memory size 256 MB/s

ACPI version 5.0

Jumper Clear CMOS Yeah

System Management BIOS (SMBIOS) version 2.7

Weight and dimensions

Broad 305 mm

Depth 244 mm

Height 35 mm

Package contents

Screws included Yeah

Included software Norton? Internet Security (OEM version)

Other features

Weight 1.56 kg
