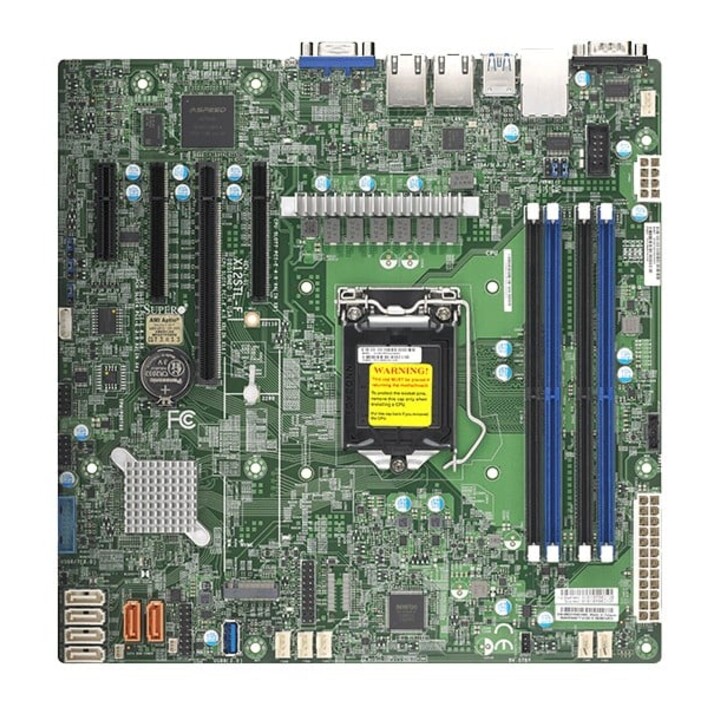

Supermicro X12STL-FB Bulk Intel C252 LGA 1200 (Socket H5) micro ATX

The Supermicro X12STL-FB is a micro ATX server motherboard built on the Intel C252 chipset, supporting LGA 1200 (Socket H5) for 10th Gen Intel Xeon E-2300 and Core processors. It features four DDR4 ECC UDIMM slots with speeds up to 3200MHz and a maximum capacity of 128GB, ensuring reliable memory performance for critical applications. The board includes dual Intel I210-AT GbE LAN ports and a dedicated IPMI 2.0 management port (Realtek RTL8211F) for remote monitoring and control.

Storage connectivity is handled by six SATA3 6Gbps ports from the Intel C252 controller and one M.2 M-Key slot supporting PCIe 3.0 x4 NVMe SSDs. Expansion options include one PCIe 4.0 x16 slot, one PCIe 3.0 x4 (in x8) slot, and one PCIe 3.0 x1 slot. The micro ATX form factor (9.6 x 9.6 inches) makes it suitable for compact server or workstation builds. Additional features include USB 3.2 Gen1 and USB 2.0 ports, TPM header, and comprehensive hardware monitoring via Supermicro's SuperDoctor 5.
