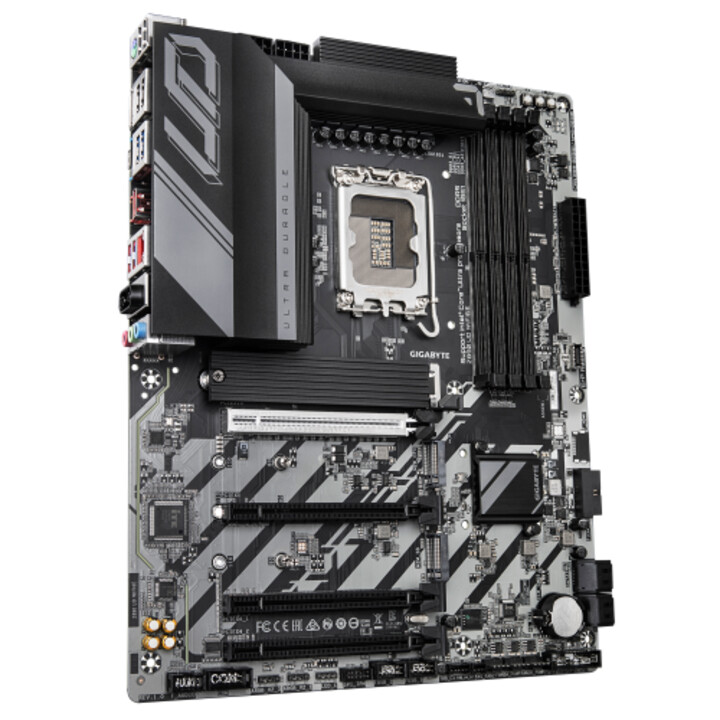

Gigabyte Z890 Ud Wifi6e Motherboard - Supports Intel Core Ultra (2 Series) Cpus, 12+1+2 Phase Vrm, Up to 8800mhz Ddr5 (oc), 1xpc

GIGABYTE Z890 UD WIFI6E BOARD,INTEL,1851,Z890,4DDR5,256GB,1DP+USB4,4SATA3+3M.2,1LAN2.5GB+WIFI6E+BT5.3,7USB3.2,ATX

Specs:

- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported processor: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Maximum internal memory supported by the processor: 256 GB
- Maximum supported memory clock speed: 8800 MHz
- ECC compatibility: Non-ECC
- supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Maximum internal memory: 256 GB
- Memory channels: Dual channel
- Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
- Wi-Fi Standard: Wi-Fi 6E (802.11ax)
- WLAN Controller Model: Intel Wi-Fi 6E AX211
- Ethernet: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wifi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) , Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.3
- USB 2.0, connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- ATX power connector (24 pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- EPS power connector (8-pin): Yes
- 12V electrical connector: Yes
- Connector for RGB LED strips: Yes
- TPM connector: Yes
- Number of SATA connectors: 0
- Total number of SATA connectors: 4
- Number of SATA II connectors: 0
- USB 2.0: 4
- USB 3.2 Gen 1 (3.1 Gen 1): 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type C: 0
- Ethernet LAN ports (RJ-45): 1
- S/PDIF output port: Yes
- VGA (D-Sub) ports: 0
- HDMI ports: 1
- Number of DVI-D ports: 0
- DisplayPort: 2
- Microphone input: Yes
- Number of Thunderbolt ports: 2
- RAID Support: Yes
- Number of supported storage units: 4
- Supported storage disk interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 5, 10
- Number of HDDs supported: 7
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) Slots: 3
- Number of M.2 (M) slots: 3
- BIOS types: UEFI AMI
- BIOS, memory size: 256 MB/s
- ACPI version: 5.0
- Clear CMOS Jumper: Yes
- System Management BIOS (SMBIOS) version: 2.7
- CMOS clear button: Yes
- Desktop Management Interface (DMI) version: 2.7
- DirectX version: 12.0
- Built-in graphics adapter: No
- Product colour: Black
- Chipset family: Intel
- Chipset: Intel Z890
- Form factor: ATX
- Audio output channels: 7.1 channels
- Component for: PC
- Supported Windows operating system: Windows 11 x64
- PC Health Monitoring: Fan, Temperature, Voltage
- Width: 305 mm
- Depth: 244 mm
- Package width: 335 mm
- Package depth: 270 mm
- Package height: 80 mm
- Weight: 1.78 kg
- Package weight: 2.02 kg
- Height: 35 mm
- Number of mSATA ports: 0
- Batteries included: Yes
- Software included: Norton? Internet Security (OEM version)LAN bandwidth management software
- Warranty period: 3 year(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Cells: 1
- Battery type: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Country of origin: China
- Quantity per shipping box: 1 piece(s)
