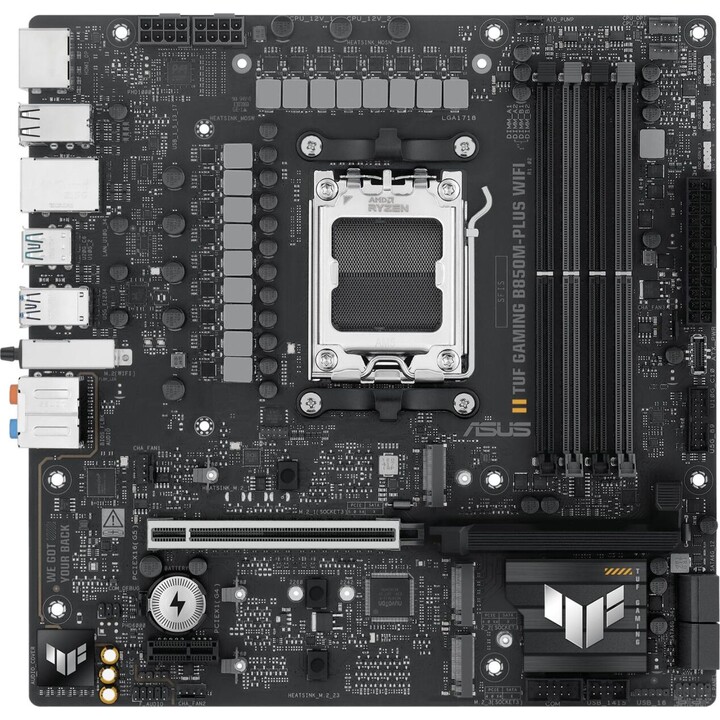

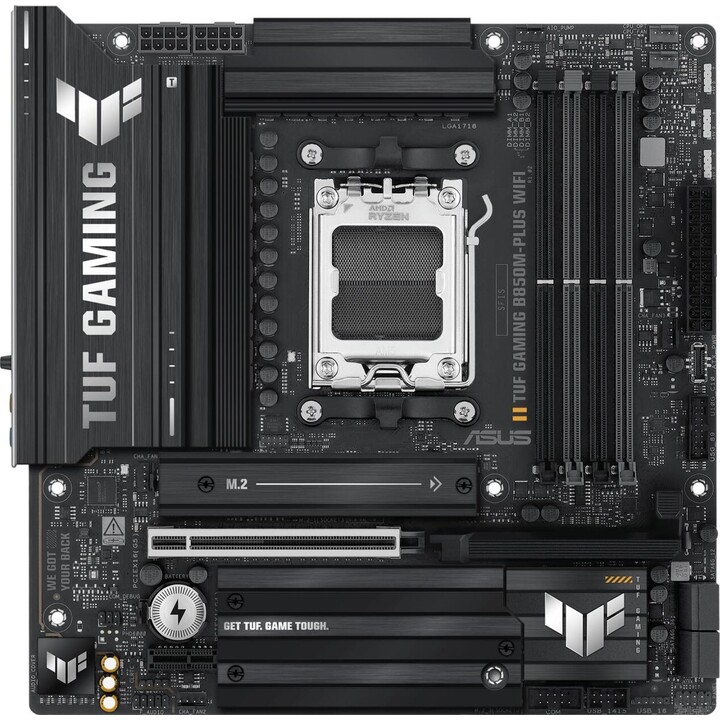

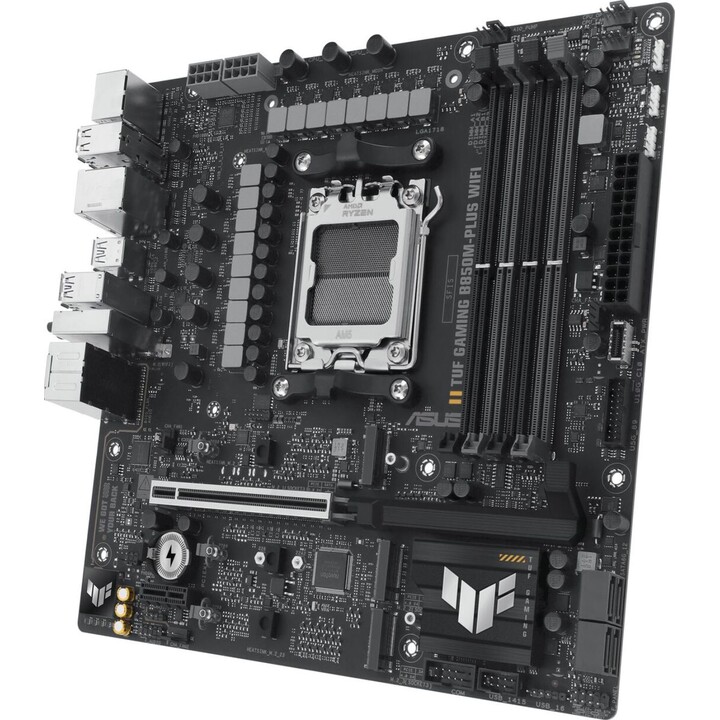

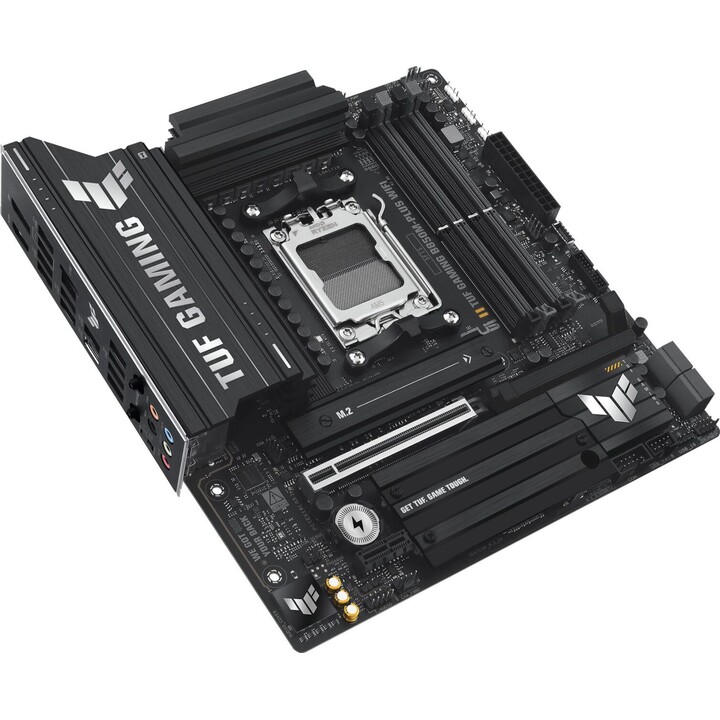

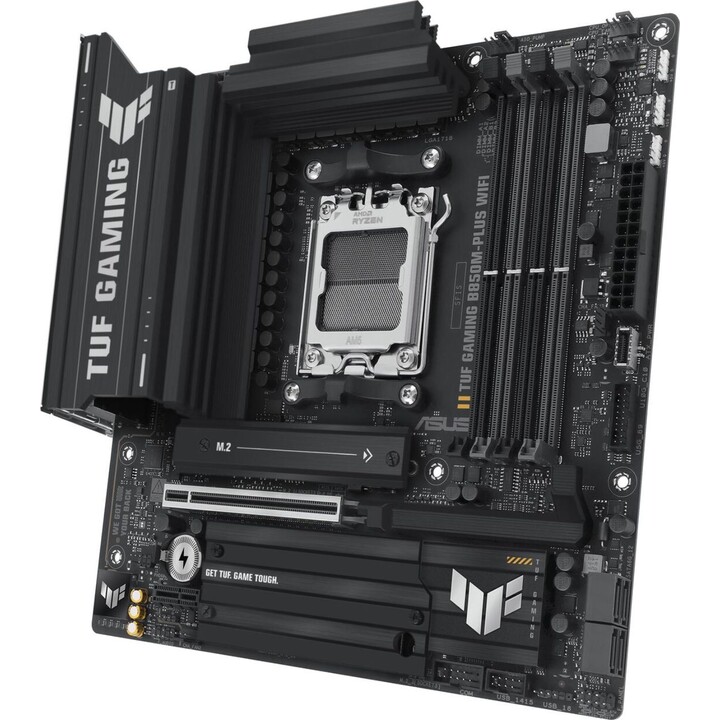

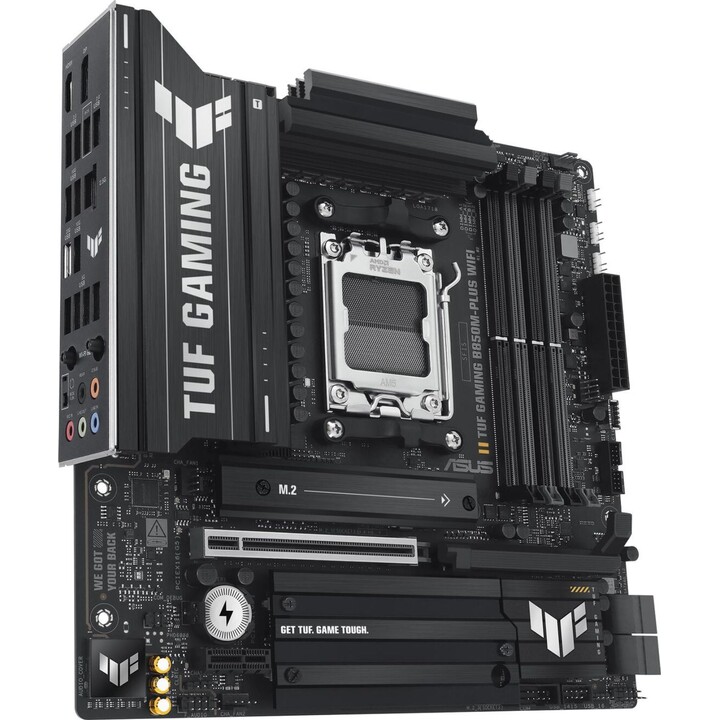

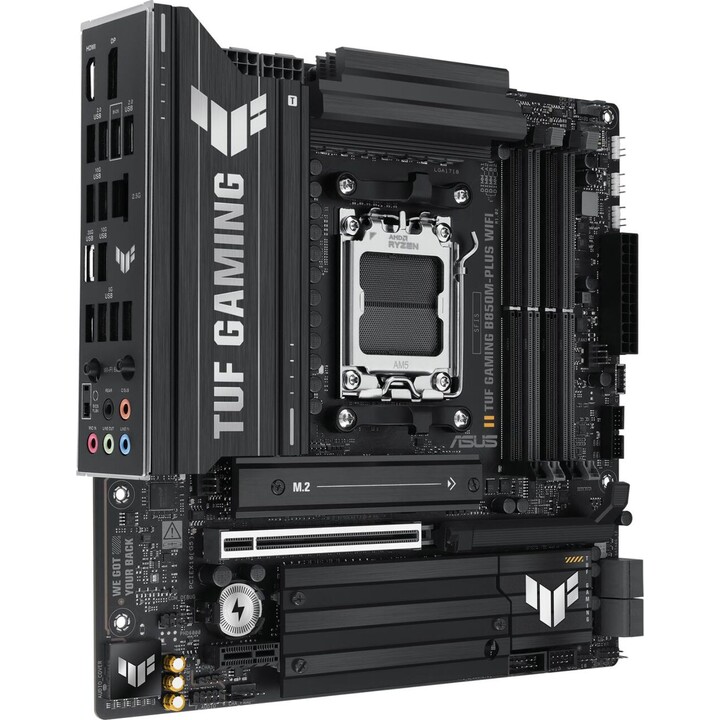

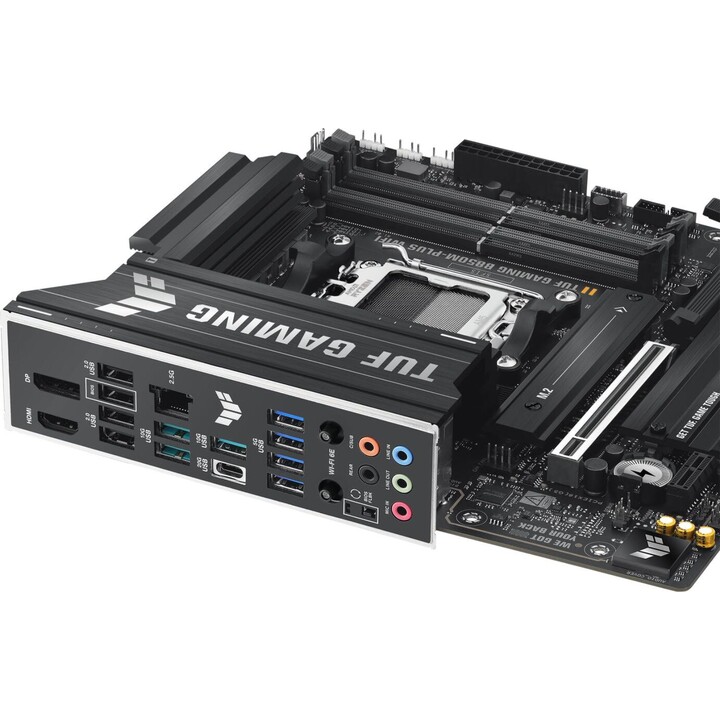

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Socket AM5 micro ATX
Reference:
90MB1IY0-M0EAY0
EAN:
4711387764916
Condition:
New
Price:
€236.93
VAT included
Without tax:
€195.81
The ASUS TUF GAMING B850M-PLUS WIFI is a micro ATX motherboard featuring the AMD B850 chipset and AM5 socket, supporting AMD Ryzen 7000, 8000, and 9000 series processors. It offers DDR5 memory support up to 192 GB, Wi-Fi 6E, Bluetooth 5.3, multiple USB 3.2 ports, and extensive expansion slots including PCIe Gen 5 and M.2 slots for high-speed storage. Ideal for gaming and high-performance builds.
Characteristics
Supported Windows operating system
Windows 11, Windows 10 x64
Sound chip
Realtek ALC1220P
Audio output channels
7.1 channels
Chipset Family
Form factor
micro ATX
Chipset
AMD B850

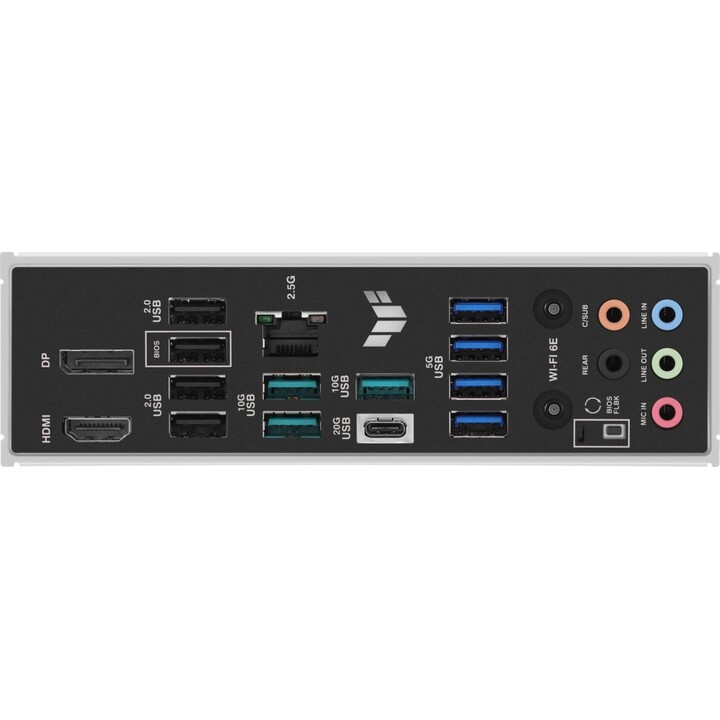

Rear Panel I/O Ports
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
4
Number of USB 2.0 ports
4
Ethernet LAN (RJ-45) ports number
1
Number of HDMI ports
1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
3
Number of DisplayPorts
1
WiFi-AP antenna connector
1
Number of USB 3.2 Gen 2 portsx2 Type-C
1
Packaging
Package width
275 mm
Package height
67.5 mm
Package depth
275 mm
Package weight
1.68 kg
Connection
Wi-Fi standard
Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Ethernet
Yeah
Bluetooth version
5.3
Wifi
Yeah
Bluetooth
Yeah
Expansion slots
PCI Express x16 (Gen 4.x) Slots
1
PCI Express x16 (Gen 5.x) Slots
1
Number of M.2 slots (M)
3
PCI Express x1 (Gen 4.x) Slots
1
3rd M.2 largest key size
2280
1st largest M.2 key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
Memory
Type of memory slots
DIMM
Memory Channels
Double channel
supported memory types
DDR5-SDRAM
Unbuffered memory
Yeah
Maximum internal memory
192 GB
Number of memory slots
4
ECC compatibility
ECC and non-ECC
Storage regulators
Number of supported storage units
7
RAID Support
Yeah
RAID Levels
1, 0, 10, 5
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage disk interfaces
M.2, SATA III
Processor socket
AM5 socket
Supported processor sockets
AM5 socket
Supported processor
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer
AMD
Internal I/O
CPU fan connector
Yeah
Number of COM connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ATX power connector (24 pin)
Yeah
Number of chassis fan connectors
3
12V electrical connector
Yeah
S/PDIF, output connector
Yeah
Front panel audio connector
Yeah
USB 2.0, connectors
2
Front panel connector
Yeah
Chassis intrusion connector
Yeah
Number of SATA III connectors
4
BIOS
Types of BIOS
UEFI AMI
Package contents
Cables included
SATA
Screws included
Yeah
Antenna included
Yeah
Weight and dimensions
Depth
244 mm
Broad
244 mm
Graphics
Support for parallel processing
Not supported
Other features
Weight
1.2 kg
Security notice
Warnings
Do not disassemble to avoid damage to internal components and loss of warranty.
-
